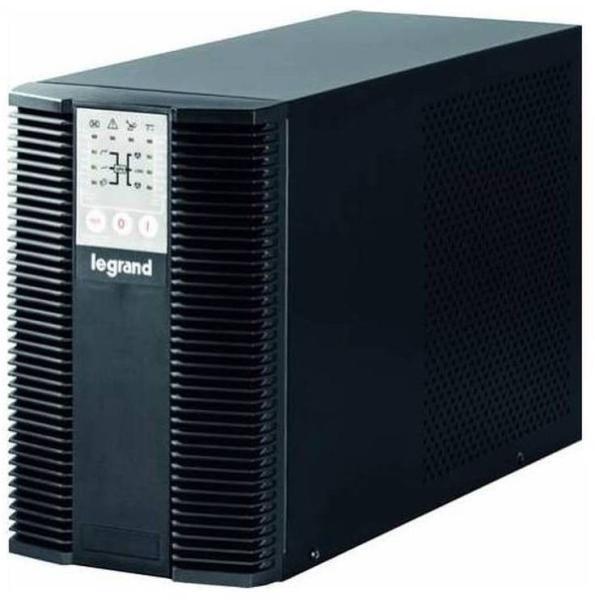

UPS Legrand Keor LP FR On-Line Dubla Conversie 3000VA 2700W, 6x IEC C13 si 2x French/B, RS232 port, 6pcs 12V 7.2Ah, dimensiuni 322 x 189 x 444mm;

SKU: 000000000000310159

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Original price was: 3.872,99 lei.Current price is: 3.427,99 lei.

Out of stock

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

12 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Warranty 1 year
  • Free 30-Day returns

Payment Methods:

Description

Keor LP – On-line double conversion UPS (tower) – single phase VFI
For security systems, lighting systems, CCTV, servers. Ideal for environments with frequent electrical disturbances
Installation: downstream power generators. Advanced management depending on the battery discharge level
Self-diagnosis. Power factor: 0.9
Automatic internal bypass, manual bypass for external maintenance (optional)
Integrated slot for installing a communication interface for Ethernet network connection, to be ordered separately
Cold Start function
Microprocessor control
Telephone line/Internet protection (RJ 11/RJ 45)
Internal network interface Cat.No 3 108 82 for remote protection of equipment and systems
Remote emergency shutdown function (”Emergency Power Off” – EPO)

Specification

Overview

RackableNo
DisplayLED
Capacitate putere UPS2700W
RS-232 ports1
Web-based managementYes
Management protocolsSNMP
Audible alarm(s)Yes
Efficiency90%
Tip UPS:Online
Form factorTower
Capacitate Rack:None
Ecran LCD:Nu
Port USBNu
Number of input phases1
AC outlet typesC13 coupler
Serial interfaceYes
WaveformSine
Input operation voltage (max)300 V
Automatic battery testYes
Output power2700 W
Emergency Power Off (EPO)Yes
Power plugC20 coupler
AC outlets quantity8 AC outlet(s)
Serial interface typeRS-232
Output power capacity3 kVA
Input frequency45/65 Hz
Battery capacity7 Ah
UPS topologyDouble-conversion (Online)
Crest factor3:1
Typical backup time at half load7 min
Input power factor0.99
Emergency Power Off (EPO) connectorYes
Output operation voltage (max)230 V
Input operation voltage (min)160 V
Output operation voltage (min)230 V
Output voltage regulation1%
Power factor0.98
Output voltage Total Harmonic Distortion (THD)3%
Audible alarm modesAlarm when on battery, Fault, Low battery alarm, Overload alarm
Number of type F outputs2
Protectie supratensiuneDa
UPS-ManagementYes
ManagementDa
Operating temperature (T-T)0 – 40 °C
Battery recharge time3 h
Battery technologySealed Lead Acid (VRLA)
Battery voltage7.2 V
Depth151 mm
Operating relative humidity (H-H)20 – 80%
LED indicatorsYes
Number of batteries supported6
Noise level50 dB
Height444 mm
Weight2.3 kg
Width32.2 mm
International Protection (IP) codeIP21
CertificationCE, EN 62040-1, EN 62040-2
Tip:Online
Alarme sonoreDa
IEC C136
Greutate23 Kg
Putere3000VA
Interfata1 RS232 serial port 1 slot for networkinterface connection
Capacitate baterie12 V / 7 Ah
Incarcare2700W
Dimensiuni322 x 189 x 444 mm
AlteleTower
Altii2xSHKIN 1x C13
ProducatorLEGRAND
Garantie24
