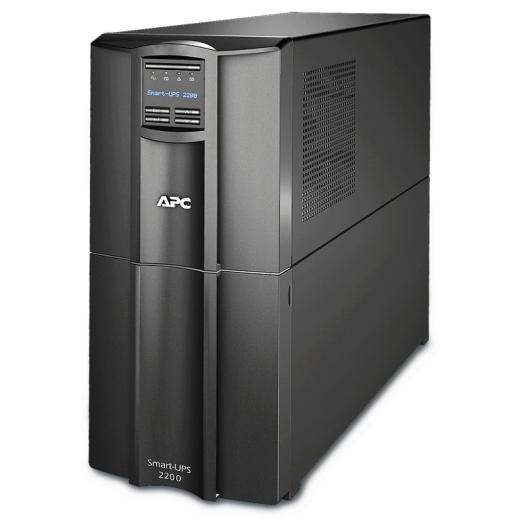

UPS APC Smart-UPS SMT line-interactive / sinusoidala 2200VA / 1980W 8conectori C13 1 conectori C19, baterie RBC55, optional extinder egarantie cu 1/3 ani (WBEXTWAR1YR-SP-03/WBEXTWAR3YR-SP-03),3 ani garantie echipament si 2 ani garantie baterie

SKU: SMT2200IC

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Original price was: 8.623,98 lei.Current price is: 7.181,99 lei.

Out of stock

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

14 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Warranty 1 year
  • Free 30-Day returns

Payment Methods:

Description

APC Smart-UPS 2200VA, Tower, LCD 230V with SmartConnect Port

Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Includes: USB cable

Output power capacity

1.98kWatts / 2.2kVA
Output Connections

(1) IEC 320 C19 (Battery Backup)
(2) IEC Jumpers (Battery Backup)
(8) IEC 320 C13 (Battery Backup)
Nominal Output Voltage

230V
Nominal Input Voltage

230V
Input Connections

BS1363A British, IEC 320 C20, Schuko CEE 7 / EU1-16P

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion

Less than 5 %
Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages

220, 240
Topology

Line interactive
Waveform type

Sine wave
Transfer Time

6 ms typical : 10 ms maximum

Specification

Overview

RackableNo
USB PortYes
Operating altitude0 – 3000 m
Storage relative humidity (H-H)0 – 95%
USB 2.0 ports quantity1
Serial ports quantity1
Response time6 ms
USB port typeUSB Type-A
Audible alarm(s)Yes
Tip UPS:Line Interactive
Form factorTower
Capacitate putere UPS1980W
Capacitate Rack:None
Ecran LCD:Da
Port USBDa
UPS topologyLine-Interactive
Serial interfaceYes
WaveformSine
Non-operating altitude0 – 15000 m
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Emergency Power Off (EPO)Yes
Input operation voltage (min)151 V
Input operation voltage (max)302 V
Surge energy rating365 J
Auto-restartYes
AC outlets quantity9 AC outlet(s)
SmartSlotYes
Sustainability certificatesGreen Premium
Output power capacity2.2 kVA
Output voltage Total Harmonic Distortion (THD)5%
Output power1980 W
Power protection featuresOver voltage, Overload
Audible alarm modesAlarm when on battery, Low battery alarm, Battery replacement
Typical backup time at full load8.7 min
Typical backup time at half load25 min
Total carbon footprint (kg of CO2e)3715.93
UPS-ManagementNo
DisplayDa
Operating temperature (T-T)0 – 40 °C
Software CDYes
Battery recharge time3 h
Battery technologySealed Lead Acid (VRLA)
Height43.5 mm
Operating relative humidity (H-H)0 – 95%
LED indicatorsYes
Harmonized System (HS) code85078000
Display typeLCD
Package width381 mm
Noise level45 dB
Battery life (max)5 year(s)
Storage temperature (T-T)-15 – 45 °C
Cables includedRS-232, USB cable
Width197 mm
Depth544 mm
Products per pallet9 pc(s)
CertificationCE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE
Weight48.8 kg
Package weight61.9 kg
Package height69.9 mm
Tip:Line-interactive
Atentionari Baterie slabaDa
Numar baterii1
IEC C191
IEC C138
Atentionari Mod baterieDa
Package depth7.62 mm
Tensiune de alimentare230V
InterfataUSBSmartSlot
BaterieMaintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
Baterie inlocuitoareRBC55
Timp incarcare3 ore
Dimensiuni435 x 197 x 544 mm
Altii2x IEC Jumpers
Putere2200 VA
Incarcare1,98 kW
Timp mediu de functionare151.7 @200W8.7 min @1980W
Greutate48.80 Kg
ProducatorAPC
Garantie36
