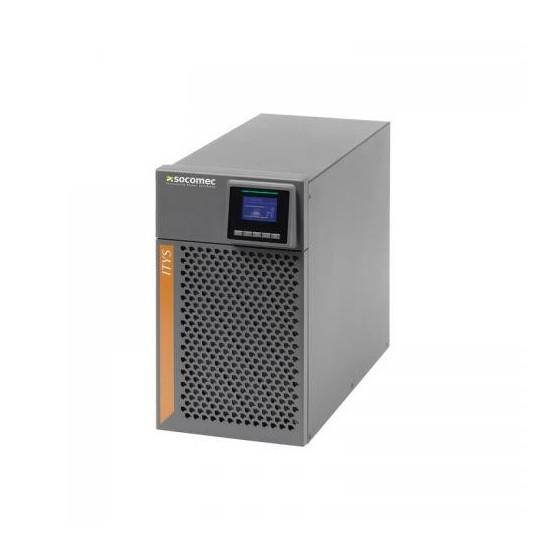

ITYS 3000VA VFI UPS 1/1 PF=1 WITH BATTERY INTEGRATED

SKU: ITY3-TW030B

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Original price was: 5.551,99 lei.Current price is: 3.975,99 lei.

Out of stock

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

13 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Warranty 1 year
  • Free 30-Day returns

Payment Methods:

Description

SOCOMEC ITYS

Protecţie a alimentării fiabilă şi versatilă – De la 1 la 10 kVA

Protecție a alimentării fiabilă și versatile

Instalare rapidă și simplă: nu este necesară configurarea la prima pornire.
– Conexiuni rapide prin intermediul prizelor sau bornelor IEC 320.
– Toleranța mare a tensiunii de intrare limitează comutările în modul baterie, prelungind durata de viață a bateriei.
– Gamă largă de temperaturi ambiante, până la 45 °C.
– Intrare monofazată și trifazată cu configurație automată (8-10 kVA).

Tehnologia online dublă conversie reală (VFI) asigură disponibilitate ridicată și protecție totală a sarcinii.
– Compatibilitate cu diferite aplicații, medii de operare și grupuri electrogene.
– Bypass-ul automat alimentează sarcinile în caz de suprasarcini sau defecțiuni.
– Bypass manual pentru mentenanță periodică sau de urgență.
– Dispozitivul standard de protecție la supratensiune (DPST) protejează UPS-ul și sarcina de tensiunile de vârf periculoase ale rețelei.

Specification

Overview

USB PortYes
Cooling typeActive
ECO modeYes
RS-232 ports1
Capacitate putere UPS3000W
Tip UPS:Online
Capacitate Rack:None
Ecran LCD:Da
Port USBDa
Output frequency50/60 Hz
Number of input phases1
Number of output phases1
Efficiency (ECO mode)98%
AC outlet typesC13 coupler
USB port typeUSB Type-B
Built-in fanYes
SafetyIEC/EN 62040-1, AS 62040.1.1, AS 62040.1.2
WaveformSine
Input operation voltage (max)300 V
Output operation voltage (max)240 V
Emergency Power Off (EPO)Yes
Power plugC20 coupler
AC outlets quantity8 AC outlet(s)
Output power capacity3 kVA
UPS topologyDouble-conversion (Online)
Input frequency40 – 70 Hz
Crest factor3:1
Output operation voltage (min)200 V
Efficiency93%
Input power factor0.99
Input operation voltage (min)160 V
Output power factor1
Power protection featuresShort circuit
Charging current8 A
Operating altitude0 – 1000 m
Battery capacity9 Ah
Output power3000 W
Form factorN/A
Typical backup time at full load6 min
Battery technologySealed Lead Acid (VRLA)
Battery voltage7.2 V
Weight2.6 kg
Operating temperature (T-T)0 – 45 °C
Operating relative humidity (H-H)0 – 95%
LED indicatorsYes
Country of originChina
Display typeLCD
Control typeButtons
Noise level50 dB
International Protection (IP) codeIP20
Battery life (max)3 year(s)
Depth428 mm
Product colourBlack, Grey, Orange
Width192 mm
CertificationIEC/EN 62040-2, AS 62040.2 IEC/EN 62040-3 CE, RCM (E2376)
Height322 mm
ProducatorSOCOMEC
Garantie24
