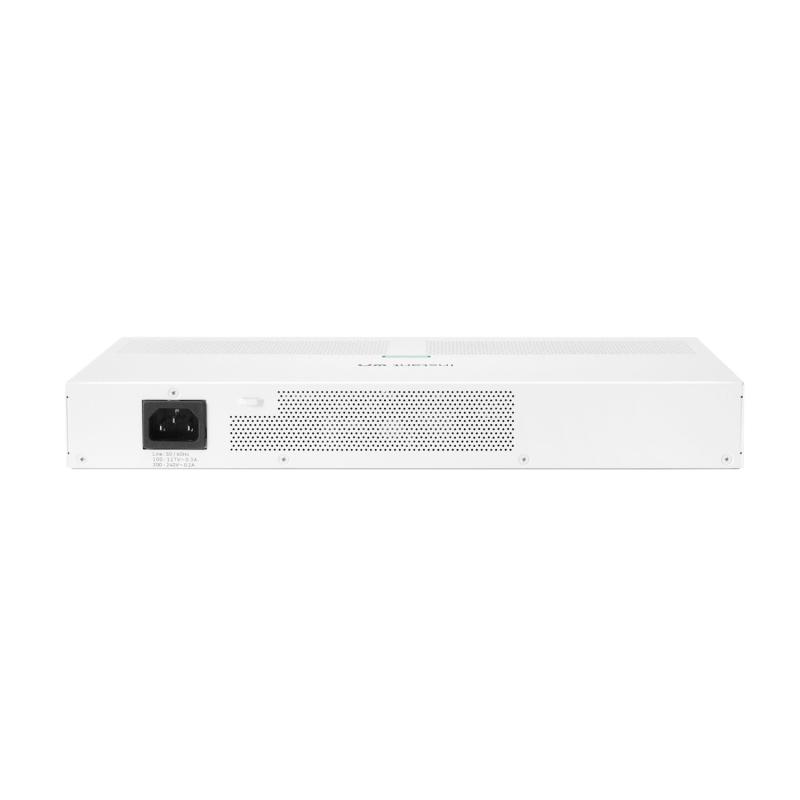

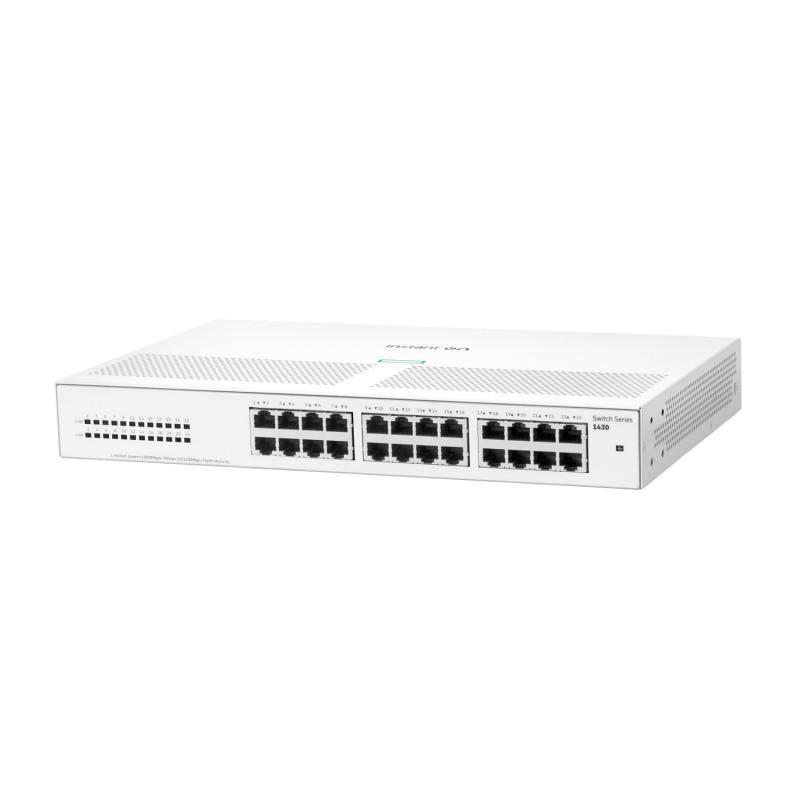

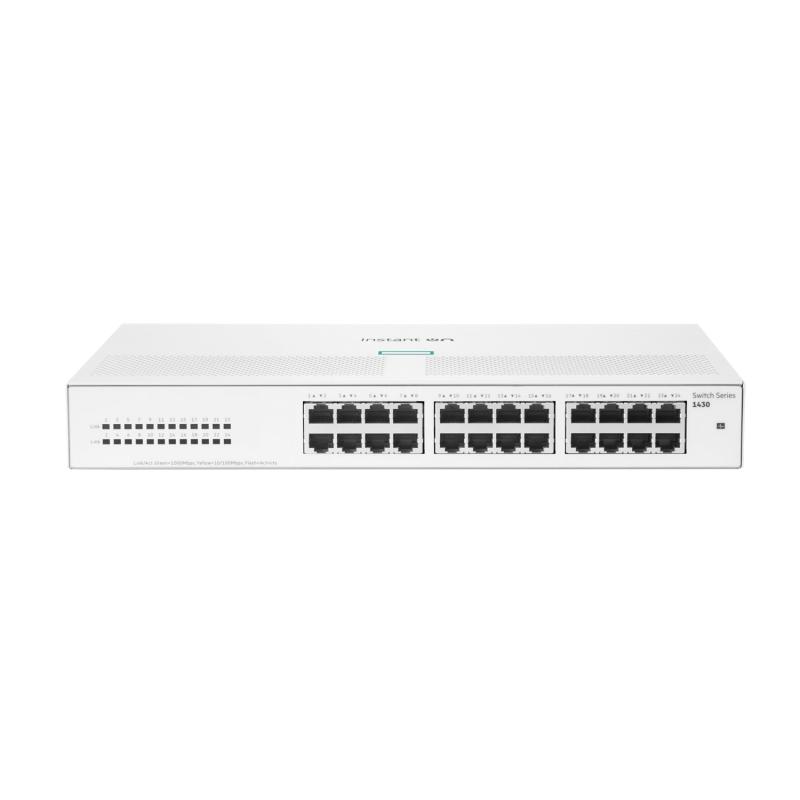

HPE Networking Instant On Switch 24p Gigabit 1430

Name: HPE Networking Instant On Switch 24p Gigabit 1430
Brand: ARUBA NETWORKS
SKU: R8R49A
Availability: OutOfStock

SKU: R8R49A

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

808,99 lei

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

I have read and accept the privacy policy

Compare

10 People watching this product now!

Pick up from the Woodmart Store

To pick up today

Free

Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

Warranty 1 year

More details

Free 30-Day returns

More details

Payment Methods:

Description

Lifecycle

Obsolete Date 31-12-2099

Specifications

PoE capability –
Switching capacity 48 Gbps
Throughput 35.71 Mpps
Weight 4.20 lb
Power supply name Internal Power Supply
Weight 1.91 kg
Power consumption Maximum: 11.7W Idle: 3.2W
Memory and processor 128Kb EEPROM; Packet buffer size: 2.0 Mb
Input voltage 100-127VAC / 200-240VAC, depending on model
Warranty Limited Lifetime Warranty with 24×7 phone support for 90 days and chat support for the entire warranty duration.
Management features Unmanaged
Ports 24 RJ-45 10/100/1000 ports
Product dimensions (metric) 22.5 x 34.0 x 4.4 cm
Operating temperature 0°C to 40°C, 32°F to 104°F
Product dimensions (imperial) 8.86 x 13.38 x 1.73 in

Quickspecs

Overview

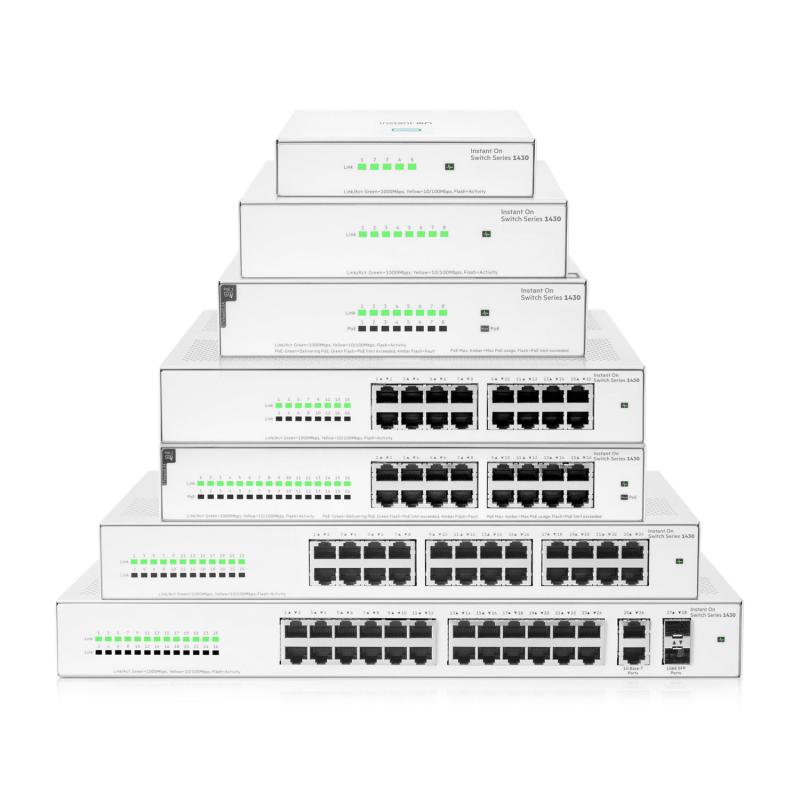

The Aruba Instant On 1430 Switch Series is a plug-and-play unmanaged switch series for small businesses looking for simple, reliable, and low-cost network connectivity. These easy-to-use switches deliver Layer 2 Gigabit Ethernet switching capabilities—at an affordable price point—to help connect and share common resources like printers and access points, without any complicated network configuration. With plug-and-play operation, fully automated functions, zero ongoing maintenance, and Power over Ethernet (PoE) models, these switches deliver simple, reliable connectivity for the smallest SMBs and home offices.

What’s new

Up to 124W of PoE to power APs, IP Phones, and other IoT devices.
Fan-less design for silent deployment in office spaces.
Plug-and-play with fully automated functions and zero ongoing maintenance.
Unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in 5-, 8-, 16-, 24-and 26-port non-PoE and PoE models.
No configuration or management needed.

Features

Flow control provides a flow-throttling mechanism propagated through the network to prevent packet loss at a congested node.

Aruba Instant On Limited Lifetime support provides 24×7 phone support for the first 90 days and chat support for the entire warranty period. Community support is included for the life of the product.

All models are fan-less for silent operation in office settings or acoustically sensitive environments and require less power to operate.

Jumbo frame support provides up to 9216 bytes frame size to improve the performance of large data transfers.

The Aruba Instant On 1430 Switch Series supports Energy Efficient Ethernet (EEE) and is compliant with 802.3az standard requirements to save energy during periods of low data activity.

Quality of Service provides priority of time-sensitive packets (like VoIP and video) over other traffic based on DSCP or IEEE 802.1p classification.

Simplified cabling automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports using Auto MDI/MDI-X.

Energy Efficiency and Traffic Optimization

Two dedicated 1G SFP fiber ports on the 26-port model can be used for uplinks and to support long distance connectivity using fiber transceivers, for a total of 28 Ethernet ports.

Install flexibility with support for table-top, under-table, wall-mount, and rack-mount options (varies per model).

With PoE models, you get up to 30W PoE per port power delivery for Class 4 PoE devices like access points, surveillance cameras and VoIP phones. The 8-port and 16-port PoE models come with the power budget of 64W and 124W respectively to support the latest IoT devices.

The Aruba Instant On 1430 Switch Series is an unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in seven models in PoE and non-PoE configurations: one (1) 5-port, two (2) 8-port, two (2) 16-port, one (1) 24-port, and one (1) 26-port model with 2 SFP uplinks models.

No configuration beyond installation of optional 1GbE SFP transceivers on 26-port model to extend connectivity with gigabit fiber.

Unmanaged Ethernet Connectivity for Small Businesses

The Aruba Instant On 1430 Switch Series models are easy to use with zero configuration and no required ongoing administration.

The unmanaged PoE models delivers fully automated support for powering compatible IP phones, video surveillance cameras, or wireless access points.

Plug-and-Play Operation

Compatible products

Documents

HPE Networking Instant On Switch 1430

Specification

Overview

Installed SFP modules quantity
Jumbo frames support	Yes
Power supply included	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Full duplex	Yes
Rack mounting	Yes
Quality of Service (QoS) support	Yes
Form factor	1U
Power over Ethernet (PoE)	No
Switch layer	L2
Flow control support	Yes
Number of power supply units	1
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Basic switching RJ-45 Ethernet ports quantity	24
10G support	No
Auto-sensing	Yes
Switch type	Unmanaged
Fanless	Yes
Storage relative humidity (H-H)	15 – 90%
Packet buffer memory	2 MB
MAC address table	8192 entries
Switching capacity	48 Gbit/s
Latency (10-100 Mbps)	2.7 µs
Latency (1 Gbps)	1.8 µs
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Porturi RJ 45	24-28
Viteza Transfer	Gigabit
Porturi SFP	N/A
Montare in Rack	Nu
Throughput	35.71 Mpps
Management	Da
PoE	Nu
Operating temperature (T-T)	0 – 40 °C
Product colour	White
Operating relative humidity (H-H)	15 – 95%
Power source	AC
Depth	225 mm
Width	340 mm
Power consumption (max)	11.7 W
Weight	191 kg
Producator	ARUBA NETWORKS
Garantie	999

Processor
