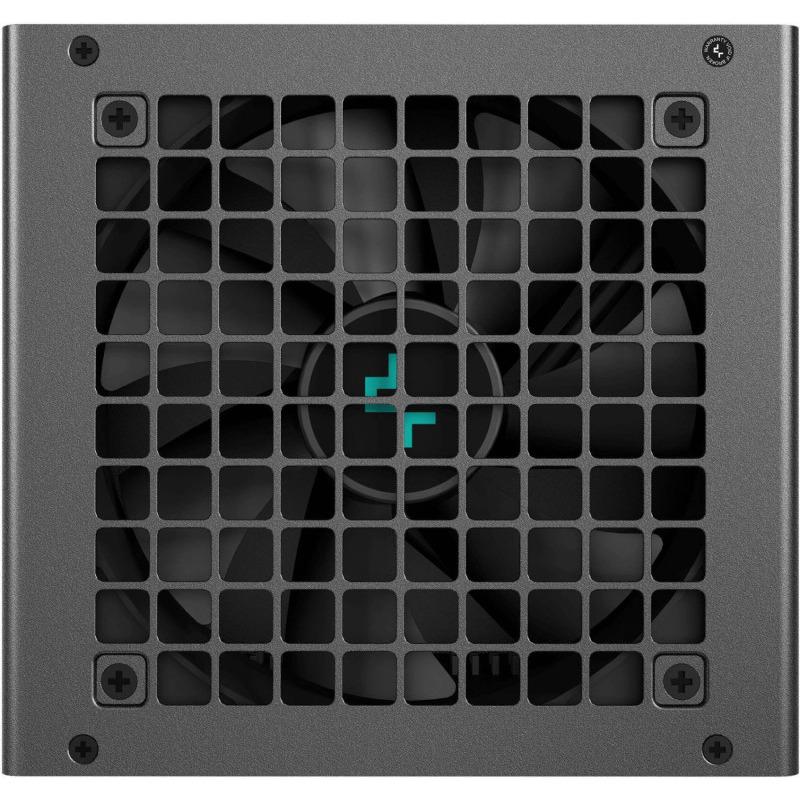

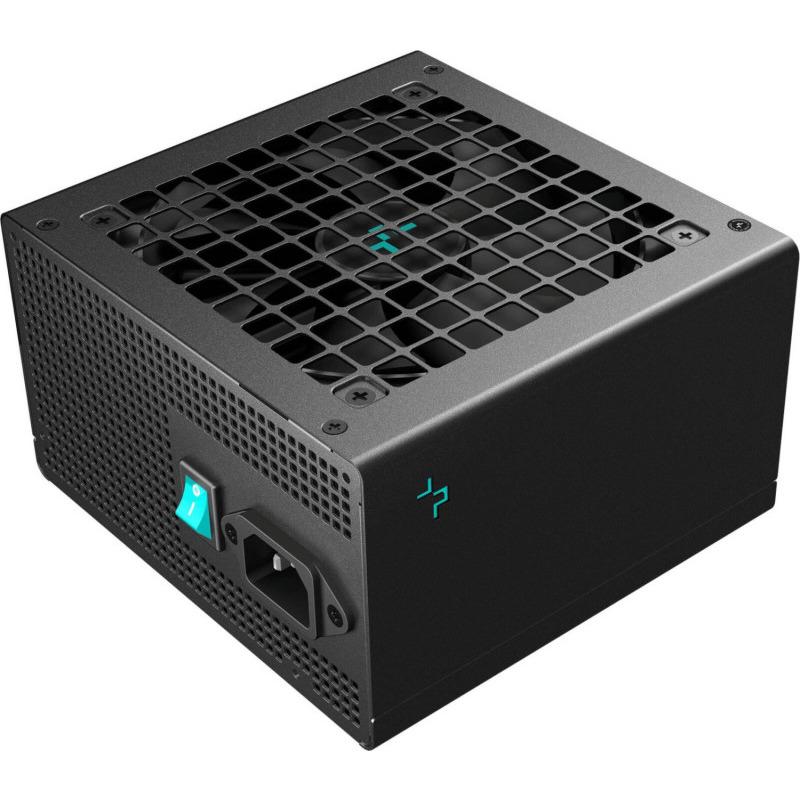

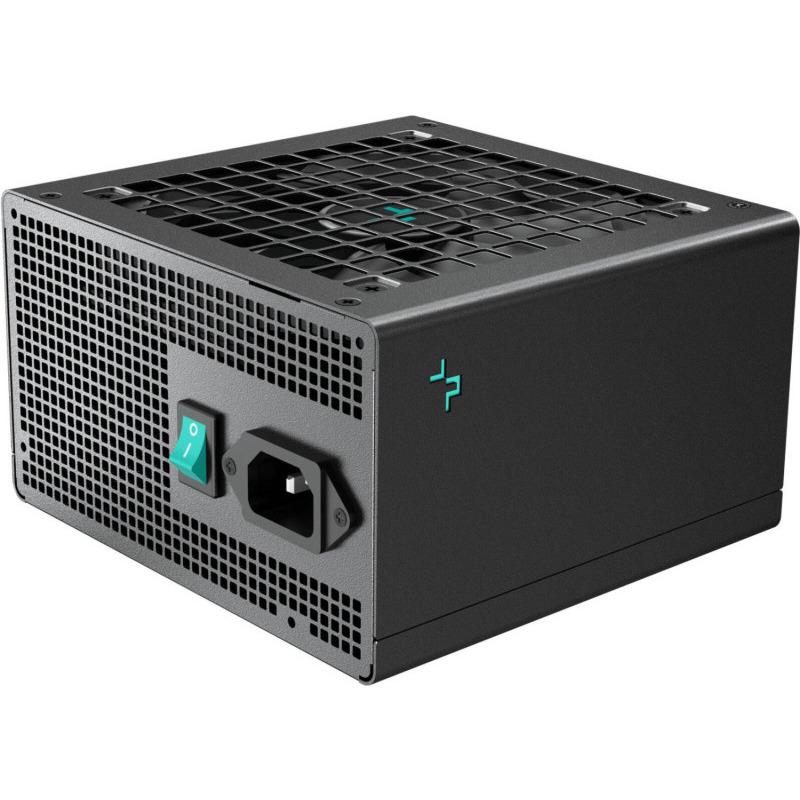

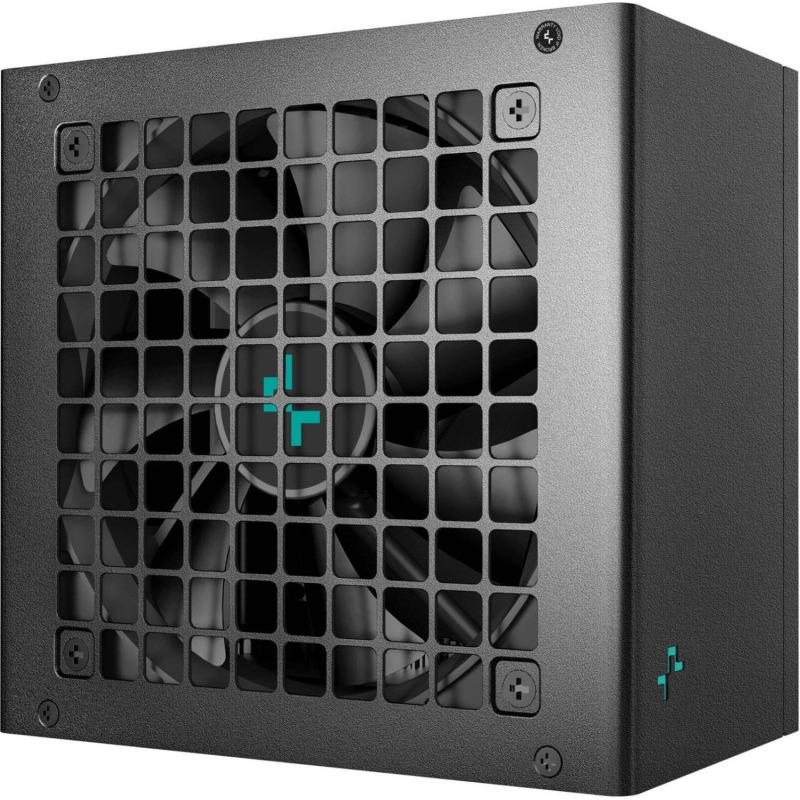

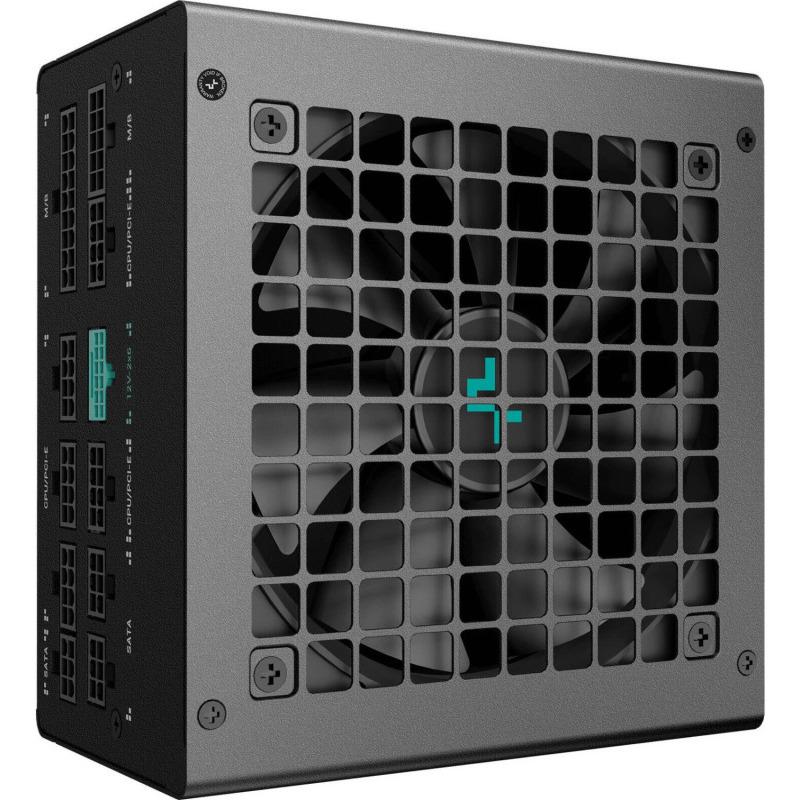

Sursa DEEPCOOL PN850M, 80+ Gold, 850W

SKU: R-PN850M-FC0B-EU

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

663,00 lei

Out of stock

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

19 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Warranty 1 year
  • Free 30-Day returns

Payment Methods:

Description

Sursa DEEPCOOL PN850M 850W 80 PLUS Gold, Active PFC+ Full Bridge SRC LLC+ DC to DC, Eficienta 90% sub incarcare tipica, Protectie OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO

Specification

Overview

PSU TypeATX
Cooling typeActive
Number of fans1 fan(s)
PurposePC
Fan diameter12 cm
Mean time between failures (MTBF)100000 h

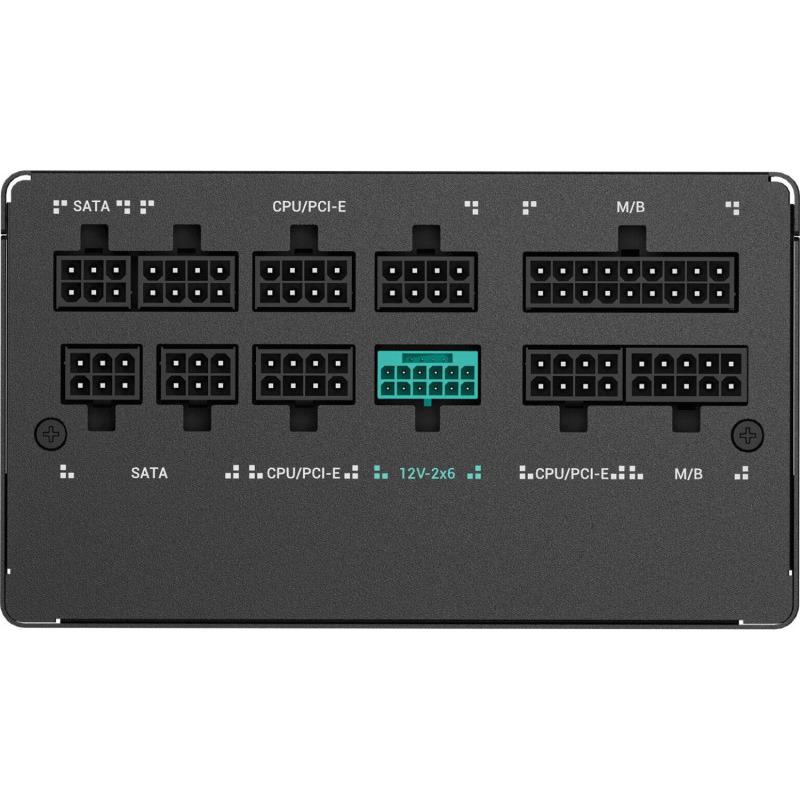

Conectivitate:Full – Modular
Iluminare RGBNu
Certificare 80 Plus80 PLUS Gold
Motherboard power connector20+4 pin ATX
Motherboard power cable length55 cm
CPU power connector (4+4 pin)Yes
ATX power connector (20+4 pin)Yes
Power supply unit (PSU) form factorATX
Fan locationTop

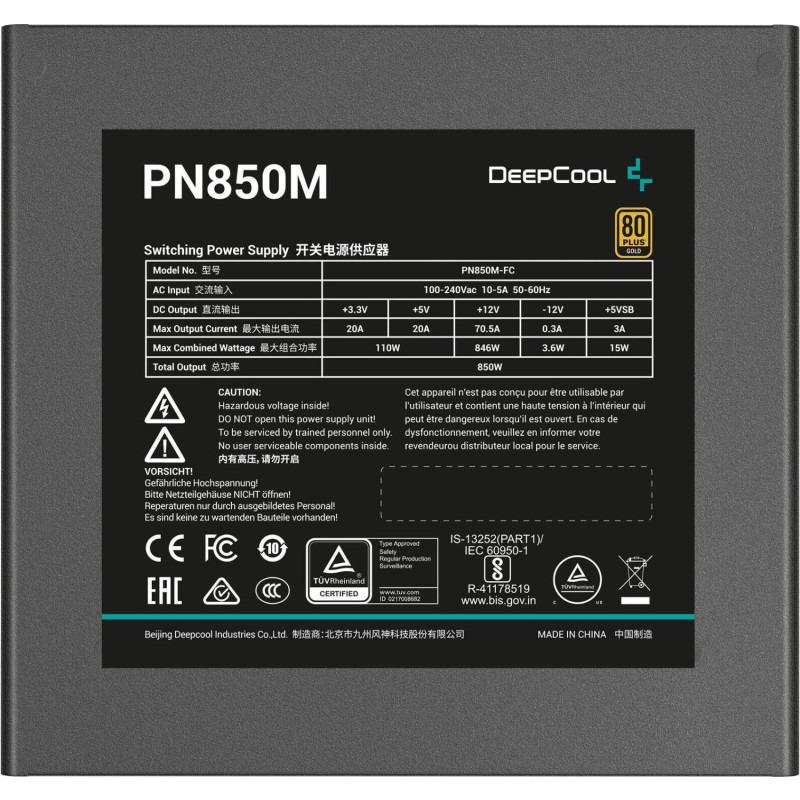

Combined power (+5Vsb)15 W
Max output current (+5Vsb)3 A
Number of SATA power connectors8
Cabling typeFully-Modular
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)110 W
Max output current (+3.3V)20 A
Max output current (+5V)20 A
80 PLUS certification80 PLUS Gold
Bearing technologyFDB
Cable tie(s) includedYes
Efficiency90%
PCI Express power connectors (6+2 pin)1
Combined power (+5V)110 W
Peripheral (Molex) power connectors (4-pin)2
Hold time16 ms
Total power850 W
Combined power (+12V)846 W
Max output current (+12V)70.5 A
CPU power cable length70 cm
SATA power cable length550,750,450,650 mm
ATX version3.1
Power Good signal delay range100 – 150 ms
Peripheral (Molex) power cable length850 mm
Sustainability certificatesErP, Triman
PSU-Power850 W
PFCActive
Product colourBlack
Operating temperature (T-T)0 – 40 °C
Cables includedAC
Width150 mm
Height86 mm
Sustainability complianceYes
Package typeBox
On/off switchYes
AC input voltage100 – 240 V
Depth140 mm
AC input frequency50/60 Hz
Compliance certificatesCCC, CE, EAC, Federal Communications Commission (FCC), RCM, RoHS, WEEE
ProducatorDEEPCOOL
Garantie120
