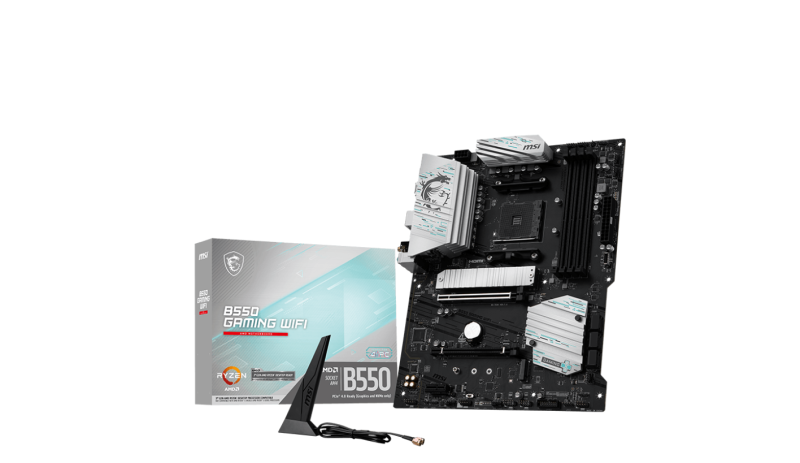

Placa de baza MSI B550 GAMING WIFI, Socket AM4, DDR4, ATX

Name: Placa de baza MSI B550 GAMING WIFI, Socket AM4, DDR4, ATX
Brand: MSI
SKU: B550 GAMING WIFI
Availability: InStock

SKU: B550 GAMING WIFI

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Original price was: 776,99 lei.Current price is: 560,99 lei.

100 in stock

Compare

15 People watching this product now!

Pick up from the Woodmart Store

To pick up today

Free

Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

Warranty 1 year

More details

Free 30-Day returns

More details

Payment Methods:

Description

MSI B550 GAMING WIFI. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, Supported storage drive types: HDD & SSD. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek 8111H, Top Wi-Fi standard: Wi-Fi 5 (802.11ac)

Specification

Overview

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
Wi-FI	Yes
Component for	PC
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Ethernet interface type	Gigabit Ethernet
Memory channels	Dual-channel
Ethernet LAN	Yes
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Maximum internal memory	128 GB
Processor manufacturer	AMD
USB 2.0 ports quantity	4
PCI Express x1 (Gen 3.x) slots	2
PCI Express x16 (Gen 3.x) slots	1
Audio output channels	7.1 channels
Audio Chip	Realtek ALC897
PCI Express x16 (Gen 4.x) slots	1
Supported storage drive types	HDD & SSD
Supported memory types	DDR4-SDRAM
Number of M.2 (M) slots	2
Processor socket	Socket AM4
S/PDIF out port	Yes
Motherboard chipset	AMD B550
Digital audio optical out	1
DisplayPorts quantity	1
VGA (D-Sub) ports quantity
Parallel processing technology support	Not supported
DVI-D ports quantity
Maximum resolution	4096 x 2160 pixels
Drivers included	Yes
Model Chipset	B550
Gaming	Da
Format	ATX
Soclu Procesor	Socket AM4
Tip Memorie:	DDR4
Numar sloturi memorie	4
Memorie maxima	128 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	1
Compatible processor series	AMD Ryzen 3000 Series
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
Number of SATA II connectors
Number of Parallel ATA connectors
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
PS/2 ports quantity	1
Motherboard chipset family	AMD
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
ECC сompatibility	ECC & Non-ECC
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Front panel connector	Yes
TPM connector	Yes
RGB LED pin header	Yes
WiFi-AP antenna jack	2
Motherboard form factor	ATX
Maximum number of SMP processors	1
12V power connector	Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Supported storage drive interfaces	SATA III
Number of SATA III connectors	6
Number of chassis fan connectors	6
Chassis intrusion connector	Yes
eSATA ports quantity
Firewire (IEEE 1394) ports
LAN controller	Realtek 8111H
PC health monitoring	CPU, Fan, Temperature
2nd M.2 largest key size	2280
USB 2.0 connectors	4
ACPI version	6.0
Total number of SATA connectors	6
System Management BIOS (SMBIOS) version	2.8
1st M.2 highest PCI Express generation	4.0
1st M.2 largest key size	22110
2nd M.2 highest PCI Express generation	3.0
Bluetooth	Yes
Bluetooth version	5.0
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Ethernet LAN (RJ-45) ports	1
Harmonized System (HS) code	84733020
Cables included	SATA
Width	304 mm
Depth	243.8 mm
Supported memory clock speeds	2667 MHz
Producator	MSI
Garantie	36
