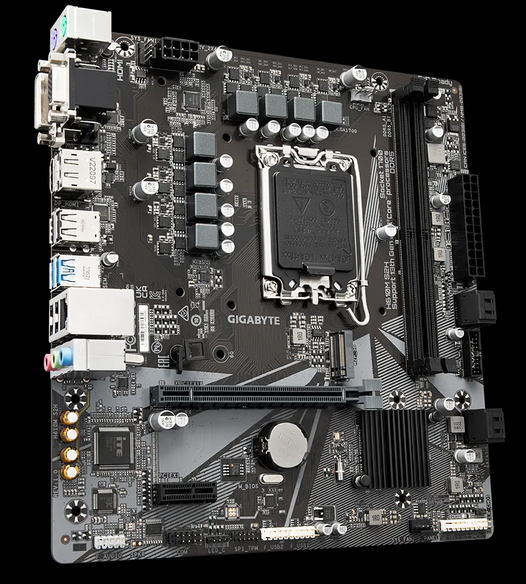

Placa de bază Gigabyte H610M S2H LGA1700 - Image 1

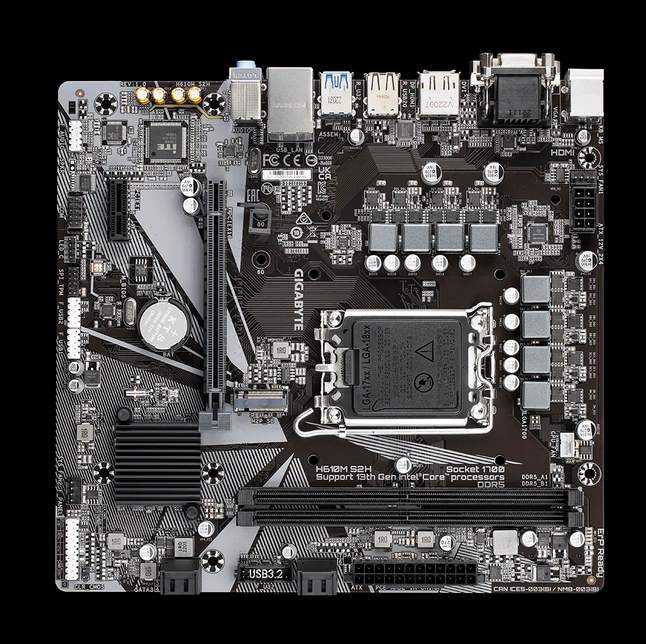

Placa de bază Gigabyte H610M S2H LGA1700 - Image 3

Click to enlarge

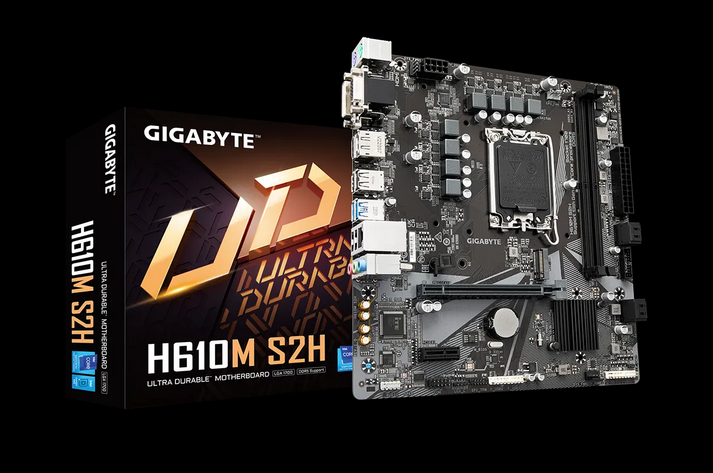

Placa de bază Gigabyte H610M S2H LGA1700

Name: Placa de bază Gigabyte H610M S2H LGA1700
Brand: GIGABYTE
SKU: H610M S2H
Availability: OutOfStock

SKU: H610M S2H

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

514,00 lei

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

I have read and accept the privacy policy

Compare

10 People watching this product now!

Pick up from the Woodmart Store

To pick up today

Free

Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

Warranty 1 year

More details

Free 30-Day returns

More details

Payment Methods:

Description

Placa de baza Gigabyte H610M S2H LGA1700, 2x DDR5, 1x D-SUB, 1x DVI-D, 1x HDMI, 1x DisplayPort, 1x PCIe x16, 1x PCIe x1, 1x M.2, 4x SATA 6Gbps, mATX

Specification

Overview

PCI
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	No
Onboard-CPU	No
Component for	PC
USB connector type	USB Type-A
Ethernet interface type	Gigabit Ethernet
Memory channels	Dual-channel
Processor manufacturer	Intel
Maximum internal memory	64 GB
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
USB 2.0 ports quantity	4
Audio output channels	7.1 channels
PCI Express x16 slots	1
Number of memory slots	2
Supported storage drive types	HDD & SSD
Number of M.2 (M) slots	1
VGA (D-Sub) ports quantity	1
PCI Express x1 slots	1
HDCP	Yes
DVI-D ports quantity	1
DisplayPort version	1.2
DisplayPorts quantity	1
Parallel processing technology support	Not supported
DirectX version	12.0
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	H610
Gaming	Nu
Format	Micro-ATX (mATX)
Soclu Procesor	Socket 1700
Tip Memorie:	DDR5
Numar sloturi memorie	2
Memorie maxima	64 GB
Tip slot interfata grafica	PCIe 3.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	1
RJ-45 LAN	1
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
Motherboard form factor	micro ATX
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
Supported memory types	DDR5-SDRAM
ECC сompatibility	ECC & Non-ECC
Number of HDDs supported	4
Front panel connector	Yes
TPM connector	Yes
RGB LED pin header	Yes
Motherboard chipset family	Intel
PC health monitoring	Fan, Temperature, Voltage, Water cooling
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Processor socket	LGA 1700
Supported processor sockets	LGA 1700
Maximum resolution	4096 x 2304 pixels
12V power connector	Yes
BIOS memory size	128 Mbit
Serial port headers	1
Bundled software	Norton Internet Security
Number of storage drives supported	5
Number of displays supported	3
PS/2 ports quantity	2
Maximum internal memory supported by processor	64 GB
Motherboard chipset	Intel H610 Express
Supported memory clock speeds	4400,4800,5200,5600 MHz
Microphone in	Yes
Batteries included	Yes
Ethernet LAN (RJ-45) ports	1
Depth	215 mm
Height	35 mm
Width	230 mm
Cables included	SATA
Headphone outputs	3
Country of origin	China
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Product colour	Brown
Products per shipping (inner) case	1 pc(s)
Package width	265 mm
Package depth	235 mm
Package height	52 mm
Package weight	768 g
Producator	GIGABYTE
Garantie	36
