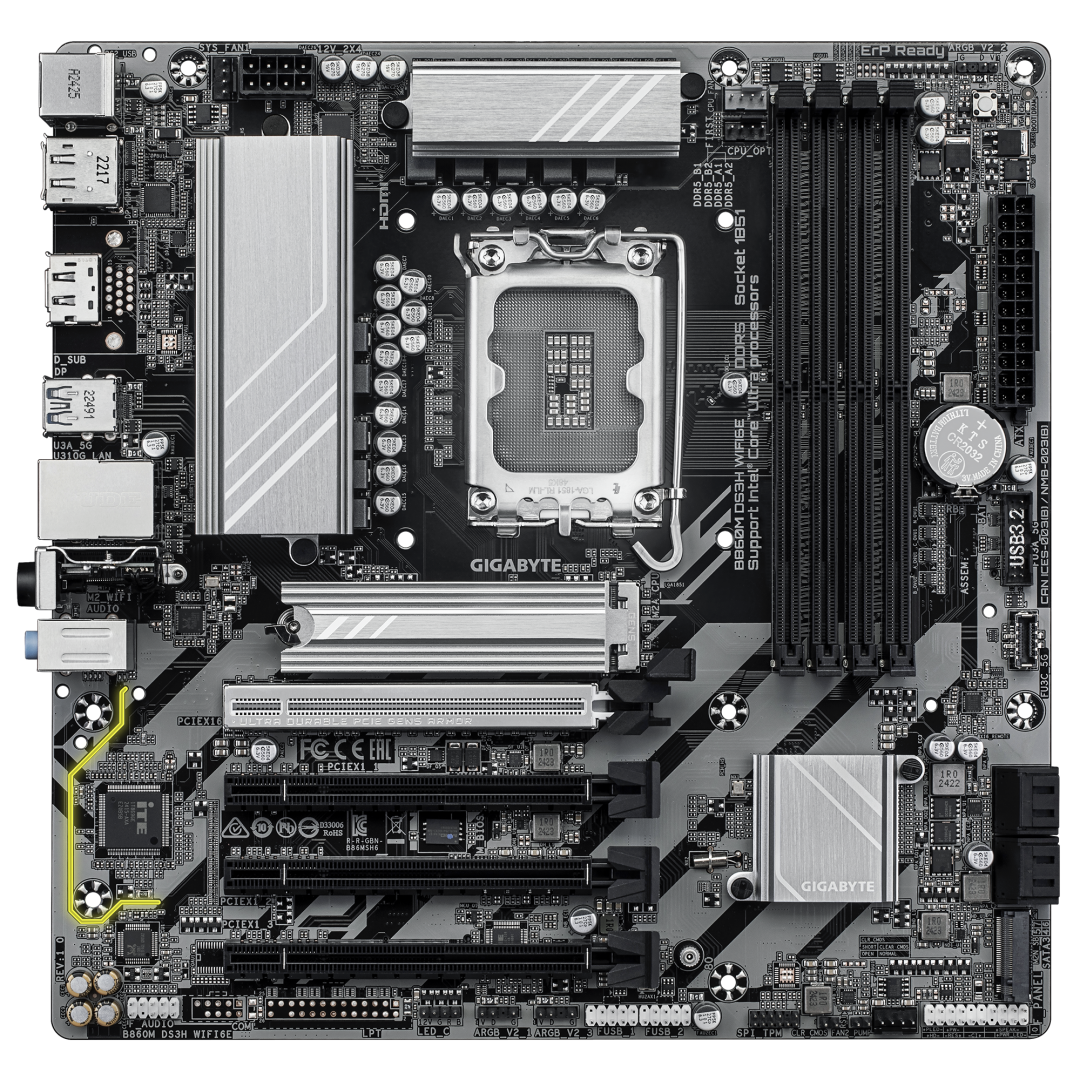

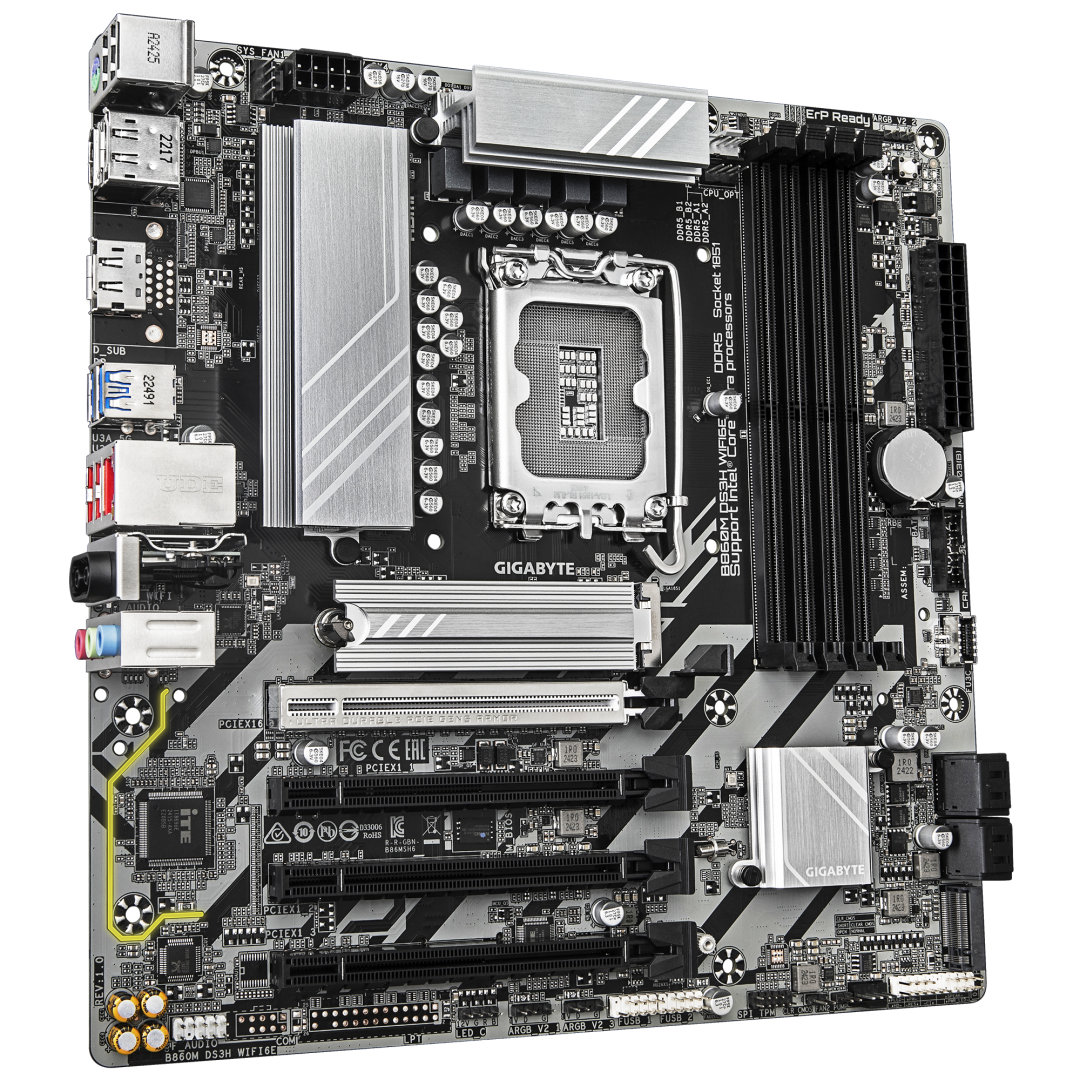

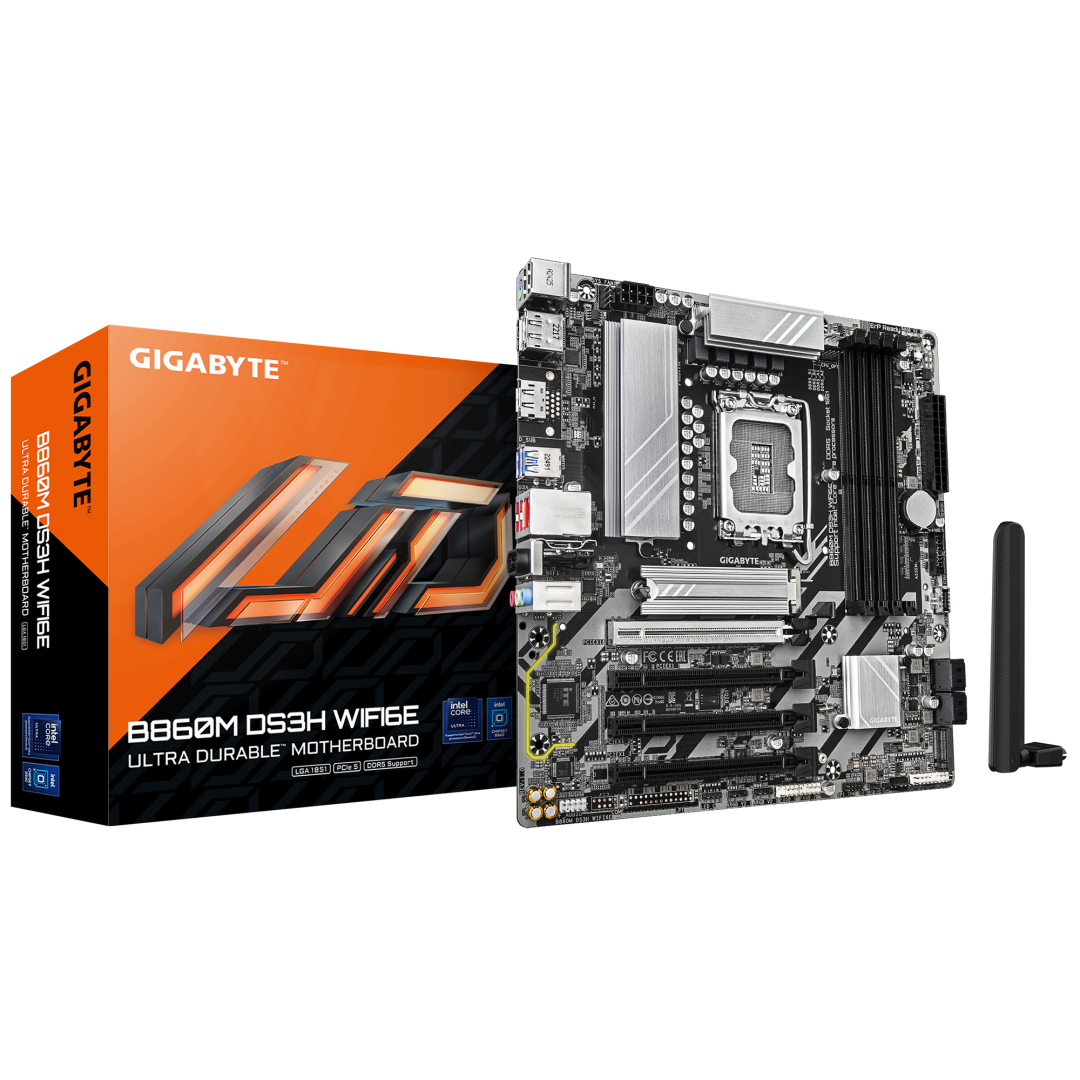

Placa de baza Gigabyte B860M DS3H WIFI6E, LGA 1851, DDR5, Micro-ATX

SKU: B860M DS3H WIFI6E

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Original price was: 1.006,99 lei.Current price is: 836,99 lei.

8 in stock

8 in stock

16 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Warranty 1 year
  • Free 30-Day returns

Payment Methods:

Description

Placa de Baza GIGABYTE B860M DS3H WIFI6E LGA1851, 4x DDR5, 1x HDMI 2x DP, 4x PCIE x16, 2x M.2, 4x SATA 6GB/s, mATX

Specification

Overview

PCI
Serial-or-ParalelNo/No
Video-ConnectionHDMI/DP
Wi-FIYes
Onboard-CPUNo
RAID supportYes
Component forPC
Memory channelsDual-channel
Processor manufacturerIntel
Top Wi-Fi standardWi-Fi 6E (802.11ax)
WLAN controller modelIntel Wi-Fi 6E AX211
Ethernet LANYes
HDMI ports quantity1
HDMI version2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
Audio output channels7.1 channels
USB 2.0 ports quantity3
DisplayPorts quantity2
Line-inYes
PCI Express x16 (Gen 5.x) slots1
Audio ChipRealtek ALC897
Supported storage drive typesHDD & SSD
Number of M.2 (M) slots2
HDCPYes
Screws includedYes
DisplayPort version2.1
VGA (D-Sub) ports quantity
Parallel processing technology supportNot supported
DVI-D ports quantity
DirectX version12.0
Maximum resolution4096 x 2160 pixels
Windows operating systems supportedWindows 10 x64, Windows 11 x64
Model ChipsetB860
GamingNu
Soclu ProcesorSocket 1851
Tip Memorie:DDR5
Numar sloturi memorie4
Memorie maxima256 GB
Tip slot interfata graficaN/A
Chipset audio integratRealtek
Canale audio7.1
WirelessDa
BluetoothDa
USB Type-CDa
HDMIDa
ThunderboltNu
Sloturi M.22
RJ-45 LAN1
Number of memory slots4
Memory slots typeDIMM
Unbuffered memoryYes
Supported storage drive interfacesM.2, SATA III
USB 2.0 connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
Number of SATA III connectors4
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors2
EPS power connector (8-pin)Yes
PS/2 ports quantity1
Motherboard form factormicro ATX
BIOS typeUEFI AMI
BIOS memory size256 Mbit
Clear CMOS jumperYes
Processor socketLGA 1851 (Socket V1)
Compatible processor seriesIntel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
Supported processor socketsLGA 1851
Supported memory typesDDR5-SDRAM
Maximum internal memory256 GB
ECC сompatibilityECC & Non-ECC
Maximum internal memory per slot64 GB
Number of HDDs supported4
RAID levels0, 1, 5, 10
Front panel connectorYes
Number of CPU fan connectors2
TPM connectorYes
Number of water pump connectors2
RGB LED pin headerYes
Number of RGB LED pin headers4
WiFi-AP antenna jack2
Ethernet interface type2.5 Gigabit Ethernet
LAN controllerRealtek RTL8125
Motherboard chipset familyIntel
Motherboard chipsetIntel B860
PC health monitoringFan, Temperature, Voltage, Water cooling
1st M.2 highest PCI Express generation5.0
2nd M.2 highest PCI Express generation4.0
ACPI version5.0
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7
Lithium weight per battery0.07 g
Antenna includedYes
Number of storage drives supported6
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
1st M.2 largest key size2280
2nd M.2 largest key size2280
Number of EPS power connectors (8-pin)1
Supported memory clock speeds5600,6400,9066 MHz
PCI Express x16 (Gen 4.x) slots5
Microphone inYes
Headphone outputs1
Bluetooth version5.3
Height35 mm
Width244 mm
Country of originChina
Package height68 mm
Power source typeATX
Battery weight3 g
Number of battery cells1
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032
Product colourBrown
Package width270 mm
Package depth268 mm
Weight1.1 kg
Package weight1.25 kg
Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software
Depth24.4 mm
FormatMicro-ATX
ProducatorGIGABYTE
Garantie36
