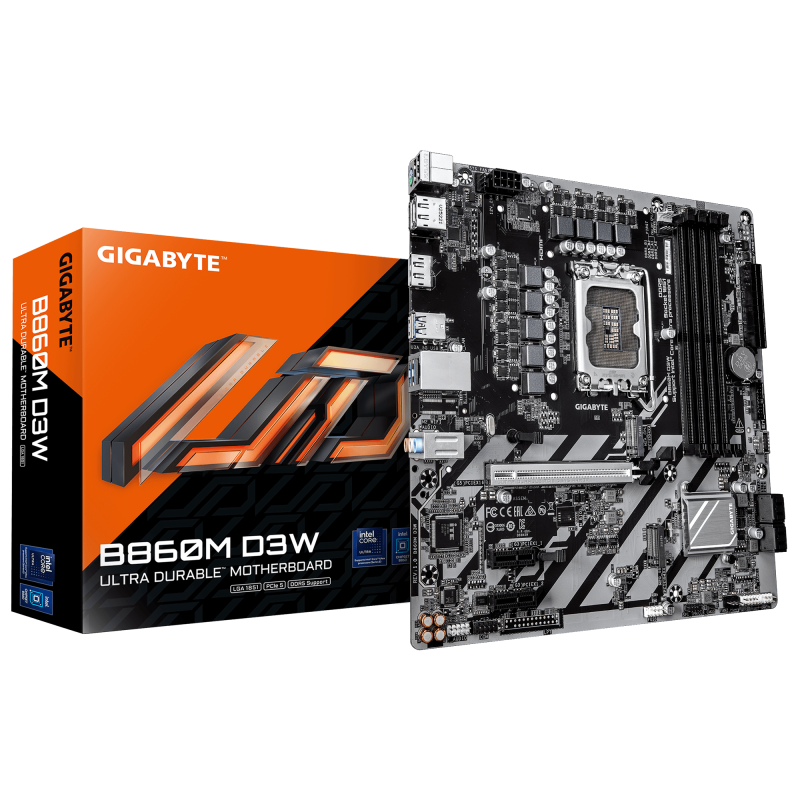

Placa de baza Gigabyte B860M D3W, Socket 1851, DDR5, Micro-ATX

Name: Placa de baza Gigabyte B860M D3W, Socket 1851, DDR5, Micro-ATX
Brand: GIGABYTE
SKU: B860M D3W
Availability: InStock

SKU: B860M D3W

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Original price was: 767,99 lei.Current price is: 656,99 lei.

10 in stock

Compare

10 People watching this product now!

Pick up from the Woodmart Store

To pick up today

Free

Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

Warranty 1 year

More details

Free 30-Day returns

More details

Payment Methods:

Description

Placa de baza Gigabyte B860M D3W

Specification

Overview

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
Wi-FI	No
RAID support	Yes
Component for	PC
Ethernet interface type	Gigabit Ethernet
Memory channels	Dual-channel
Processor manufacturer	Intel
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
PCI Express x1 (Gen 3.x) slots	2
Audio output channels	7.1 channels
USB 2.0 ports quantity	3
DisplayPorts quantity	2
Line-in	Yes
PCI Express x16 (Gen 5.x) slots	1
Audio Chip	Realtek ALC897
Supported storage drive types	HDD & SSD
LAN controller	Realtek RTL8111H
Number of M.2 (M) slots	2
Cooling type	Passive
HDCP	Yes
Screws included	Yes
HDCP version	2.3
DisplayPort version	2.1
VGA (D-Sub) ports quantity
Parallel processing technology support	Not supported
DVI-D ports quantity
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	B860
Gaming	Nu
Soclu Procesor	Socket 1851
Tip Memorie:	DDR5
Numar sloturi memorie	4
Memorie maxima	256 GB
Tip slot interfata grafica	PCIe 5.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 3.2 Gen 2 (3.1 Gen 2) connectors
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	2
EPS power connector (8-pin)	Yes
PS/2 ports quantity	1
Motherboard form factor	micro ATX
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
Processor socket	LGA 1851 (Socket V1)
Compatible processor series	Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
Supported processor sockets	LGA 1851
Supported memory types	DDR5-SDRAM
Maximum internal memory	256 GB
ECC сompatibility	ECC & Non-ECC
Maximum internal memory per slot	64 GB
Number of HDDs supported	4
RAID levels	0, 1, 5, 10
Front panel connector	Yes
Number of CPU fan connectors	2
TPM connector	Yes
Number of water pump connectors	2
Motherboard chipset family	Intel
Motherboard chipset	Intel B860
PC health monitoring	Fan, Temperature, Voltage, Water cooling
2nd M.2 highest PCI Express generation	4.0
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Number of storage drives supported	6
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Serial port headers	1
1st M.2 largest key size	2280
2nd M.2 largest key size	2280
USB 2.0 connectors	1
Number of EPS power connectors (8-pin)	1
1st M.2 highest PCI Express generation	4.0
Battery capacity	220 mAh
USB Type-C	N/A
Bundled software	Norton® Internet Security (OEM version)
Microphone in	Yes
Headphone outputs	1
Batteries included	Yes
Ethernet LAN (RJ-45) ports	1
Height	35 mm
Width	244 mm
Depth	244 mm
Country of origin	China
Package height	54 mm
Power source type	ATX
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Product colour	Dark brown
Products per shipping (inner) case	1 pc(s)
Package width	265 mm
Package depth	265 mm
Package weight	1.6 kg
Weight	1.35 kg
Supported memory clock speeds	5600,6400,9066,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600,8800 MHz
Format	Micro-ATX
Producator	GIGABYTE
