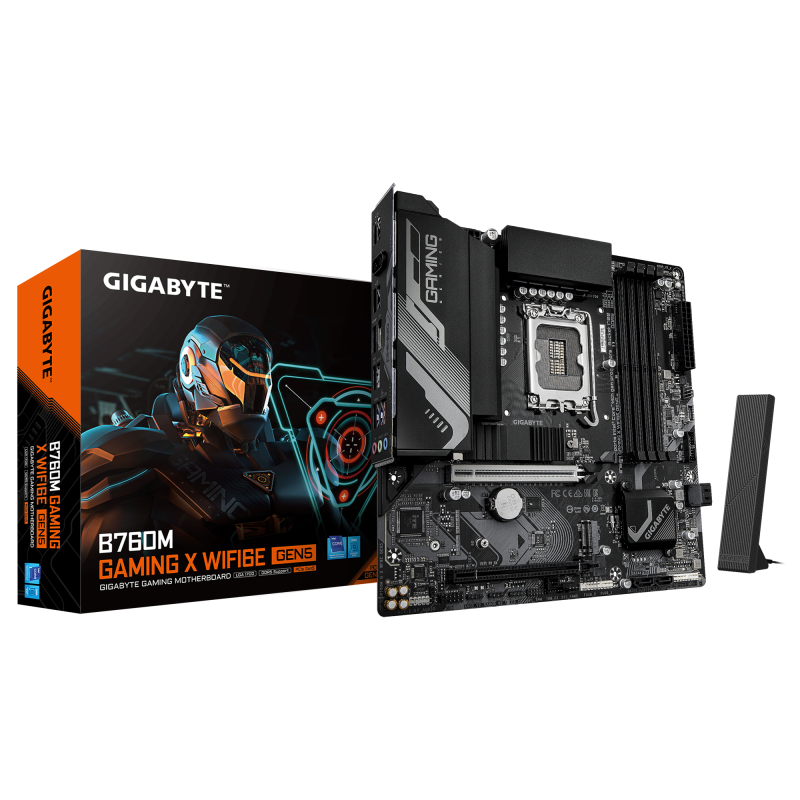

GIGABYTE B760M GAMING X WIFI6E GEN5. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: IntelĀ® CeleronĀ®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel…. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Overview
| Wi-FI | Yes |
|---|---|
| RAID support | Yes |
| Component for | PC |
| Memory channels | Dual-channel |
| Processor manufacturer | Intel |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Ethernet LAN | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Audio output channels | 7.1 channels |
| Line-in | Yes |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Audio Chip | Realtek ALC897 |
| Supported storage drive types | HDD & SSD |
| Number of M.2 (M) slots | 2 |
| Cooling type | Passive |
| USB 2.0 ports quantity | 5 |
| WLAN controller model | Intel Wi-Fi 6E AX210 |
| HDCP | Yes |
| Screws included | Yes |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | |
| Parallel processing technology support | Not supported |
| DVI-D ports quantity | |
| DirectX version | 12.0 |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Model Chipset | B760 |
| Gaming | Da |
| Soclu Procesor | Socket 1700 |
| Tip Memorie: | DDR5 |
| Numar sloturi memorie | 4 |
| Memorie maxima | 256 GB |
| Tip slot interfata grafica | PCIe 5.0 x16 |
| Chipset audio integrat | Realtek |
| Canale audio | 7.1 |
| Wireless | Da |
| HDMI | Da |
| Thunderbolt | Nu |
| Sloturi M.2 | 2 |
| RJ-45 LAN | 1 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Motherboard form factor | micro ATX |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS jumper | Yes |
| Supported memory types | DDR5-SDRAM |
| Maximum internal memory | 256 GB |
| ECC Ńompatibility | ECC & Non-ECC |
| Maximum internal memory per slot | 64 GB |
| Number of HDDs supported | 4 |
| RAID levels | 0, 1, 5, 10 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel connector | Yes |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 4 |
| WiFi-AP antenna jack | 2 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Realtek RTL8125 |
| Motherboard chipset family | Intel |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Lithium weight per battery | 0.07 g |
| Antenna included | Yes |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Maximum resolution | 4096 x 2304 pixels |
| Thunderbolt headers | 2 |
| 12V power connector | Yes |
| Number of storage drives supported | 6 |
| S/PDIF out connector | Yes |
| Motherboard chipset | Intel B760 |
| Serial port headers | 1 |
| Number of chassis fan connectors | 3 |
| 1st M.2 largest key size | 2280 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of CPU fan connectors | 1 |
| 1st M.2 highest PCI Express generation | 4.0 |
| USB Type-C | N/A |
| Supported memory clock speeds | 5600,5200,4800,4400 MHz |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Bluetooth | Yes |
| Batteries included | Yes |
| Bluetooth version | 5.3 |
| Ethernet LAN (RJ-45) ports | 1 |
| Height | 35 mm |
| Width | 244 mm |
| Depth | 244 mm |
| Country of origin | China |
| Package height | 68 mm |
| Power source type | ATX |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Product colour | Dark brown |
| Products per shipping (inner) case | 1 pc(s) |
| Package width | 270 mm |
| Package depth | 268 mm |
| Weight | 1.42 kg |
| Package weight | 1.6 kg |
| Bundled software | NortonĀ® Internet Security (OEM version) LAN bandwidth management software |
| Format | Micro-ATX |
| Producator | GIGABYTE |
| Garantie | 24 |
