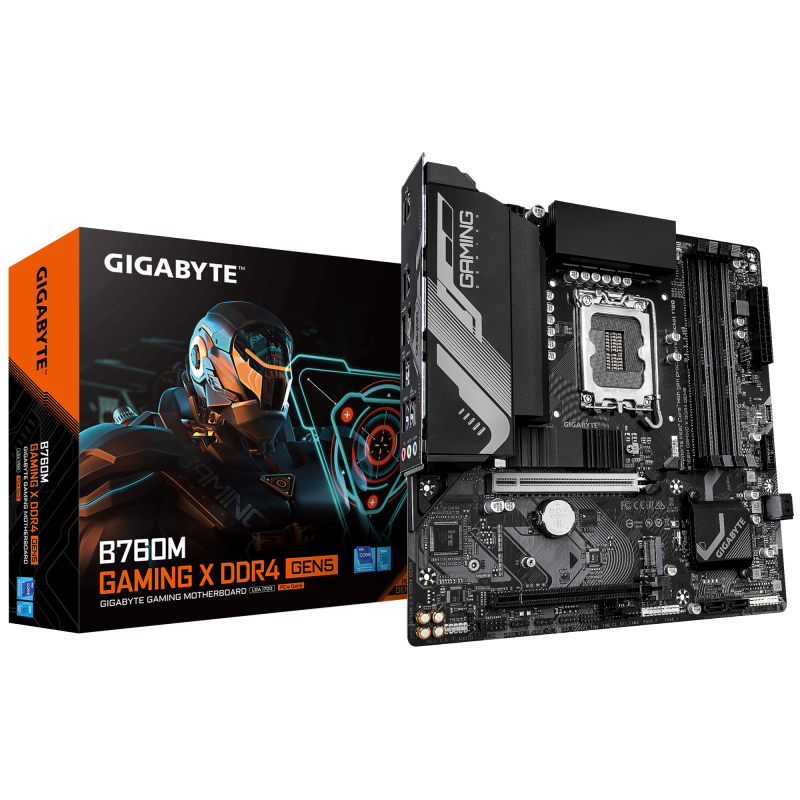

Placa de baza Gigabyte B760M GAMING X DDR4 GEN5, LGA 1700, DDR4, Micro-ATX

SKU: B760M G X DDR4 GEN5

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Original price was: 764,99 lei.Current price is: 625,99 lei.

Out of stock

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

11 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Warranty 1 year
  • Free 30-Day returns

Payment Methods:

Description

PLaca de baza Gigabyte B760M GAMING X DDR4 LGA1700

Specification

Overview

PCI
Serial-or-ParalelNo/No
Video-ConnectionHDMI/DP
Wi-FINo
USB34-8
PCI-Ex161
Onboard-CPUNo
RAID supportYes
Component forPC
Memory channelsDual-channel
Processor manufacturerIntel
Ethernet LANYes
HDMI ports quantity1
HDMI version2.1
Maximum internal memory128 GB
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
PCI Express x16 (Gen 3.x) slots1
Audio output channels7.1 channels
Line-inYes
PCI Express x16 (Gen 5.x) slots1
Audio ChipRealtek ALC897
Supported storage drive typesHDD & SSD
Supported memory typesDDR4-SDRAM
Number of M.2 (M) slots2
Cooling typePassive
USB 2.0 ports quantity5
HDCPYes
Screws includedYes
DisplayPort version1.2
DisplayPorts quantity1
VGA (D-Sub) ports quantity
Parallel processing technology supportNot supported
DVI-D ports quantity
DirectX version12.0
Windows operating systems supportedWindows 10 x64, Windows 11 x64
Model ChipsetB760
GamingDa
Soclu ProcesorSocket 1700
Tip Memorie:DDR4
Numar sloturi memorie4
Memorie maxima128 GB
Tip slot interfata graficaPCIe 5.0 x16
Chipset audio integratRealtek
Canale audio7.1
WirelessNu
BluetoothNu
HDMIDa
ThunderboltDa
Sloturi M.22
RJ-45 LAN1
Number of memory slots4
Memory slots typeDIMM
Unbuffered memoryYes
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors4
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
EPS power connector (8-pin)Yes
Motherboard form factormicro ATX
BIOS typeUEFI AMI
BIOS memory size256 Mbit
Clear CMOS jumperYes
ECC сompatibilityECC & Non-ECC
Number of HDDs supported4
RAID levels0, 1, 5, 10
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Front panel connectorYes
TPM connectorYes
RGB LED pin headerYes
Number of RGB LED pin headers4
Ethernet interface type2.5 Gigabit Ethernet
LAN controllerRealtek RTL8125
Motherboard chipset familyIntel
PC health monitoringFan, Temperature, Voltage, Water cooling
2nd M.2 largest key size22110
2nd M.2 highest PCI Express generation4.0
ACPI version5.0
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7
Lithium weight per battery0.07 g
Processor socketLGA 1700
Supported processor socketsLGA 1700
Supported storage drive interfacesM.2, PCI Express 4.0, SATA III
Maximum resolution4096 x 2304 pixels
Thunderbolt headers2
12V power connectorYes
Number of storage drives supported6
S/PDIF out connectorYes
Motherboard chipsetIntel B760
Serial port headers1
Number of chassis fan connectors3
1st M.2 largest key size2280
Number of EPS power connectors (8-pin)1
Number of CPU fan connectors1
1st M.2 highest PCI Express generation4.0
Maximum internal memory per slot32 GB
MB-Socket1700
PCI-Ex1
RAM-Slots4
MB-Formatmicro-ATX
USB Type-CN/A
Microphone inYes
Headphone outputs1
Batteries includedYes
Ethernet LAN (RJ-45) ports1
Height35 mm
Width244 mm
Depth244 mm
Country of originChina
Package height68 mm
Power source typeATX
Battery weight3 g
Number of battery cells1
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032
Product colourDark brown
Products per shipping (inner) case1 pc(s)
Package width270 mm
Package depth268 mm
Package weight1.6 kg
Weight1.19 kg
Supported memory clock speeds3200,3000,2933,2666,2400,2133 MHz
Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software
FormatMicro-ATX
ProducatorGIGABYTE
Garantie36
