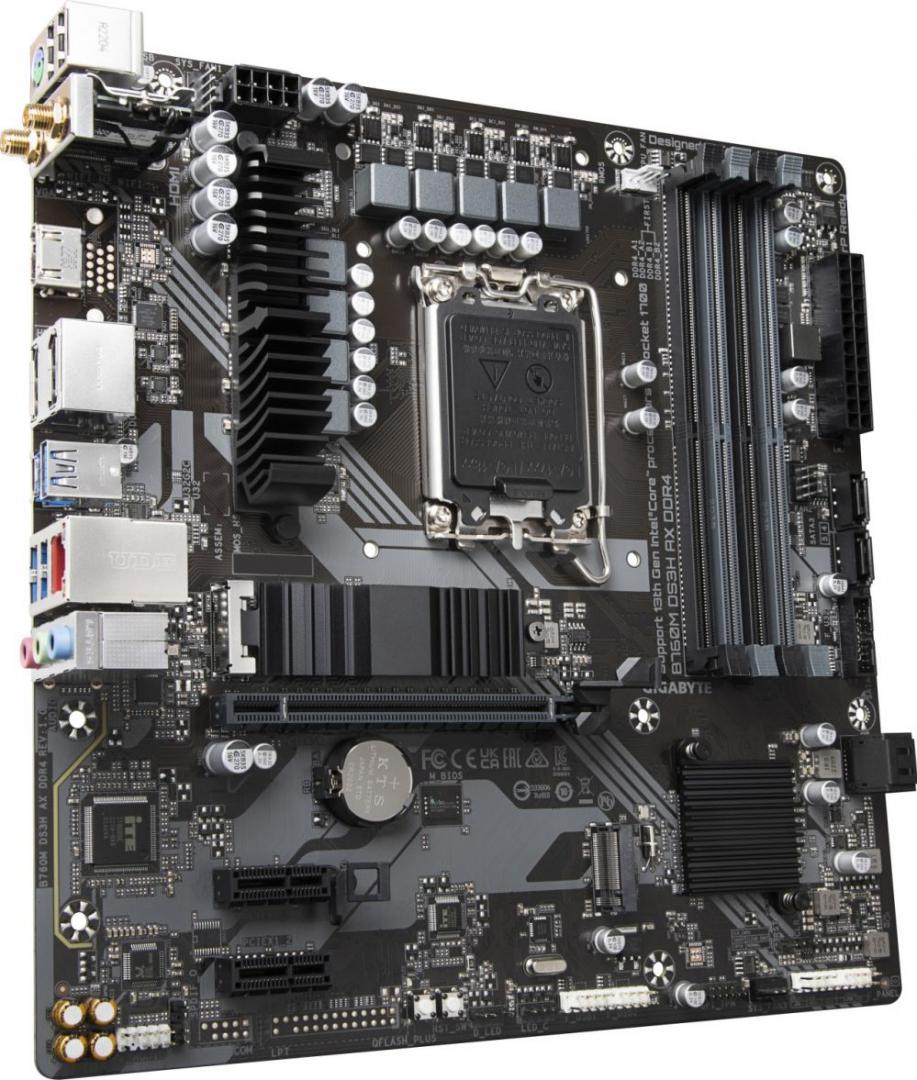

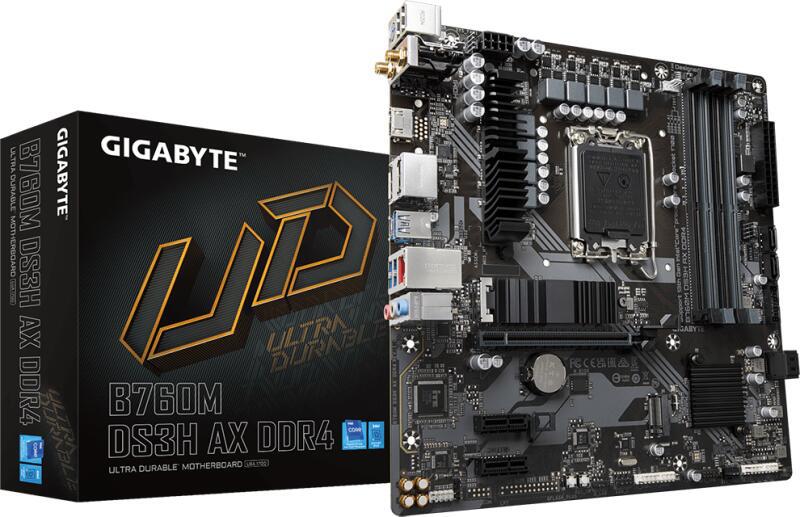

Placa de baza Gigabyte B760M DS3H AX, Socket 1700, DDR5, Micro-ATX

Name: Placa de baza Gigabyte B760M DS3H AX, Socket 1700, DDR5, Micro-ATX
Brand: GIGABYTE
SKU: B760M DS3H AX
Availability: OutOfStock

SKU: B760M DS3H AX

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

939,99 lei

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

I have read and accept the privacy policy

Compare

12 People watching this product now!

Pick up from the Woodmart Store

To pick up today

Free

Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

Warranty 1 year

More details

Free 30-Day returns

More details

Payment Methods:

Description

Placa de baza GIGABYTE B760M DS3H AX (rev. 1.x) LGA1700, 4x DDR5, 1x PCIE x16, 2x PCIE x1, 2x M.2, 1x HDMI 2X DP, 4x SATA 6GB/s, mATX

Specification

Overview

PCI
Serial-or-Paralel	No/No
Video-Connection	DP
Wi-FI	Yes
Onboard-CPU	No
RAID support	Yes
Component for	PC
USB connector type	USB Type-A, USB Type-C
Memory channels	Dual-channel
Processor manufacturer	Intel
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Ethernet LAN	Yes
HDMI ports quantity	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
Audio output channels	7.1 channels
DisplayPorts quantity	2
PCI Express x16 slots	1
PCI Express x16 (Gen 4.x) slots	1
Supported storage drive types	HDD & SSD
Number of M.2 (M) slots	2
HDCP	Yes
VGA (D-Sub) ports quantity
Parallel processing technology support	Not supported
DVI-D ports quantity
DirectX version	12.0
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	B760
Gaming	Nu
Soclu Procesor	Socket 1700
Tip Memorie:	DDR5
Numar sloturi memorie	4
Memorie maxima	192 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
PS/2 ports quantity	1
Motherboard form factor	micro ATX
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
Supported memory types	DDR5-SDRAM
Maximum internal memory	256 GB
ECC сompatibility	ECC & Non-ECC
Number of HDDs supported	4
RAID levels	0, 1, 5, 10
Front panel connector	Yes
TPM connector	Yes
RGB LED pin header	Yes
WiFi-AP antenna jack	2
Ethernet interface type	2.5 Gigabit Ethernet
Motherboard chipset family	Intel
PC health monitoring	Fan, Temperature, Voltage, Water cooling
2nd M.2 highest PCI Express generation	4.0
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Processor socket	LGA 1700
Supported processor sockets	LGA 1700
Maximum internal memory supported by processor	192 GB
Maximum resolution	4096 x 2304 pixels
Total number of SATA connectors	4
12V power connector	Yes
Number of storage drives supported	6
S/PDIF out connector	Yes
BIOS memory size	128 Mbit
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Motherboard chipset	Intel B760 Express
Bundled software	Norton Internet Security
1st M.2 largest key size	2280
2nd M.2 largest key size	2280
PCI Express x1 (Gen 2.x) slots	1
1st M.2 highest PCI Express generation	4.0
Supported memory clock speeds	4000,4800,5200,5400,5600,5800,6000,6200,6400,6800,7000,7200,7400,7600 MHz
Microphone in	Yes
Bluetooth	Yes
Batteries included	Yes
Bluetooth version	5.3
Ethernet LAN (RJ-45) ports	1
Height	35 mm
Cables included	SATA
Width	244 mm
Headphone outputs	3
Country of origin	China
Package height	54 mm
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Product colour	Brown
Products per shipping (inner) case	1 pc(s)
Package width	265 mm
Package depth	265 mm
Package weight	1.1 kg
Depth	24.4 mm
Format	Micro-ATX
Producator	GIGABYTE
Garantie	36
