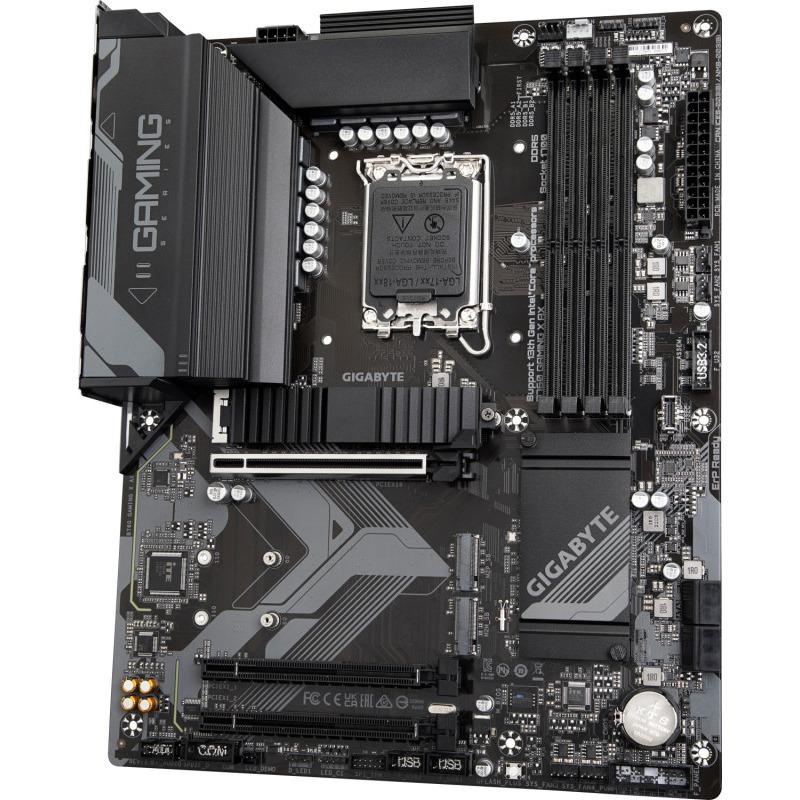

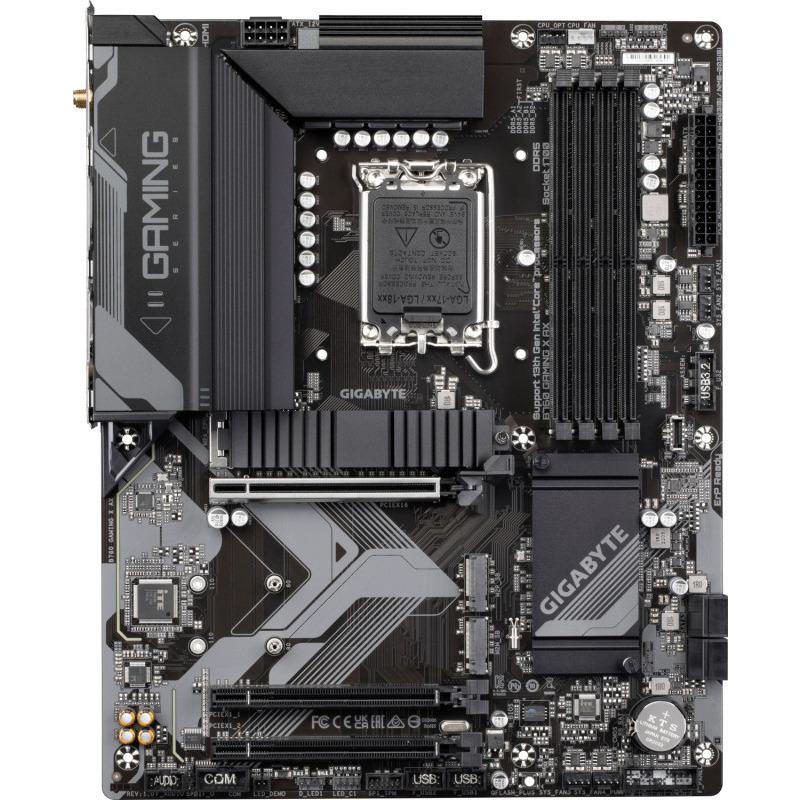

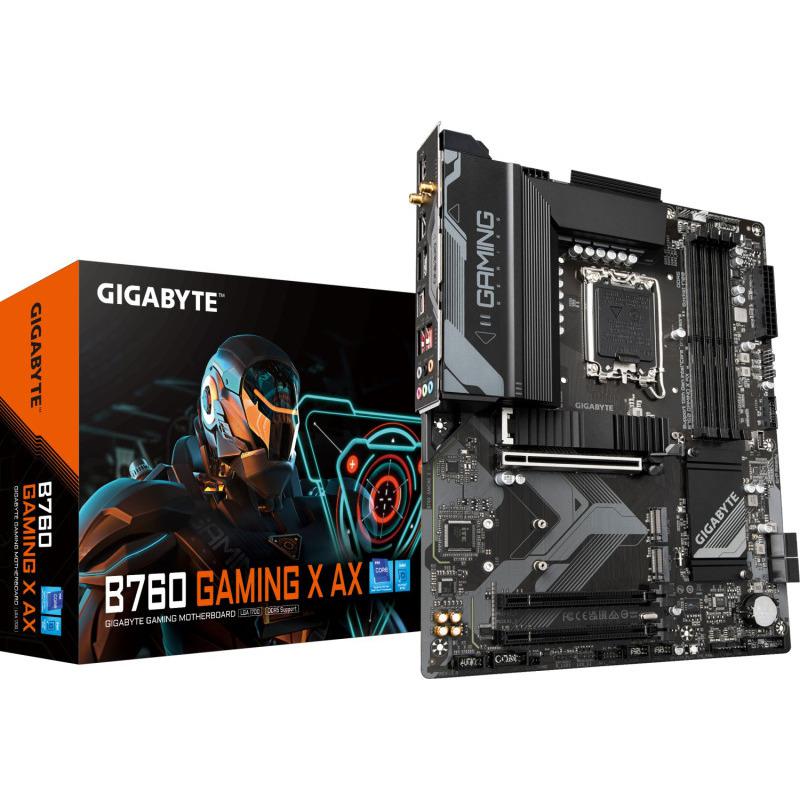

Placa de baza Gigabyte B760 GAMING X AX, Socket 1700, DDR5, ATX

SKU: B760 GAMING X AX

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

1.181,99 lei

Out of stock

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

20 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Warranty 1 year
  • Free 30-Day returns

Payment Methods:

Description

General
Recomandat pentru Gaming
Da
Format
ATX
Soclu procesor
1700
Producator chipset
Intel
Model chipset
B760
Procesoare suportate
Intel 12th/13th Generation Core/Pentium Gold/Celeron
Interfata grafica
PCI Express x16 4.0
RAID
0, 1, 5, 10
Placa video integrata
Necesita procesor cu tehnologia Intel HD Graphics
Placa audio integrata
7.1 Audio
Chipset audio
Realtek
Placa retea integrata
10/100/1000/2500 Mbps
Chipset retea
Realtek 2.5GbE
Numar SATA-III
4
M.2
3
Memorii Suportate
Tip memorie
DDR5
Memorie maxima
128 GB
Numar sloturi
4
Tehnologie
Dual channel
Frecvente suportate
7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz
Sloturi
PCI Express 4.0 x16
1 (x16)
PCI Express 3.0 x16
2 (x1 / x1)

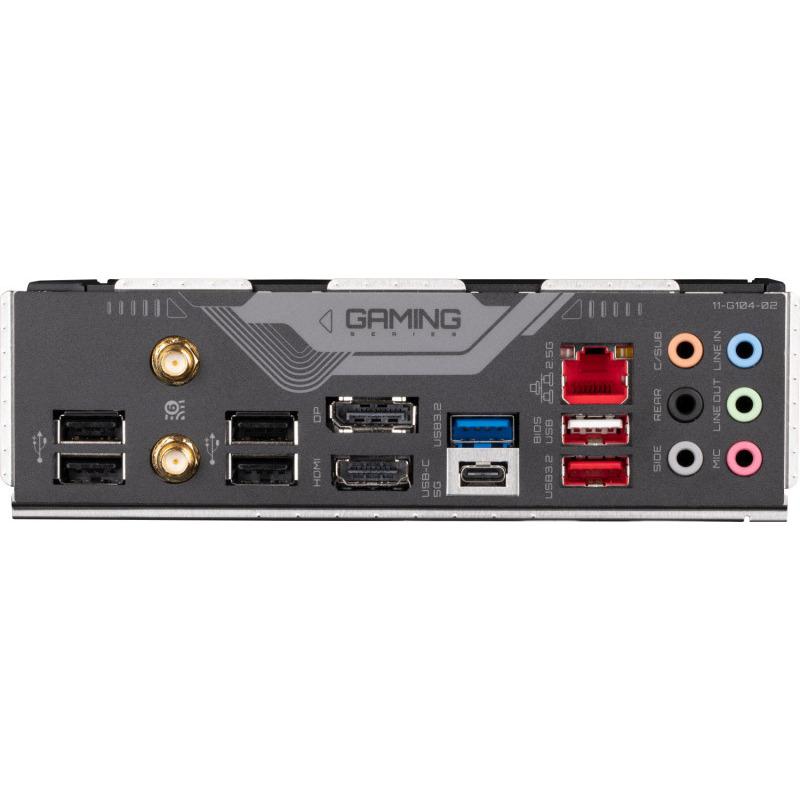

Conectori Back Panel
HDMI
1
Display Port
1
USB 2.0
5
USB 3.2 Gen1 tip A
1
USB 3.2 Gen2 tip A
1
USB 3.2 Gen2 tip C
1
RJ-45 LAN
1
Suport audio
7.1
Bluetooth
Bluetooth 5.2
Wireless
Wi-Fi 802.11 a/b/g/n/ac/ax, supporting 2.4/5/6 GHz
BIOS Flashback
Da

Specification

Overview

PCI
Serial-or-ParalelNo/No
Video-ConnectionHDMI/DP
Wi-FIYes
Onboard-CPUNo
RAID supportYes
Component forPC
USB connector typeUSB Type-A, USB Type-C
Memory channelsDual-channel
Processor manufacturerIntel
Top Wi-Fi standardWi-Fi 6E (802.11ax)
WLAN controller modelIntel Wi-Fi 6E AX211
Ethernet LANYes
HDMI ports quantity1
HDMI version2.0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
Audio output channels7.1 channels
PCI Express x16 (Gen 4.x) slots1
Supported storage drive typesHDD & SSD
USB 2.0 ports quantity5
HDCPYes
DisplayPort version1.2
DisplayPorts quantity1
VGA (D-Sub) ports quantity
Parallel processing technology supportNot supported
DVI-D ports quantity
DirectX version12.0
Windows operating systems supportedWindows 10 x64, Windows 11 x64
Model ChipsetB760
GamingDa
FormatATX
Soclu ProcesorSocket 1700
Tip Memorie:DDR5
Numar sloturi memorie4
Memorie maxima192 GB
Tip slot interfata graficaPCIe 4.0 x16
Chipset audio integratRealtek
Canale audio7.1
WirelessDa
USB Type-CDa
HDMIDa
ThunderboltNu
Sloturi M.23
RJ-45 LAN1
Number of memory slots4
Memory slots typeDIMM
Unbuffered memoryYes
Supported storage drive interfacesM.2, SATA III
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors4
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
EPS power connector (8-pin)Yes
BIOS typeUEFI AMI
BIOS memory size256 Mbit
Clear CMOS jumperYes
Supported memory typesDDR5-SDRAM
Maximum internal memory256 GB
ECC сompatibilityECC & Non-ECC
Number of HDDs supported4
Number of storage drives supported7
RAID levels0, 1, 5, 10
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Front panel connectorYes
TPM connectorYes
RGB LED pin headerYes
WiFi-AP antenna jack2
Ethernet interface type2.5 Gigabit Ethernet
Motherboard form factorATX
Motherboard chipset familyIntel
PC health monitoringFan, Temperature, Voltage, Water cooling
Number of M.2 (M) slots3
2nd M.2 largest key size22110
2nd M.2 highest PCI Express generation4.0
3rd M.2 largest key size22110
3rd M.2 highest PCI Express generation4.0
ACPI version5.0
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7
Lithium weight per battery0.07 g
Processor socketLGA 1700
Supported processor socketsLGA 1700
Maximum internal memory supported by processor192 GB
Maximum resolution4096 x 2304 pixels
Total number of SATA connectors4
12V power connectorYes
S/PDIF out connectorYes
Supported memory clock speeds7600 MHz
Supported memory module capacities1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Serial port headers1
Motherboard chipsetIntel B760 Express
Bundled softwareNorton Internet Security
PCI Express x16 slots3
1st M.2 highest PCI Express generation4.0
1st M.2 largest key size22110
Microphone inYes
BluetoothYes
Batteries includedYes
Bluetooth version5.2
Ethernet LAN (RJ-45) ports1
Height35 mm
Cables includedSATA
Country of originChina
Battery weight3 g
Number of battery cells1
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032
Package width335 mm
Package depth270 mm
Package height80 mm
Product colourBrown
Products per shipping (inner) case1 pc(s)
Headphone outputs6
Package weight19 kg
Width30.5 mm
Depth24.4 mm
ProducatorGIGABYTE
Garantie36
