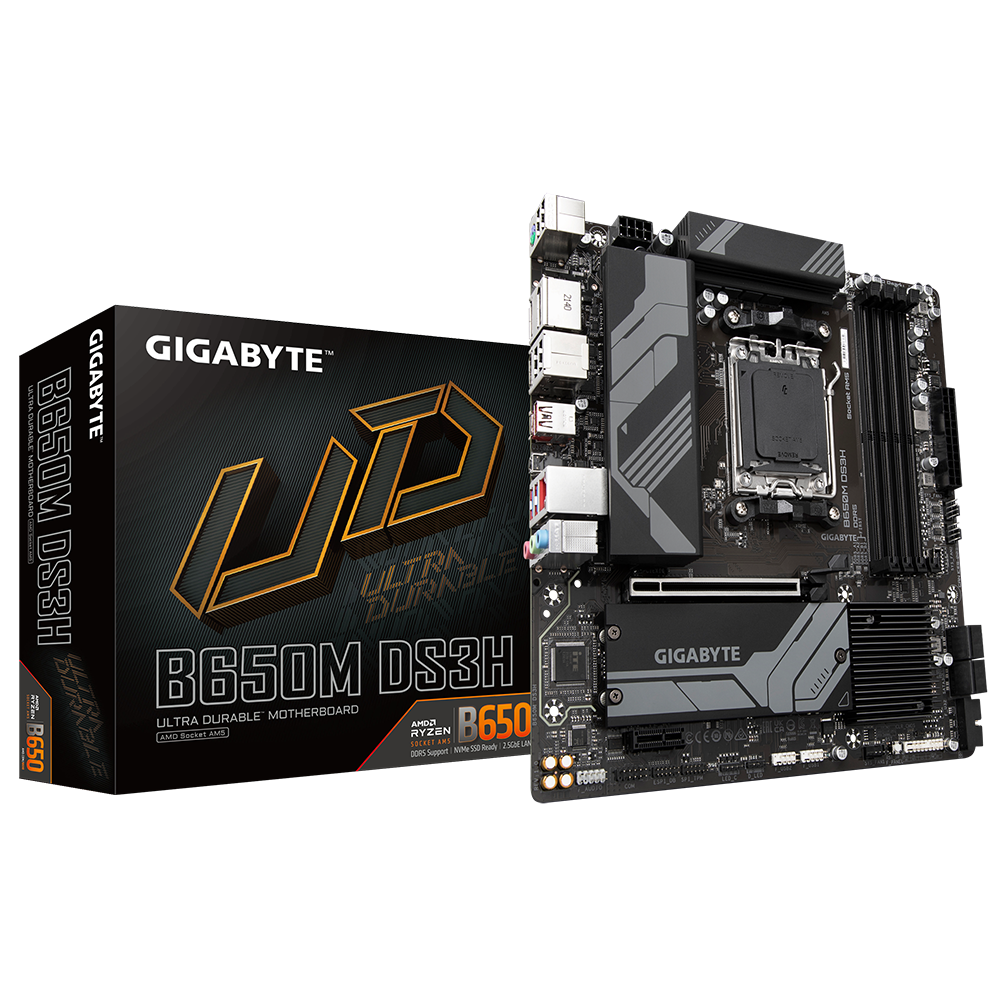

Placa de bază Gigabyte B650M DS3H AM5 - Image 1

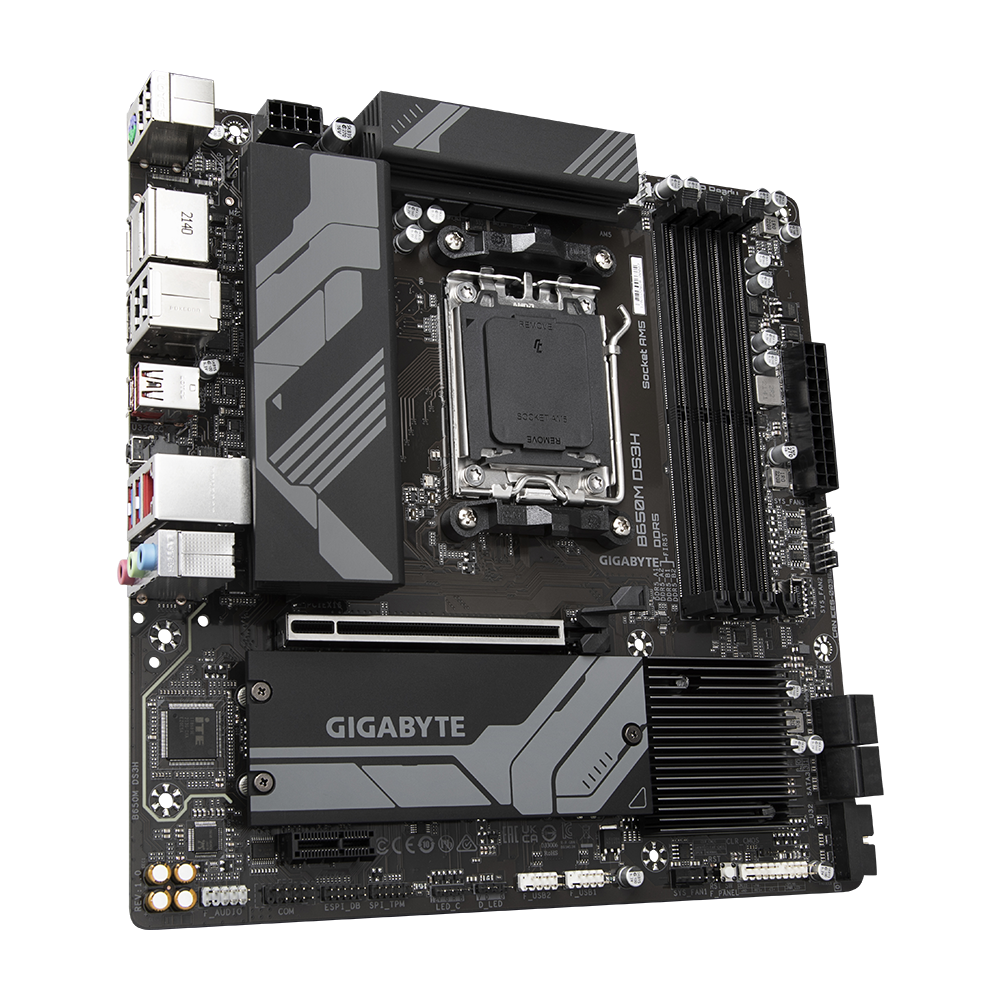

Placa de bază Gigabyte B650M DS3H AM5 - Image 3

Click to enlarge

Placa de bază Gigabyte B650M DS3H AM5

Name: Placa de bază Gigabyte B650M DS3H AM5
Brand: GIGABYTE
SKU: B650M DS3H
Availability: OutOfStock

SKU: B650M DS3H

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

1.116,00 lei

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

I have read and accept the privacy policy

Compare

20 People watching this product now!

Pick up from the Woodmart Store

To pick up today

Free

Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

Warranty 1 year

More details

Free 30-Day returns

More details

Payment Methods:

Description

Placa de baza Gigabyte B650M DS3H AM5 AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors Unparalleled Performance：Direct 6+2+1 Phases Digital VRM Solution Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support SuperSpeed Storage：2*PCIe 4.0 x4 M.2 Connectors Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 M.2 SSD Performance PCIe x16 EZ-Latch with Quick Release & Screwless Design Fast Networks：2.5GbE LAN Extended Connectivity：2*DP, HDMI, 2*USB-C® 10Gb/s Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Specification

Overview

PCI
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	No
Onboard-CPU	No
RAID support	Yes
Component for	PC
DisplayPort version	1.4
Memory channels	Dual-channel
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Processor manufacturer	AMD
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
USB 2.0 ports quantity	4
Audio output channels	7.1 channels
PCI Express x1 (Gen 3.x) slots	1
DisplayPorts quantity	2
Line-in	Yes
Audio Chip	Realtek ALC897
PCI Express x16 (Gen 4.x) slots	1
Supported storage drive types	HDD & SSD
Number of M.2 (M) slots	2
HDCP	Yes
Screws included	Yes
VGA (D-Sub) ports quantity
Parallel processing technology support	Not supported
DVI-D ports quantity
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	B650
Gaming	Nu
Format	Micro-ATX (mATX)
Soclu Procesor	Socket AM5
Tip Memorie:	DDR5
Numar sloturi memorie	4
Memorie maxima	256 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
PS/2 ports quantity	1
Motherboard form factor	micro ATX
Motherboard chipset family	AMD
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
Supported memory types	DDR5-SDRAM
Maximum internal memory	256 GB
Maximum internal memory per slot	64 GB
Number of HDDs supported	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Front panel connector	Yes
TPM connector	Yes
RGB LED pin header	Yes
Ethernet interface type	2.5 Gigabit Ethernet
LAN controller	Realtek RTL8125
2nd M.2 highest PCI Express generation	4.0
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Discrete graphics support	Yes
12V power connector	Yes
ECC сompatibility	Non-ECC
Number of storage drives supported	6
Serial port headers	1
RAID levels	0, 1, 10
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Number of chassis fan connectors	3
PC health monitoring	Fan, Temperature, Voltage
Motherboard chipset	AMD B650
Number of EPS power connectors (8-pin)	1
2nd M.2 largest key size	25110
Number of CPU fan connectors	1
1st M.2 highest PCI Express generation	4.0
Number of RGB LED pin headers	3
Supported memory clock speeds	4800,5200,5600,6000,6200,6400,6600,6800,7000,7200,7600,7800,8000 MHz
1st M.2 largest key size	22110
Microphone in	Yes
Headphone outputs	1
Batteries included	Yes
Ethernet LAN (RJ-45) ports	1
Height	35 mm
Width	244 mm
Country of origin	China
Package height	68 mm
Power source type	ATX
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Product colour	Brown
Products per shipping (inner) case	1 pc(s)
Package width	270 mm
Package depth	268 mm
Package weight	16.8 kg
Depth	24.4 mm
Producator	GIGABYTE
Garantie	36
