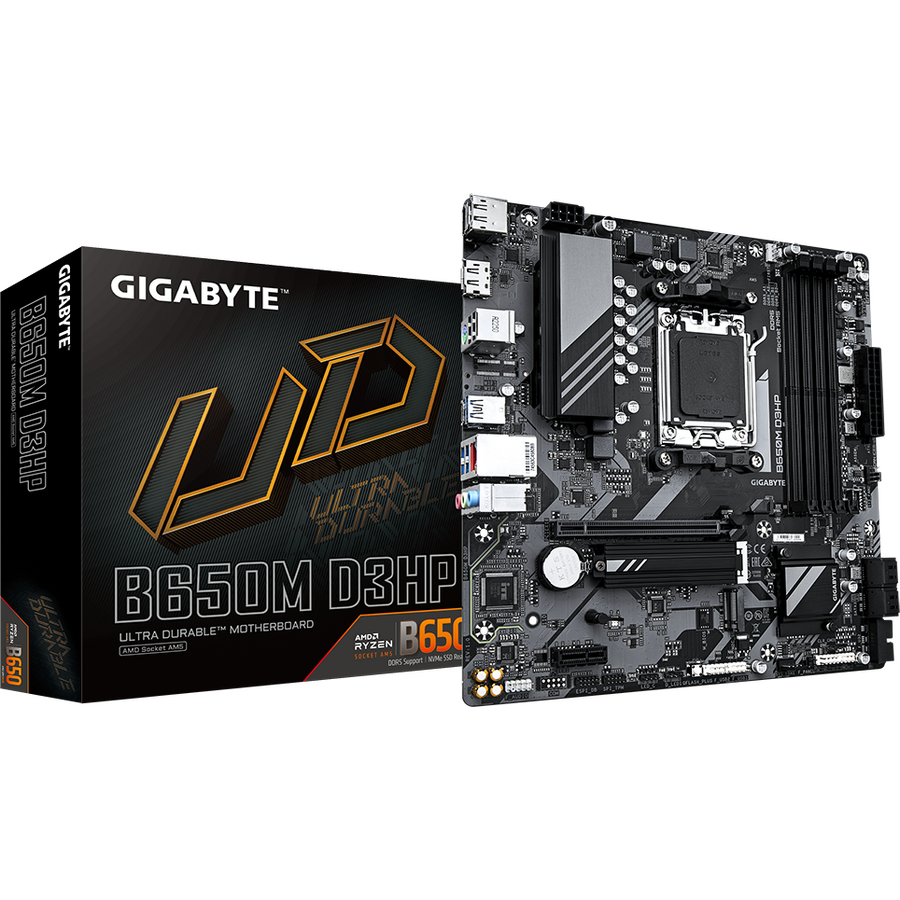

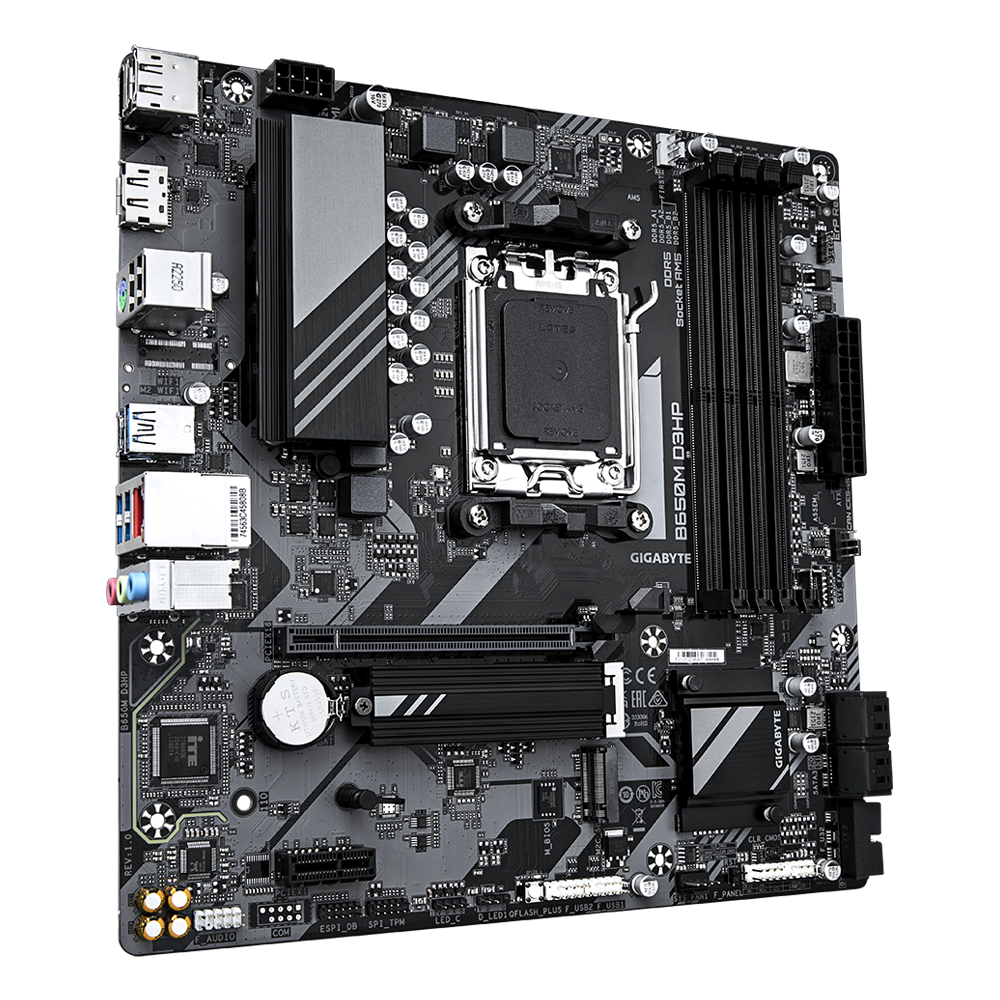

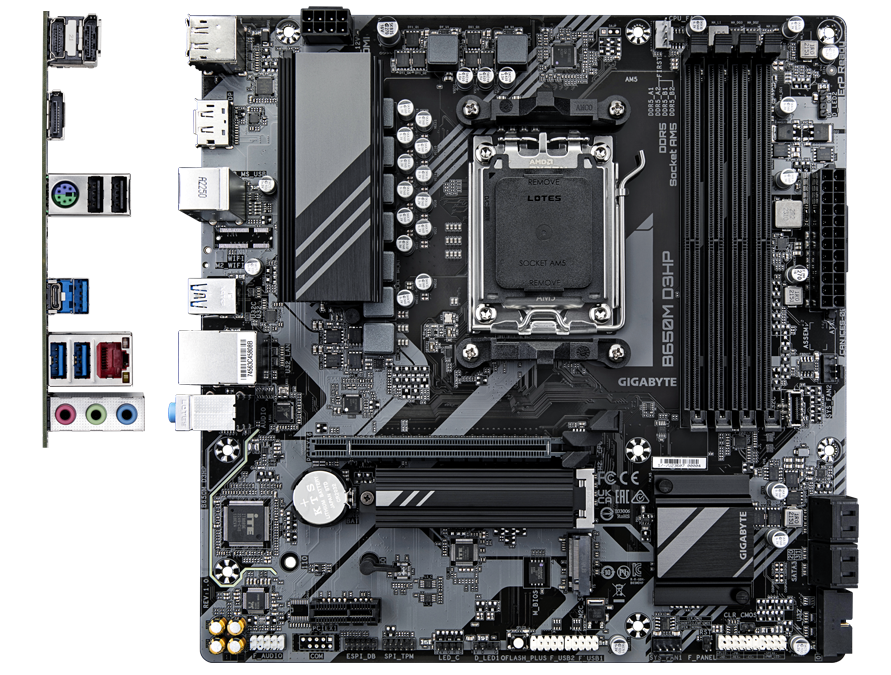

Placa de baza Gigabyte B650M D3HP, Socket AM5, DDR5, Micro-ATX

Name: Placa de baza Gigabyte B650M D3HP, Socket AM5, DDR5, Micro-ATX
Brand: GIGABYTE
SKU: B650M D3HP
Availability: InStock

SKU: B650M D3HP

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Original price was: 902,99 lei.Current price is: 532,99 lei.

16 in stock

Compare

13 People watching this product now!

Pick up from the Woodmart Store

To pick up today

Free

Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

Warranty 1 year

More details

Free 30-Day returns

More details

Payment Methods:

Description

Placa de baza GIGABYTE B650M D3HP AMD B650 AM5, 4x DDR5, 2x DP 1x HDMI, 1x PCIE x16, 1x PCIE x1, 2x M.2, 4x SATA 6GB/s

Specification

Overview

PCI
Serial-or-Paralel	No/No
Video-Connection	DP
Wi-FI	No
Onboard-CPU	No
RAID support	Yes
Component for	PC
DisplayPort version	1.4
Memory channels	Dual-channel
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Processor manufacturer	AMD
USB 2.0 ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
Audio output channels	7.1 channels
PCI Express x1 (Gen 3.x) slots	1
DisplayPorts quantity	2
Line-in	Yes
Audio Chip	Realtek ALC897
PCI Express x16 (Gen 4.x) slots	1
Supported storage drive types	HDD & SSD
Number of M.2 (M) slots	2
HDCP	Yes
Screws included	Yes
VGA (D-Sub) ports quantity
Parallel processing technology support	Not supported
DVI-D ports quantity
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	B650
Gaming	Nu
Soclu Procesor	Socket AM5
Tip Memorie:	DDR5
Numar sloturi memorie	4
Memorie maxima	256 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	2
EPS power connector (8-pin)	Yes
PS/2 ports quantity	1
Motherboard form factor	micro ATX
Motherboard chipset family	AMD
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
Supported memory types	DDR5-SDRAM
Maximum internal memory	256 GB
Maximum internal memory per slot	64 GB
Number of HDDs supported	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Front panel connector	Yes
TPM connector	Yes
RGB LED pin header	Yes
Ethernet interface type	2.5 Gigabit Ethernet
LAN controller	Realtek RTL8125
2nd M.2 largest key size	22110
2nd M.2 highest PCI Express generation	4.0
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Discrete graphics support	Yes
12V power connector	Yes
ECC сompatibility	Non-ECC
Number of storage drives supported	6
RAID levels	0, 1, 10
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
PC health monitoring	Fan, Temperature, Voltage
Motherboard chipset	AMD B650
Number of EPS power connectors (8-pin)	1
Number of CPU fan connectors	1
1st M.2 highest PCI Express generation	4.0
Number of RGB LED pin headers	3
1st M.2 largest key size	2580
Supported memory clock speeds	7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800 MHz
Microphone in	Yes
Headphone outputs	1
Batteries included	Yes
Ethernet LAN (RJ-45) ports	1
Height	35 mm
Width	244 mm
Country of origin	China
Package height	54 mm
Power source type	ATX
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Product colour	Brown
Products per shipping (inner) case	1 pc(s)
Package width	265 mm
Package depth	265 mm
Package weight	10.2 kg
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Depth	24.4 mm
Format	Micro-ATX
Producator	GIGABYTE
Garantie	36
