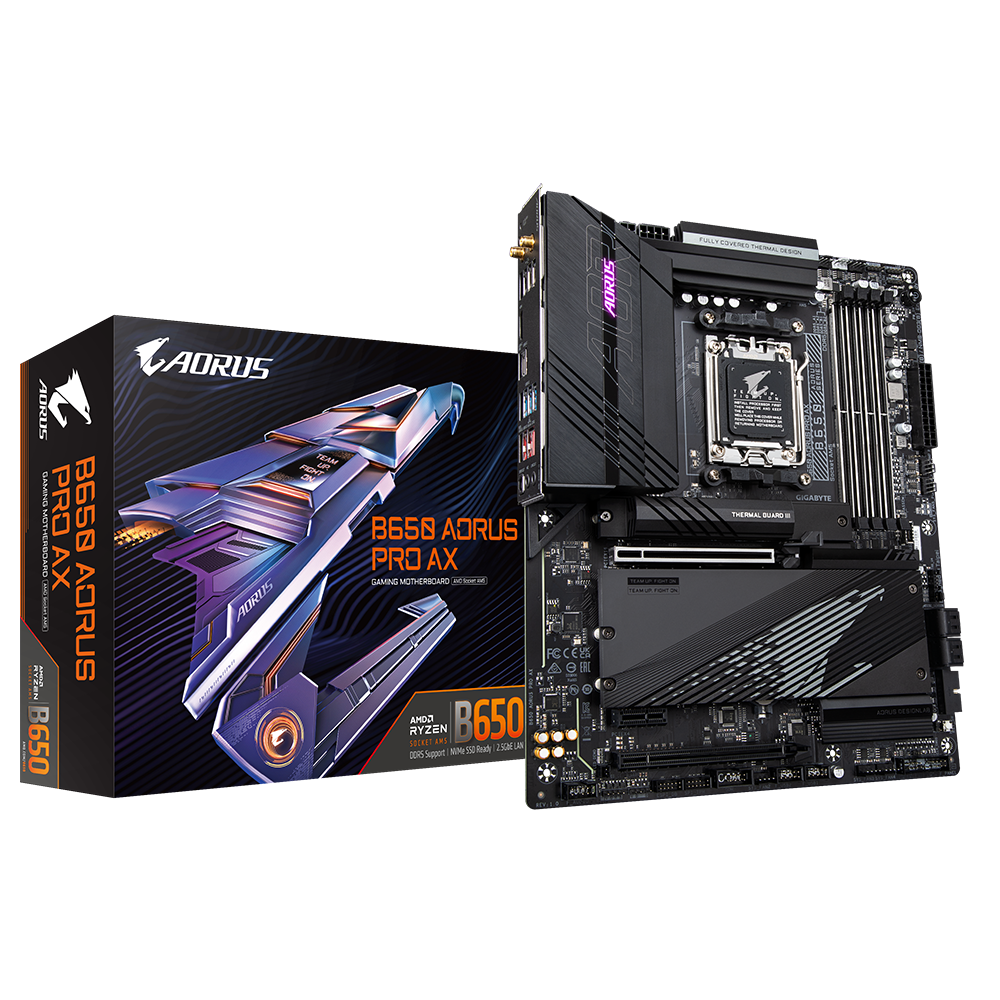

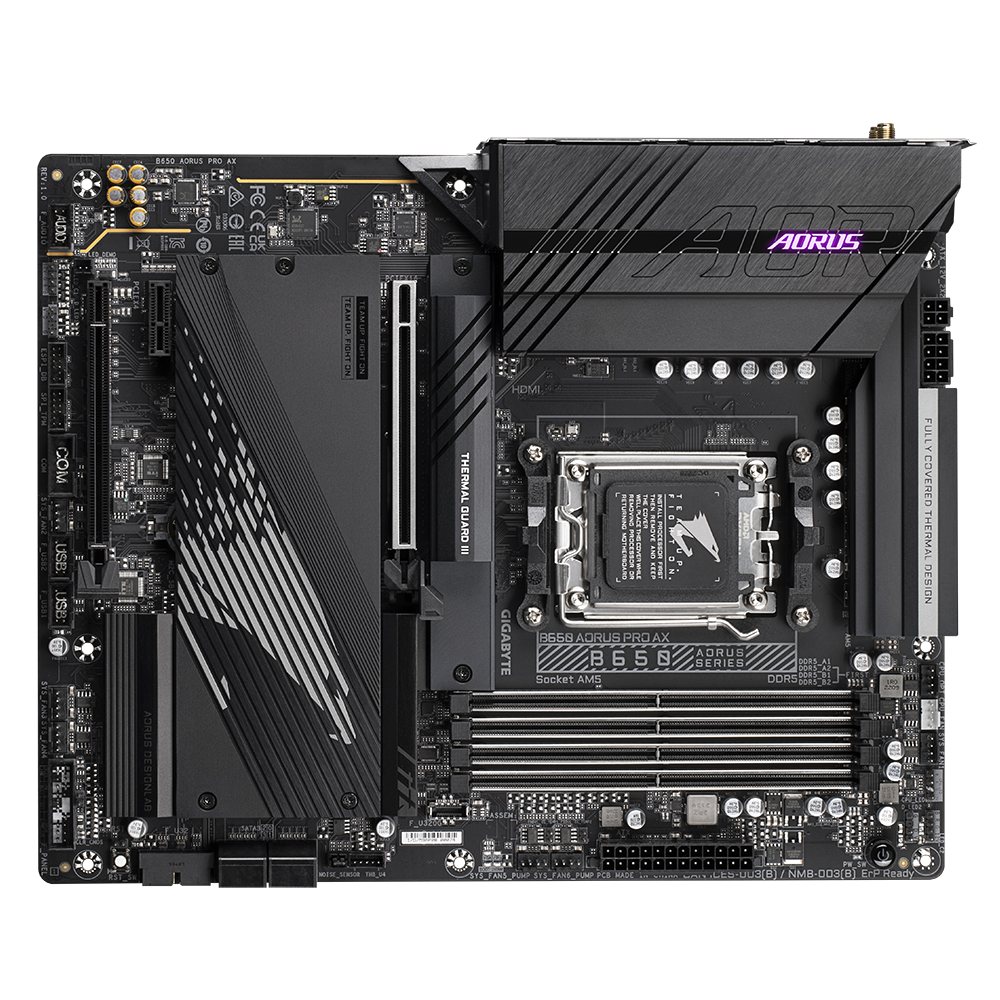

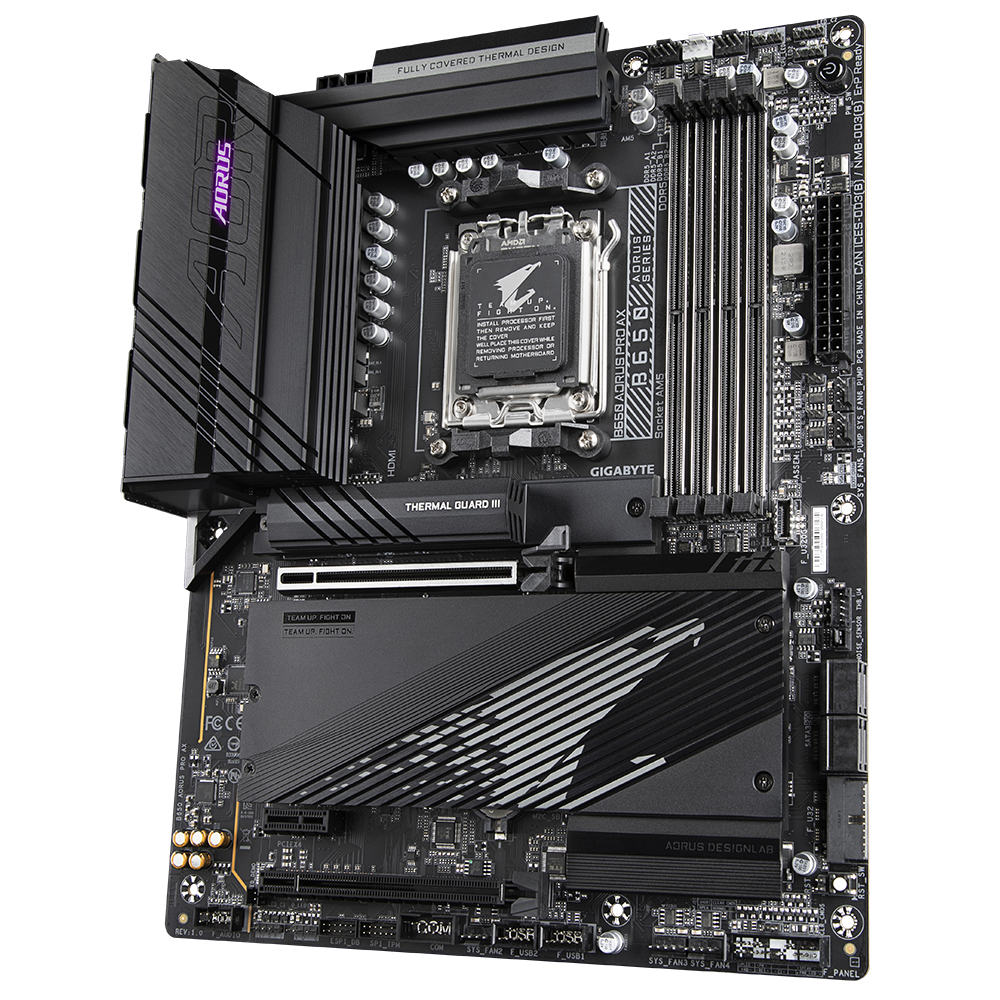

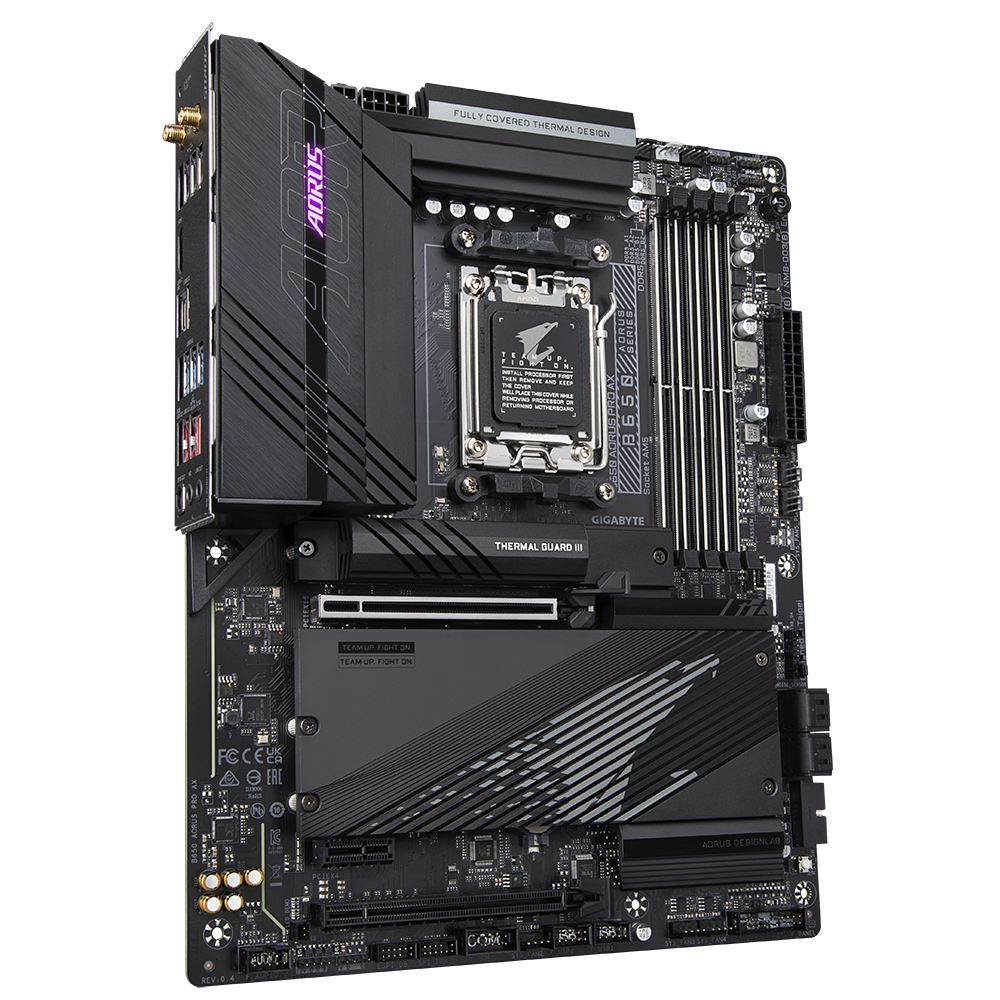

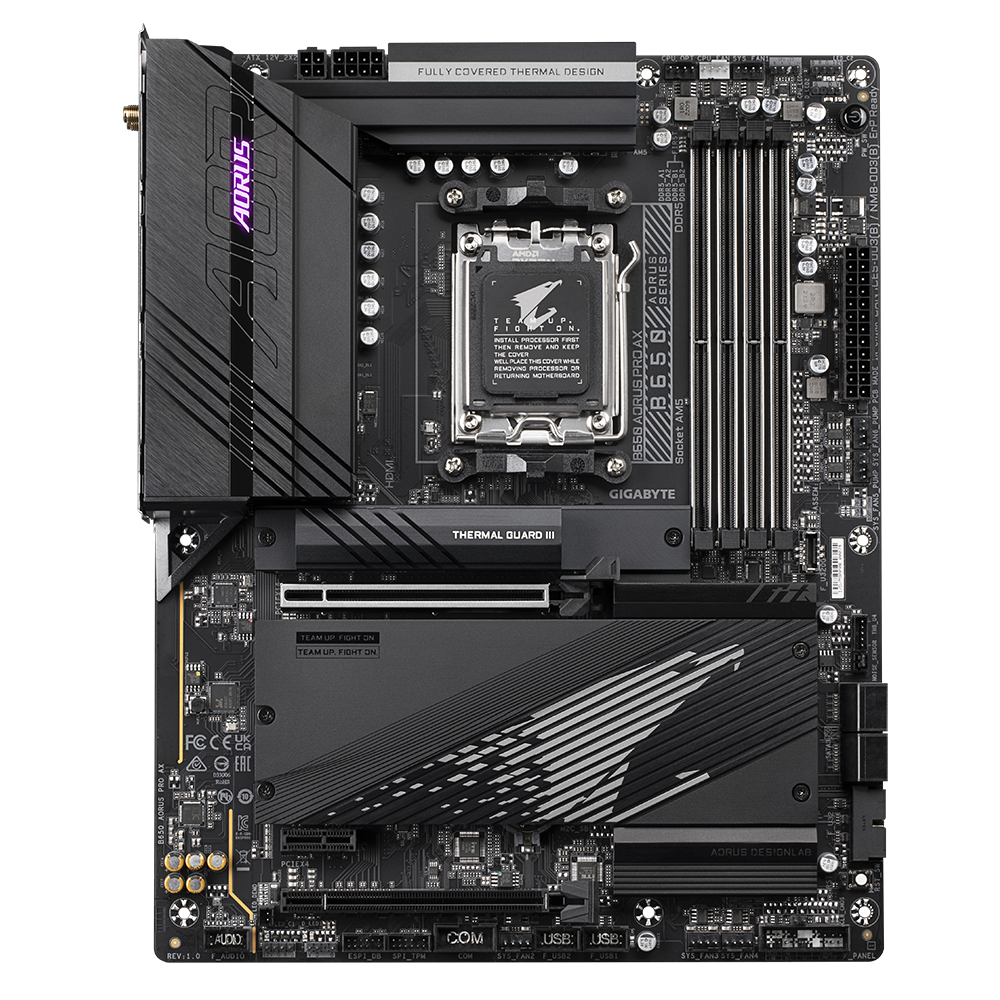

Placa de bază Gigabyte B650 AORUS PRO AX AM5

Name: Placa de bază Gigabyte B650 AORUS PRO AX AM5
Brand: GIGABYTE
SKU: B650 AORUS PRO AX
Availability: OutOfStock

SKU: B650 AORUS PRO AX

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

2.008,00 lei

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

I have read and accept the privacy policy

Compare

16 People watching this product now!

Pick up from the Woodmart Store

To pick up today

Free

Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

Warranty 1 year

More details

Free 30-Day returns

More details

Payment Methods:

Description

Placa de baza Gigabyte B650 AORUS PRO AX AM5, B650 Chipset, Supports 7000 series AMD Ryzen, 4x DIMM Slots, DDR5 6600MHz, PCIe Gen 4, 4x SATA 6Gb/s connectors, 3xM.2 Slot, 2.5GB LAN, USB Type-C, WIFI 6E, ATX

Specification

Overview

PCI
Serial-or-Paralel	No/No
Video-Connection	HDMI
Wi-FI	Yes
Onboard-CPU	No
RAID support	Yes
Component for	PC
USB connector type	USB Type-A, USB Type-C
Memory channels	Dual-channel
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
Processor manufacturer	AMD
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	3
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Audio output channels	7.1 channels
PCI Express x1 (Gen 3.x) slots	1
Line-in	Yes
Supported storage drive types	HDD & SSD
Cooling type	Passive
S/PDIF out port	Yes
PCI Express x1 slots	1
PCI Express x16 (Gen 4.x) slots	2
HDCP	Yes
Screws included	Yes
Digital audio optical out	1
VGA (D-Sub) ports quantity
Parallel processing technology support	Not supported
DVI-D ports quantity
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	B650
Gaming	Nu
Format	ATX
Soclu Procesor	Socket AM5
Tip Memorie:	DDR5
Numar sloturi memorie	4
Memorie maxima	192 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	3
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
Motherboard chipset family	AMD
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
Supported memory types	DDR5-SDRAM
Maximum internal memory	256 GB
Maximum internal memory per slot	64 GB
Number of HDDs supported	4
Number of storage drives supported	7
Front panel connector	Yes
Number of CPU fan connectors	2
TPM connector	Yes
RGB LED pin header	Yes
WiFi-AP antenna jack	2
Ethernet interface type	2.5 Gigabit Ethernet
Motherboard form factor	ATX
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Number of M.2 (M) slots	3
1st M.2 largest key size	25110
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	22110
2nd M.2 highest PCI Express generation	4.0
3rd M.2 highest PCI Express generation	4.0
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Antenna included	Yes
Maximum internal memory supported by processor	192 GB
USB 3.2 Gen 2x2 connectors	1
12V power connector	Yes
ECC сompatibility	Non-ECC
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Serial port headers	1
Thunderbolt headers	1
RAID levels	0, 1, 10
Number of chassis fan connectors	6
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Peripheral (Molex) power connectors (4-pin)	1
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
PCI Express x16 slots	2
Motherboard chipset	AMD B650
Number of EPS power connectors (8-pin)	1
3rd M.2 largest key size	25110
WLAN controller model	AMD RZ616
Audio Chip	Realtek ALC1220-VB
Number of RGB LED pin headers	5
Supported memory clock speeds	8000,7800,7600,7200,7000,6800,6666,6600,6400,6200,6000,5600,5200,4800,4400 MHz
Number of temperature sensor headers	2
Number of water pump connectors	5
Number of noise detection headers	1
Microphone in	Yes
Headphone outputs	1
Bluetooth	Yes
Product colour	Black
Batteries included	Yes
Bluetooth version	5.2
Ethernet LAN (RJ-45) ports	1
Height	35 mm
Cables included	SATA
Country of origin	Taiwan
Power source type	ATX
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Products per shipping (inner) case	1 pc(s)
Package weight	2.53 kg
Width	30.5 mm
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Depth	24.4 mm
Producator	GIGABYTE
Garantie	36
