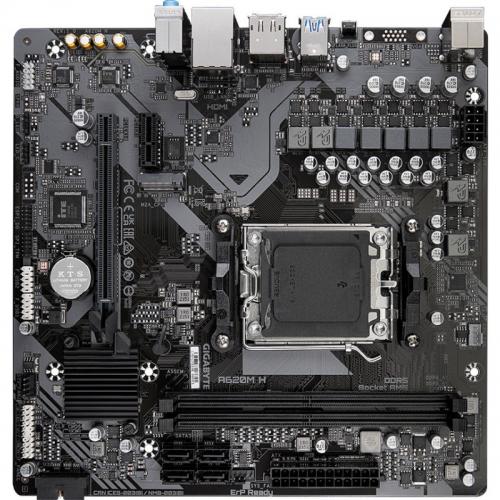

Placa de baza Gigabyte A620M H, Socket AM5, DDR5, Micro-ATX - Image 1

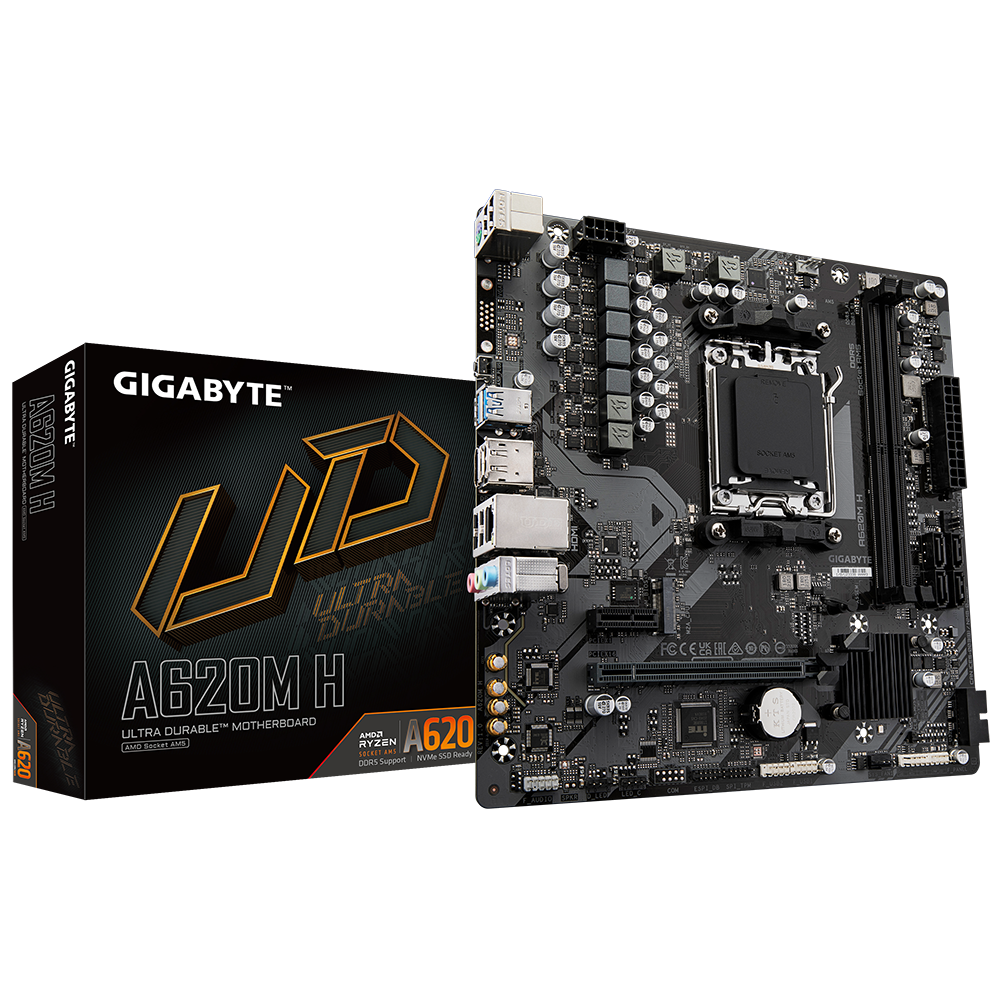

Placa de baza Gigabyte A620M H, Socket AM5, DDR5, Micro-ATX - Image 3

Placa de baza Gigabyte A620M H, Socket AM5, DDR5, Micro-ATX

Name: Placa de baza Gigabyte A620M H, Socket AM5, DDR5, Micro-ATX
Brand: GIGABYTE
SKU: A620M H
Availability: InStock

SKU: A620M H

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Original price was: 612,99 lei.Current price is: 421,00 lei.

7 in stock

Compare

16 People watching this product now!

Pick up from the Woodmart Store

To pick up today

Free

Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

Warranty 1 year

More details

Free 30-Day returns

More details

Payment Methods:

Description

Placa de baza Gigabyte A620M H AM5, 2x DDR5, 1x DisplayPort, 1x HDMI, 1x PCIe x16, 1x PCIe x1, 1x M.2, 4x SATA 6Gbps, mATX

Specification

Overview

PCI
Serial-or-Paralel	No/No
Video-Connection	DVI/HDMI
Wi-FI	No
Onboard-CPU	No
RAID support	Yes
Component for	PC
DisplayPort version	1.4
USB connector type	USB Type-A, USB Type-C
Ethernet interface type	Gigabit Ethernet
Memory channels	Dual-channel
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
Maximum internal memory	96 GB
Processor manufacturer	AMD
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
USB 2.0 ports quantity	4
Audio output channels	7.1 channels
PCI Express x16 slots	1
Number of memory slots	2
Supported storage drive types	HDD & SSD
Number of M.2 (M) slots	1
PCI Express x1 slots	1
HDCP	Yes
DisplayPorts quantity	1
VGA (D-Sub) ports quantity
Parallel processing technology support	Not supported
DVI-D ports quantity
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	A620
Gaming	Nu
Soclu Procesor	Socket AM5
Tip Memorie:	DDR5
Numar sloturi memorie	2
Memorie maxima	96 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	1
RJ-45 LAN	1
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
PS/2 ports quantity	1
Motherboard form factor	micro ATX
Motherboard chipset family	AMD
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
Supported memory types	DDR5-SDRAM
Number of HDDs supported	4
Front panel connector	Yes
TPM connector	Yes
RGB LED pin header	Yes
PC health monitoring	Fan, Temperature, Voltage, Water cooling
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Total number of SATA connectors	4
12V power connector	Yes
ECC сompatibility	Non-ECC
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
RAID levels	0, 1, 10
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series
Number of storage drives supported	5
Maximum internal memory supported by processor	96 GB
Motherboard chipset	AMD A620
Bundled software	Norton Internet Security LAN bandwidth management software
Supported memory clock speeds	4400,4800,5200,5600,6000,6200,6400,6800,7200 MHz
Microphone in	Yes
Height	35 mm
Width	230 mm
Cables included	SATA
Headphone outputs	3
Country of origin	China
Package height	54 mm
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Product colour	Brown
Package width	265 mm
Package depth	265 mm
Depth	225 mm
Package weight	897 g
Format	Micro-ATX
Producator	GIGABYTE
Garantie	36
