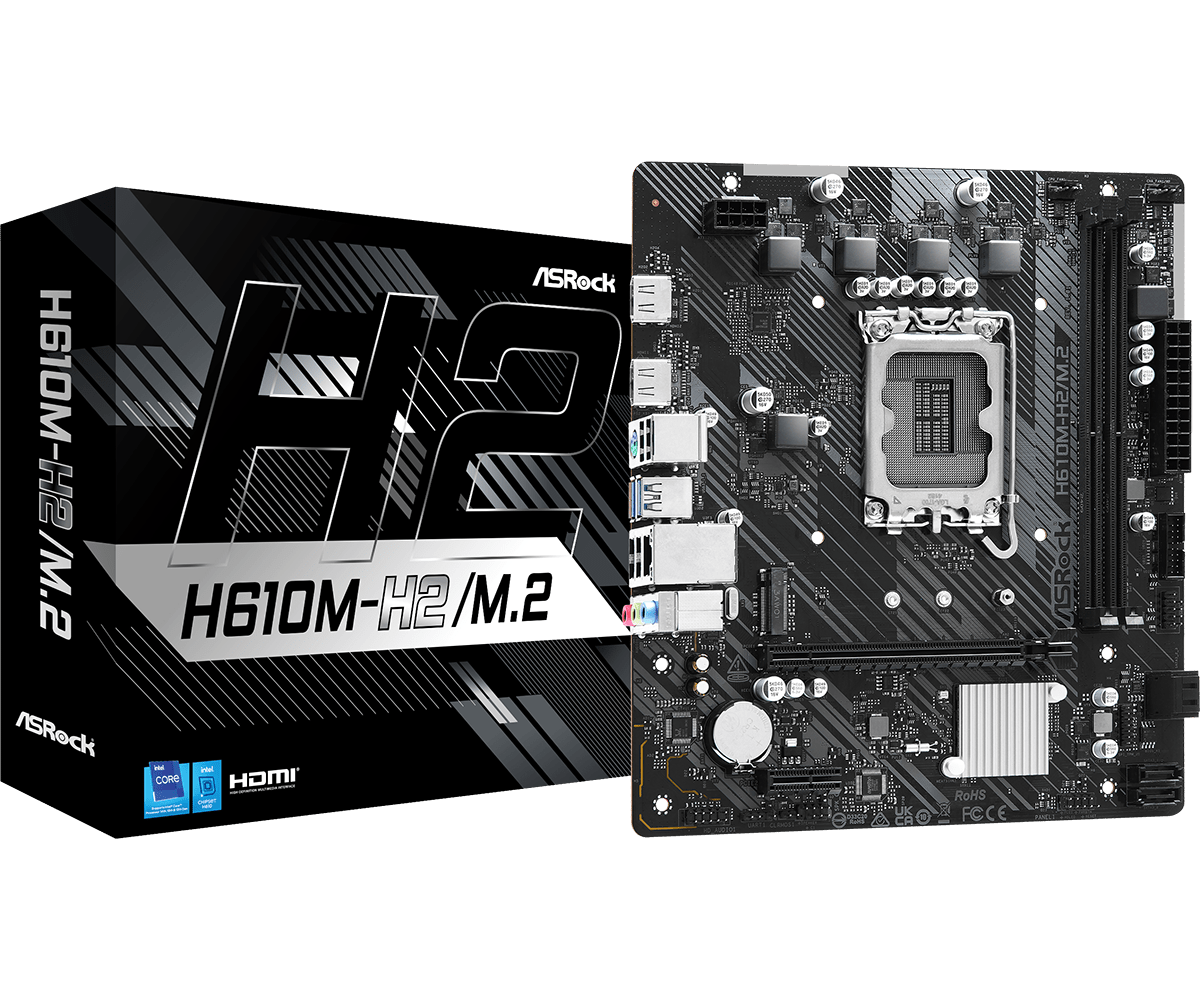

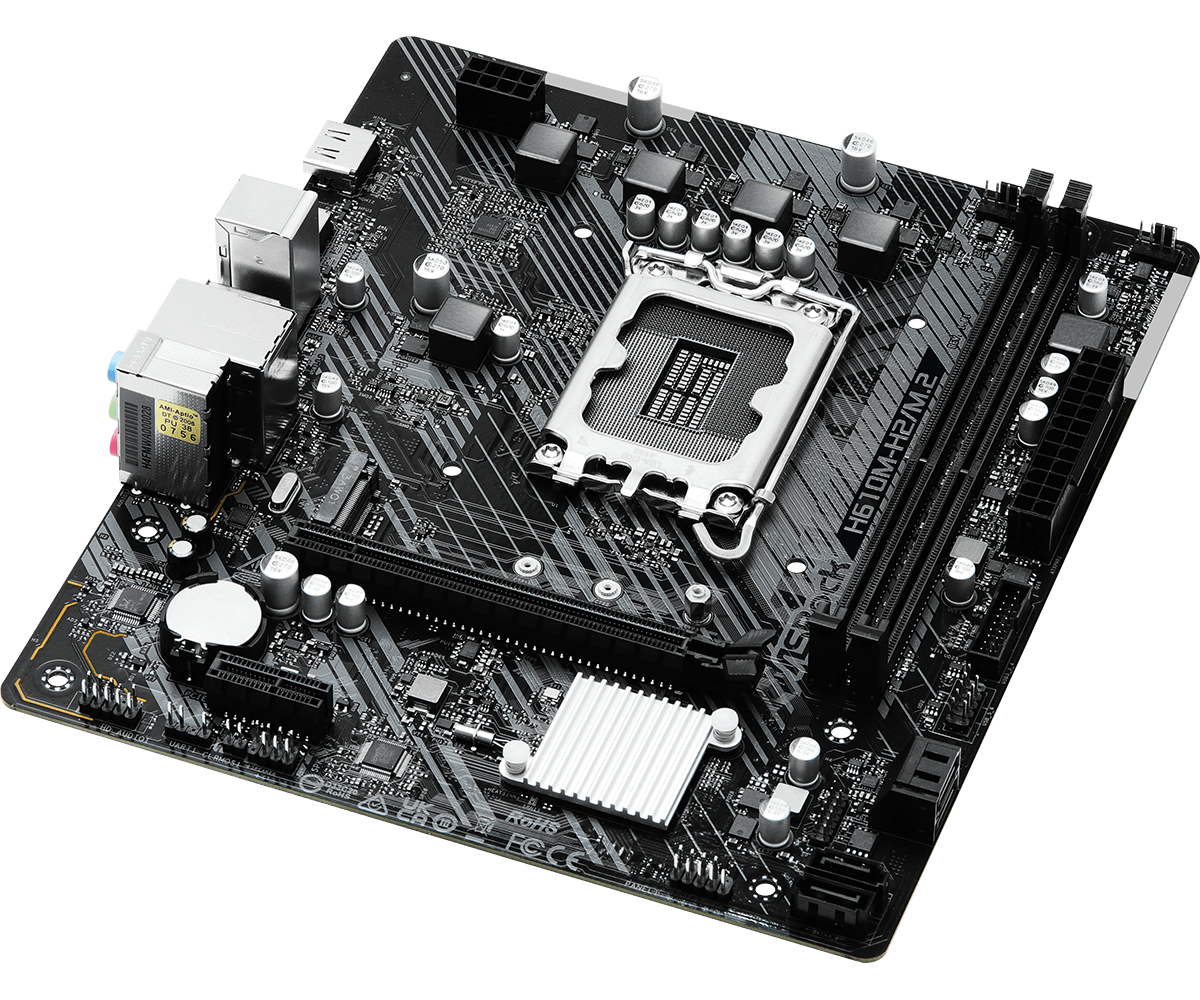

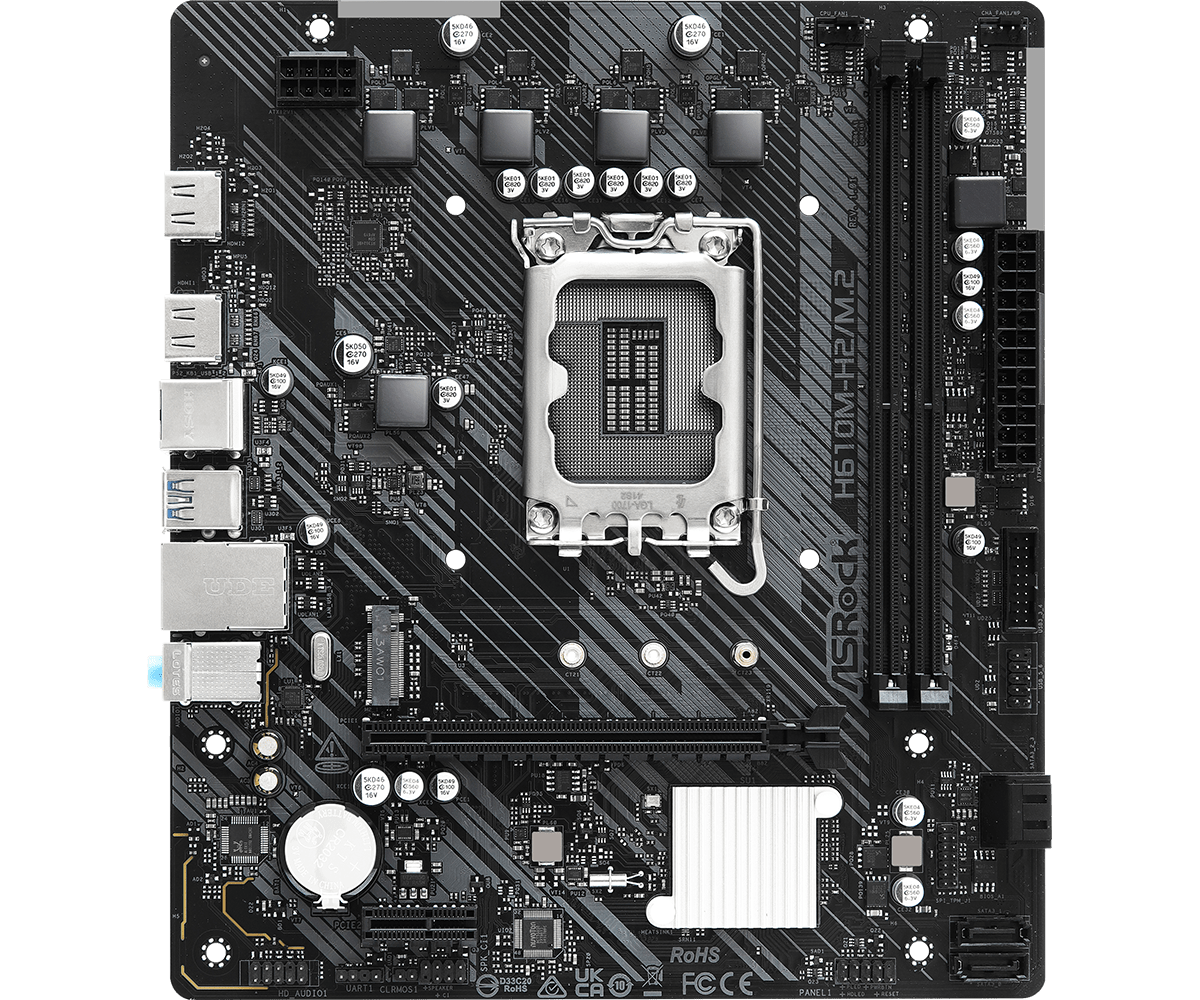

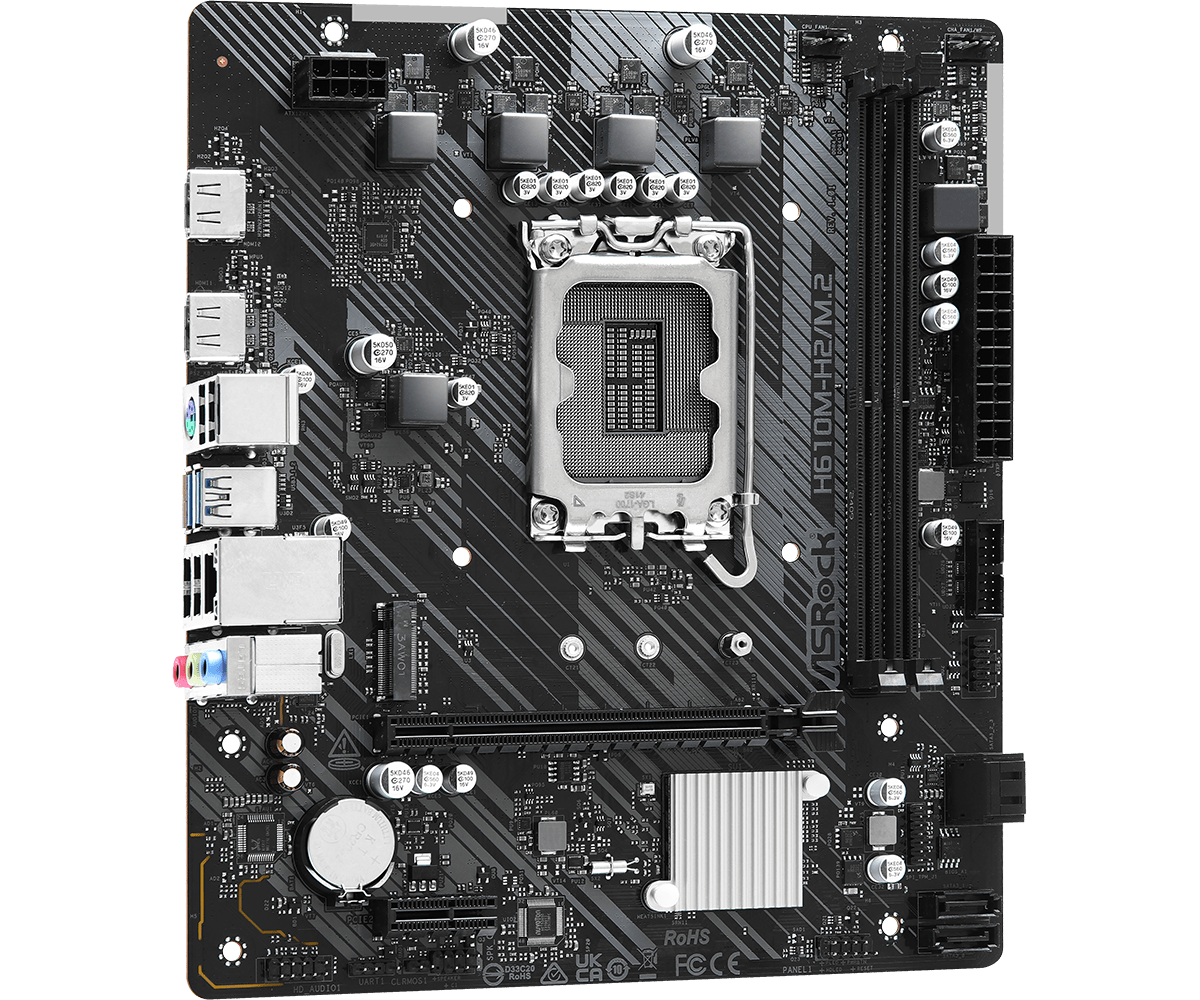

Placa de baza ASRock H610M-H2/M.2, Socket 1700, DDR4, Micro-ATX

Name: Placa de baza ASRock H610M-H2/M.2, Socket 1700, DDR4, Micro-ATX
Brand: ASROCK
SKU: H610M-H2/M.2
Availability: OutOfStock

SKU: H610M-H2/M.2

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

362,00 lei

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

I have read and accept the privacy policy

Compare

19 People watching this product now!

Pick up from the Woodmart Store

To pick up today

Free

Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

Warranty 1 year

More details

Free 30-Day returns

More details

Payment Methods:

Description

Placa de Baza ASROCK H610M-H2/M.2 LGA1700, 2x DDR4, 2x HDMI 1x PCIE 4.0 x16 1x PCIE 3.0 x1, 1x M.2, 4x SATA 6GB/s, mATX

Specification

Overview

PCI
Serial-or-Paralel	No/No
Video-Connection	HDMI
Wi-FI	No
Onboard-CPU	No
Component for	PC
Memory channels	Dual-channel
Processor manufacturer	Intel
Maximum internal memory	64 GB
Ethernet LAN	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
USB 2.0 ports quantity	4
Audio output channels	7.1 channels
PCI Express x1 (Gen 3.x) slots	1
Line-in	Yes
Audio Chip	Realtek ALC897
PCI Express x16 (Gen 4.x) slots	1
Number of memory slots	2
Supported storage drive types	HDD & SSD
Supported memory types	DDR4-SDRAM
LAN controller	Realtek RTL8111H
Number of M.2 (M) slots	1
HDCP	Yes
HDMI ports quantity	2
VGA (D-Sub) ports quantity
DVI-D ports quantity
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	H610
Gaming	Nu
Soclu Procesor	Socket 1700
Tip Memorie:	DDR4
Numar sloturi memorie	2
Memorie maxima	64 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	1
RJ-45 LAN	1
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
PS/2 ports quantity	1
Motherboard form factor	micro ATX
BIOS type	UEFI AMI
ECC сompatibility	ECC & Non-ECC
TPM connector	Yes
Motherboard chipset family	Intel
Processor socket	LGA 1700
12V power connector	Yes
BIOS memory size	128 Mbit
Chassis intrusion connector	Yes
USB 2.0 connectors	1
Number of chassis fan connectors	1
Supported memory clock speeds	3200 MHz
Motherboard chipset	Intel H610
Number of CPU fan connectors	1
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Microphone in	Yes
Ethernet LAN (RJ-45) ports	1
Product colour	Multicolour
Certification	– FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required)
Width	220 mm
Depth	193 mm
Format	Micro-ATX
Producator	ASROCK
Garantie	36
