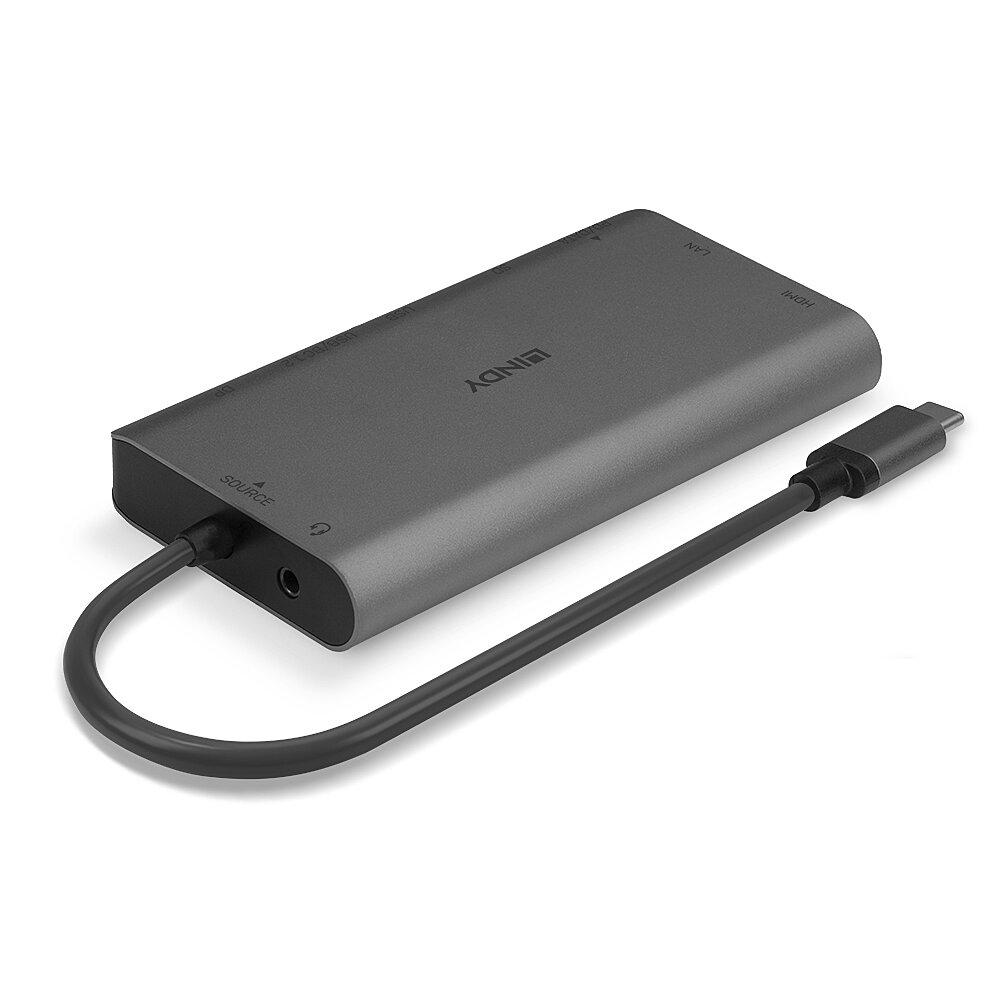

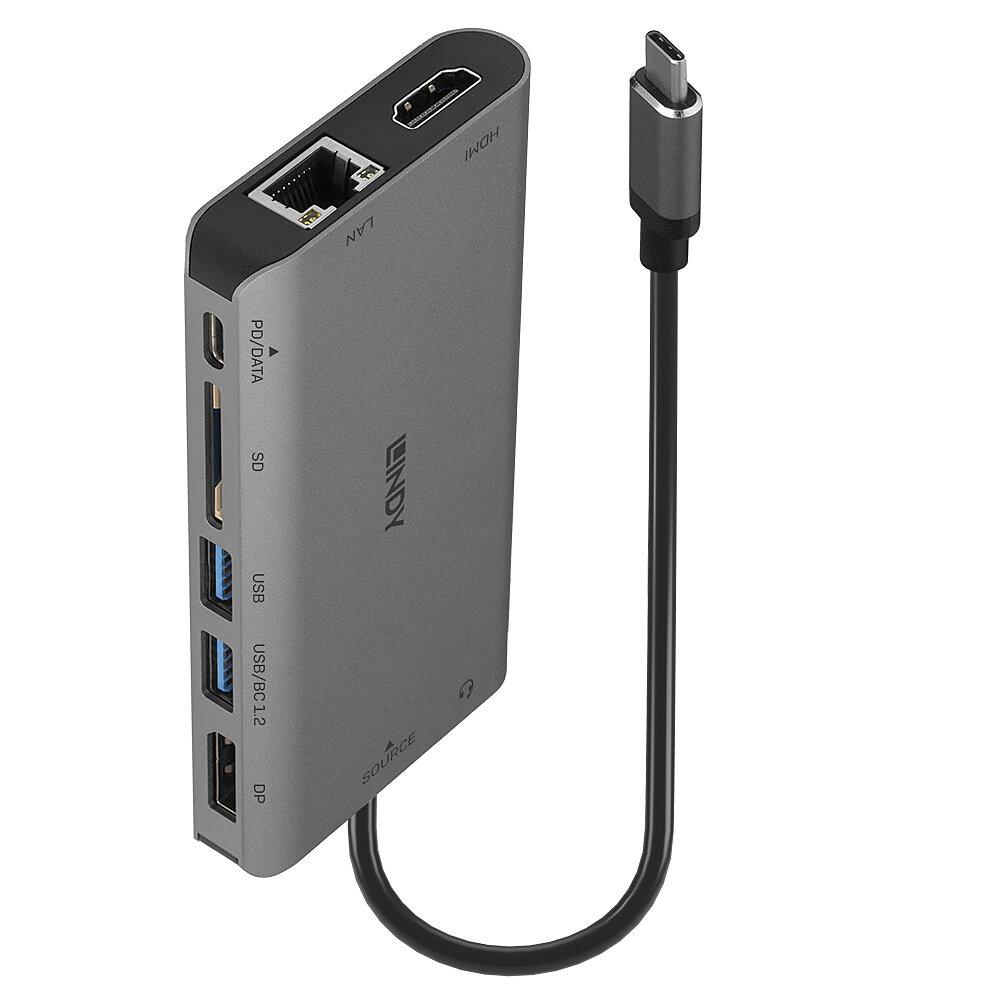

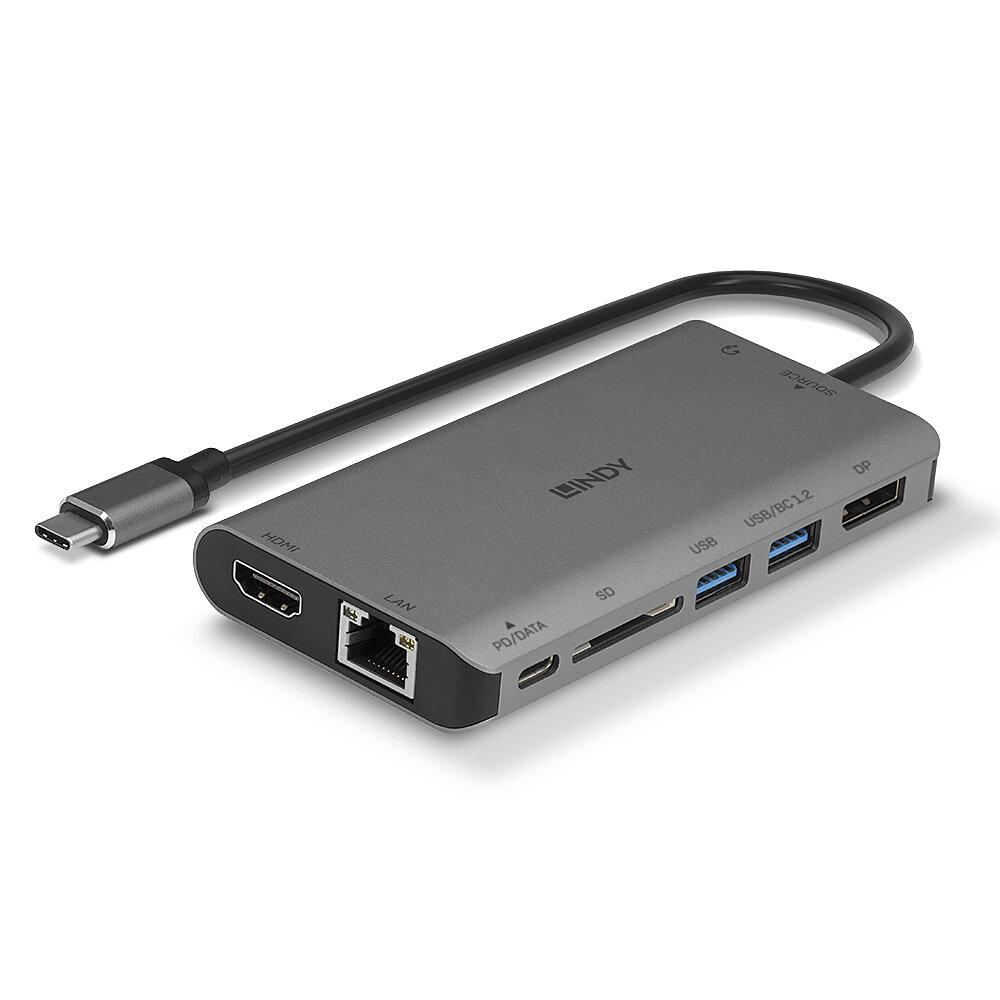

Mini Docking Station Lindy USB 3.2 Type C – 4K HDMI & DP, PD 3.0 100W, USB 3.2, Gigabit Ethernet, SD, Audio

SKU: LY-43323

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

583,99 lei

Out of stock

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

16 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Warranty 1 year
  • Free 30-Day returns

Payment Methods:

Description

Mini Docking Station Lindy USB 3.2 Type C – 4K HDMI & DP, PD 3.0 100W, USB 3.2, Gigabit Ethernet, SD, Audio

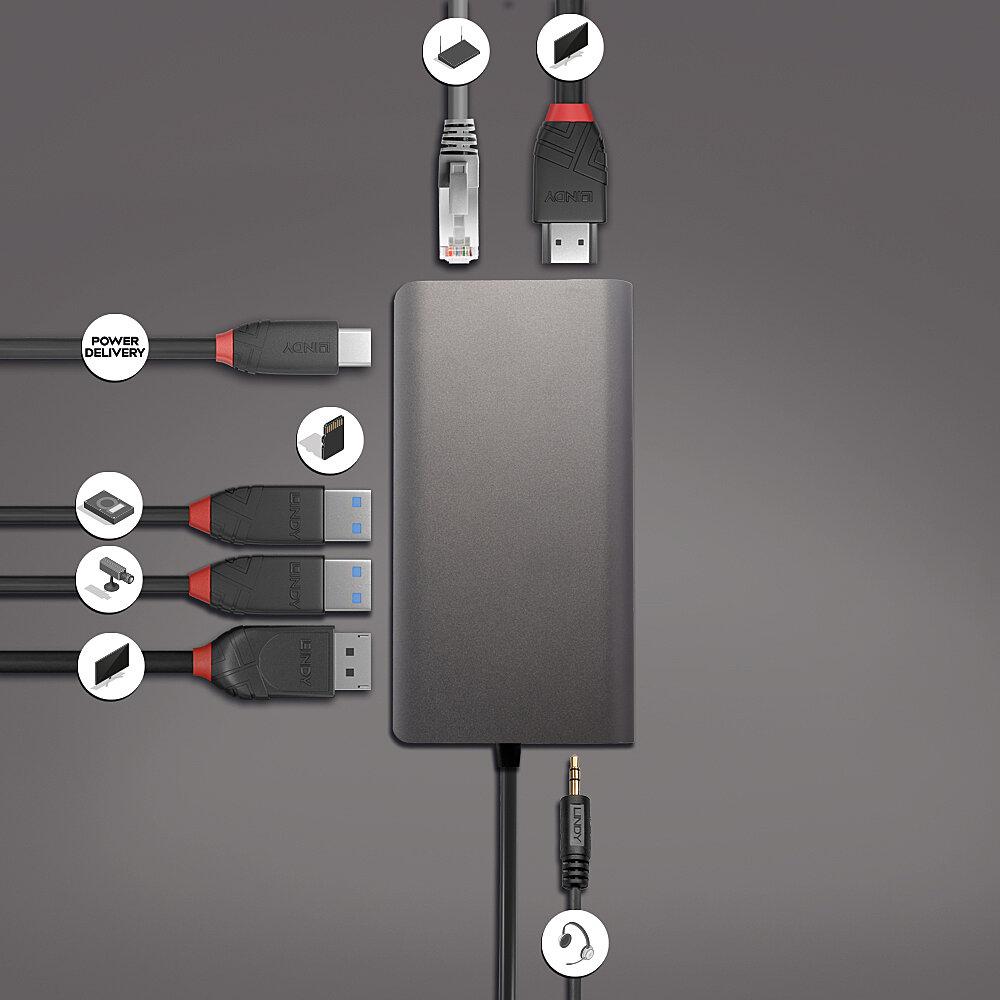

Connect your peripherals via a single USB Type C cable

Description

  • Adds 2 USB Type A ports & 1 USB Type C port (5Gbps), a 4K HDMI and DP port, Gigabit Ethernet and an Audio port to a laptop
  • Supports 3840×2160@30Hz for an HDMI or DP display and Full HD 1920×1080 for simultaneous use of HDMI and DP displays
  • Features DisplayPort Alternate Mode
  • USB Power Delivery 3.0 (100W) allows charging the laptop while using the Mini Dock

echnical details

Specifications

  • Interface: USB Type C to 1x HDMI / 1x DP / 1x RJ45 / 2x USB Type A / 1x USB Type C / 1x SD / 1x Audio
  • Interface Standard: USB 3.2 / 3.1 Gen 1 / USB 3.0, HDMI 1.4, DP 1.2, Gigabit LAN,  Audio (combo)
  • Supported Bandwidth: 5 Gbps, 10/100/1000 Mbps
  • Maximum Input Resolution: 3840×2160@30Hz
  • Maximum Output Resolution: 3840×2160@30Hz (HDMI), 3840×2160@30Hz (DP), simultaneous connection: 1920×1080
  • Chipset: VM3332, VL817, VL102, AU6438, RTL8153B, HS-100B
  • Compatibility: USB Type C or Thunderbolt 3 equipped computers with DisplayPort Alternate Mode support
  • Power Delivery: PD 3.0 up to 100W (20V 5A)
  • HDCP Support: HDCP 1.4
  • Supported Audio: Supports 48/44.1kHz audio sampling rate
  • Separate Audio Ports: 1x Audio combo port 3.5mm
  • Special Features: DisplayPort Alternate Mode, MST Extended display support, USB Type C Female port supports power and data, 1x  Battery Charging 1.2 port



Connectors

  • Inputs: 1 x USB Type C (Male)
  • Outputs: 1x HDMI (Female), 1x DisplayPort (Female), 1x RJ45 (Female), 2x USB Type A (Female), 1x USB Type C (Female) / 1x SD slot, 1x 3.5mm Audio (Female)
  • Power: 1 x USB Type C (Female) PD port



Physical Properties

  • Dimensions WxDxH: 116.5x61x16mm (4.59×2.4×0.63in)
  • Housing Material: Aluminium
  • Net Weight: 0.115kg (0.25lb)
  • Operating Temperature: 0° – 55°C (32°F – 131°F)
  • Storage Temperature: -10°C – 70°C (-14°F – 158°F)
  • Humidity: 0 – 85% RH (non-condensing)
  • Power Requirements: Bus-powered
  • Colour: Grey



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 150x137x120mm (5.91×5.39×0.79in)
  • Gross Weight: 0.15kg (0.33lb)
  • Warranty (Years): 2
  • Certificated: CE, UKCA, FCC, REACH & RoHS, California Proposition 65



Package Contents

  • USB 3.2 Type C Laptop Mini Dock
  • Lindy Manual

Specification

Overview

Connectivity technologyWired
Combo headphone/mic portYes
Card reader integratedYes
Data transfer rate5 Gbit/s
Ethernet LAN data rates1000 Mbit/s
Ethernet LANYes
HDMI ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
HDMI version1.4
USB 2.0 ports quantity
USB Power Delivery (USB PD)Yes
HDCPYes
Maximum refresh rate30 Hz
USB Power Delivery revision3.0
HDCP version1.4
DisplayPort version1.2
USB Power Delivery up to100 W
DisplayPorts quantity1
InterfataUSB-C
Tip port USBUSB 3.2
Porturipeste 5
Alimentare separataNu
Port HDMIDa
Port RJ-45Da
Card ReaderDa
CuloareGri
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
Maximum digital resolution3840 x 2160 pixels
HD type4K Ultra HD
Compatible memory cardsSD
Quantity per pack1 pc(s)
Storage temperature (T-T)-10 – 70 °C
Product colourBlack, Grey
Ethernet LAN (RJ-45) ports1
Operating relative humidity (H-H)0 – 85%
Power source typeUSB
Harmonized System (HS) code84733020
ManualYes
Housing materialAluminium
Package height120 mm
Compliance certificatesCE, REACH, RoHS
Microphone inNo
Headphone outputs
Package width150 mm
Operating temperature (T-T)0 – 55 °C
Package depth137 mm
Weight115 g
Package weight150 g
Height16 mm
Width116.5 mm
Depth61 mm
CertificationCE, UKCA, FCC, REACH & RoHS
ProducatorLINDY
Garantie24
