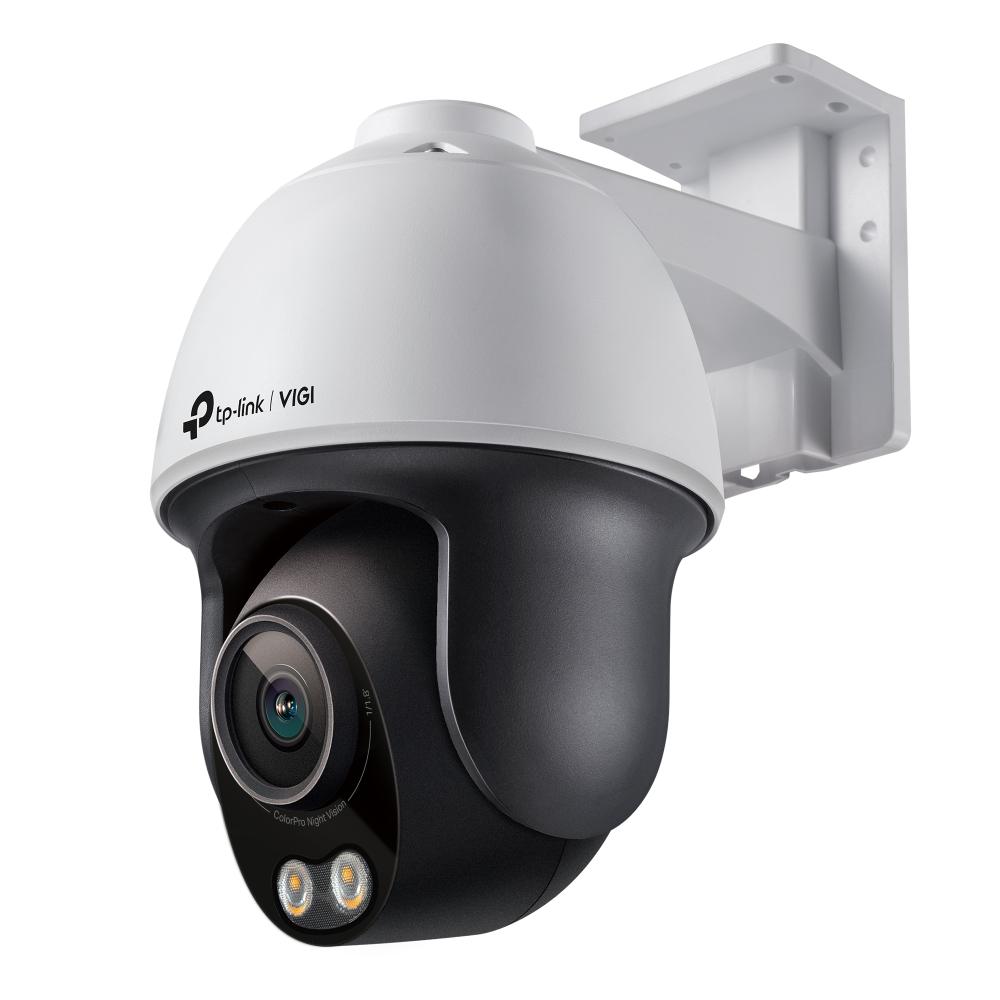

"TP-Link Camera IR de supraveghere Pan/Tilt pentru exterior VIGIVIGI C540S(4mm), Senzor imagine: CMOS 1/1.79"", Lentila 4mm, F.1.0,Weatherproof: IP66, Infrarosu: 30m, Detectare: 63m, Observare: 26m, Recunoastere: 13m, Identificare: 6m, Unghi vizualizare:Horizontal FOV: 104°, Vertical FOV: 55°

SKU: VIGI C540S(4MM)

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

1.036,99 lei

19 in stock

19 in stock

12 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Warranty 1 year
  • Free 30-Day returns

Payment Methods:

Description

“TP-Link Camera IR de supraveghere Pan/Tilt pentru exterior VIGI
VIGI C540S(4mm), Senzor imagine: CMOS 1/1.79″”, Lentila 4mm, F.1.0,Weatherproof: IP66, Infrarosu: 30m, Detectare: 63m, Observare: 26m, Recunoastere: 13m, Identificare: 6m, Unghi vizualizare:Horizontal FOV: 104°, Vertical FOV: 55°, Diagonal FOV: 127°
, Rezolutie maxima: 4 MPX, 2688 x 1520, Dimensiuni:120 × 172 × 203 mm, Interfata: 1 RJ45 10/100M Self-Adaptive Ethernet Port, POE, Port card MicroSD (max 256GB), Microfon incorporat, Difuzor incorporat.”

Specification

Overview

Obiectiv fix4mm
InfraRed30m
Obiectiv varifocal2.7–12mm
Wi-FINo
Rezoluție camerăHD 4MP
TehnologieIP
Camera WirelessNo
Format camerăPan&Tilt
Connectivity technologyWired
Password protectionYes
Card reader integratedYes
Ethernet LANYes
Storage relative humidity (H-H)0 – 95%
Web browserYes
PTZ controlYes
Wide Dynamic Range (WDR)Yes
Reset buttonYes
Ethernet interface typeFast Ethernet
IP address filteringYes
Audio output channels1.0 channels
Video streamingYes
Maximum memory card size256 GB
HTTPS encryptionYes
Night visionYes
Placement supportedIndoor & outdoor
Camera pan controlYes
Camera tilt controlYes
Number of lenses1
Night vision distance30 m
LED typeIR
Privacy maskingYes
Built-in HDDNo
DC output voltage12
Number of sensors1
Day/night modeYes
Mounting typeCeiling/wall
Frame rate30 fps
Built-in microphoneYes
Built-in speaker(s)Yes
Smartphone/tablet remote supportYes
Sensor typeCMOS
Width120 mm
Live viewYes
DC-in jackYes
Compatible memory cardsMicroSD (TransFlash)
Ethernet LAN (RJ-45) ports1
Product colourBlack, White
Operating relative humidity (H-H)0 – 95%
Housing materialPlastic
BluetoothNo
Operating temperature (T-T)-30 – 60 °C
Storage temperature (T-T)-40 – 60 °C
Power source typeDC, PoE
Audio system2-way
Depth172 mm
Optical sensor size25.4 / 3 mm (1 / 3)
Power consumption (max)13.13 W
Total megapixels4 MP
International Protection (IP) codeIP66
Height203 mm
Number of cameras1
Form factorTurret
Human and vehicle targets classificationYes
Preset pointsYes
Lens diameter4 mm
Back Light Compensation (BLC)Yes
Digital Wide Dynamic Range (DWDR)Yes
Region of Interest (ROI) encodingYes
Video compression formatsH.264, H.264+, H.265, H.265+
Supported network protocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Number of simultaneous live view channels3 channels
MirrorYes
Digest authenticationYes
Highlight Compensation (HLC)Yes
Audio input channels1.0 channels
Lens viewing angle, diagonal127°
Maximum resolution2688 x 1520 pixels
Lens viewing angle, vertical55°
Bit rate256 Kbps – 6 Mbps
Bit rate range0 – 64 Kbit/s
Image quality adjustmentBrightness, Contrast, DNR, Mirror, Saturation, Sharpness
CertificationCE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC
Identify distance6 m

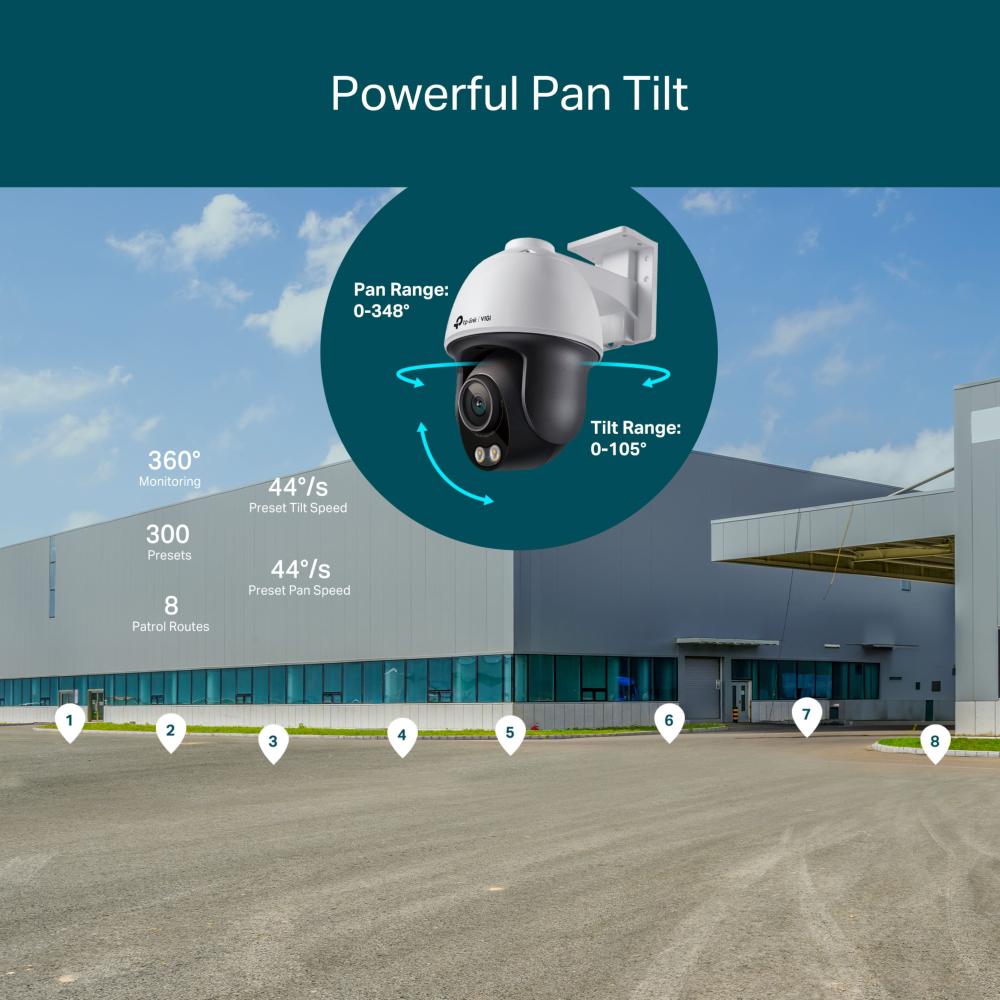

Tilt speed44 °/sec
Pan range0 – 348°
Pan speed44 °/sec
Recognize distance13 m
Detect distance63 m
Lens viewing angle, horizontal104°
PTZ modesAuto scan, Preset point
Tilt angle range0 – 105°
Observe distance26 m
Sample rates0 – 8 kHz
Intelligent Video Surveillance (IVS) system featuresAbandoned object, Human detection, Vehicle detection
Behavior analysisIntrusion detection, Line crossing detection, Region exiting detection
Power consumption (Power over Ethernet (PoE))16.47 W
ProducatorTP-LINK
Garantie36
