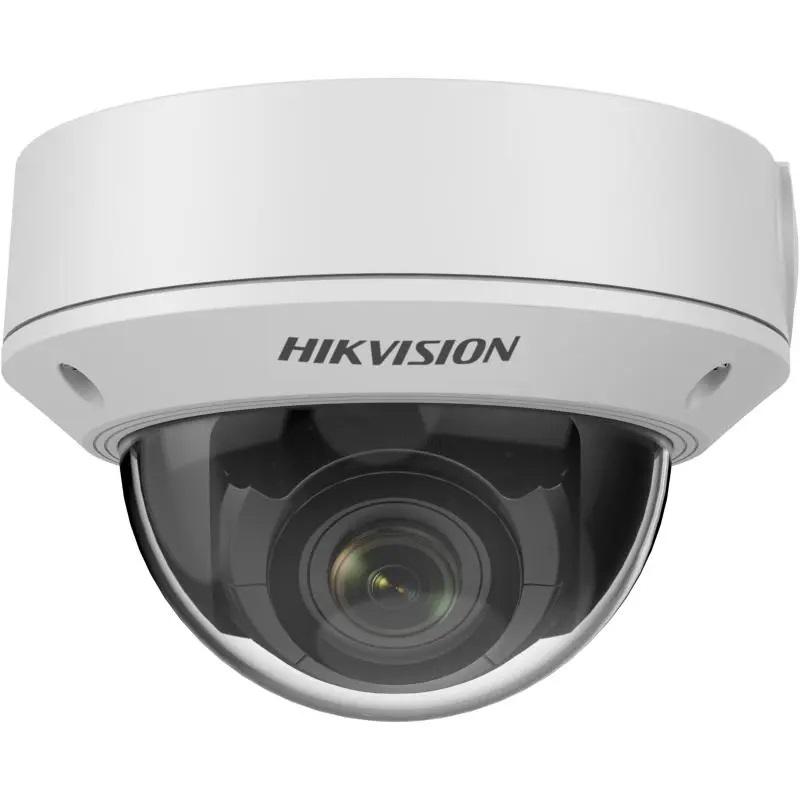

Camera supraveghere Hikvision IP dome DS-2CD1743G2-IZ(2.8-12mm); 4MP; 1/3" Progressive Scan CMOS, rezolutie: 2560 × 1440@20fps, iluminare: Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR, lentila varifocala motorizata: 2.8 la 12 mm, distanta IR: 30m,Exir2.0, compresie: H.265+, 120 dB WDR/IR Cut

SKU: DS-2CD1743G2-IZ

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

2.084,99 lei

8 in stock

8 in stock

14 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Warranty 1 year
  • Free 30-Day returns

Payment Methods:

Description

Camera supraveghere Hikvision IP dome DS-2CD1743G2-IZ(2.8-12mm); 4MP; 1/3″ Progressive Scan CMOS, rezolutie: 2560 × 1440@20fps, iluminare: Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR, lentila varifocala motorizata: 2.8 la 12 mm, distanta IR: 30m,Exir2.0, compresie: H.265+, 120 dB WDR/IR Cut Filter/BLC/3D DNR, slot microSD card, pana256 GB, interfata retea: 1 RJ45 10 M/100 M self-adaptive Ethernet port, alimentare: 12 VDC si PoE: 802.3af, Class 3, IP67, temperatura de functionare: -30 °C to 60 °C, dimensiuni: Ø 141 mm × 99.9 mm, greutate: 820 g. Accesorii optionale: DS-1250ZJ,DS-1258ZJ-L,DS-1280ZJ-DM21,DS- 1275ZJ-SUS,DS-1271ZJ-135,DS-1273ZJ-135,DS-1473ZJ-135B.

Specification

Overview

Format camerăDome
Obiectiv fixNo
InfraRed30m
Obiectiv varifocal2.8-12mm
Wi-FINo
Rezoluție camerăHD 4MP
TehnologieIP
Camera WirelessNo
Connectivity technologyWired
Password protectionYes
Card reader integratedYes
Ethernet LANYes
Storage relative humidity (H-H)0 – 95%
Protection featuresWater resistant, Dust resistant
Wide Dynamic Range (WDR)Yes
Reset buttonYes
Quality of Service (QoS) supportYes
Ethernet interface typeFast Ethernet
Web-based managementYes
Mounting typeCeiling
Video streamingYes
Number of users32 user(s)
Maximum memory card size256 GB
Night visionYes
Placement supportedIndoor & outdoor
Form factorDome
Number of lenses1
Night vision distance30 m
LED typeIR
Infra-red wavelength850 nm
Privacy maskingYes
Built-in HDDNo
Video motion detectionYes
Active tampering alarmYes
DC output voltage12
Number of sensors1
Privacy protectionYes
Progressive scanYes
Noise reduction technology3D noise reduction
Day/night modeYes
Maximum resolution2560 x 1440 pixels
Frame rate30 fps
Sensor typeCMOS
Live viewYes
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
Ethernet LAN (RJ-45) ports1
Product colourWhite
Operating relative humidity (H-H)0 – 95%
International Protection (IP) codeIP67
BluetoothNo
Package weight1.2 kg
Weight820 g
Package width140 mm
Package depth140 mm
Storage temperature (T-T)-30 – 60 °C
Operating temperature (T-T)-30 – 60 °C
Power source typeDC, PoE
Optical sensor size25.4 / 3 mm (1 / 3)
Power consumption (max)9.6 W
Total megapixels4 MP
Package height154 mm
Number of cameras1
Maximum aperture number1.6
Pan range0 – 355°
Minimum illumination0 lx
Back Light Compensation (BLC)Yes
Region of Interest (ROI) encodingYes
MirrorYes
Digest authenticationYes
IK codeIK10
Highlight Compensation (HLC)Yes
HeartbeatYes
Digital watermarkYes
Dynamic range120 dB
User access levelAdministrator, Operator, User
Angle of rotation355°
Camera shutter speed1/3 – 1/100000 s
Bit rate32 Kbps – 8 Mbps
Number of languages2
Languages supportEnglish, Ukrainian
Supported network protocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Number of simultaneous live view channels6 channels
Audit logYes
Video compression formatsH.265+, H.264, H.264+, M-JPEG, H.265
Image quality adjustmentBrightness, Contrast, Sharpness, Saturation
Compliance certificatesRoHS, Federal Communications Commission (FCC), WEEE, CE, REACH
Power consumption (Power over Ethernet (PoE))11.5 W
Tilt angle range0 – 70°
Focal length range2.8 – 12 mm
DC output current0.8 A
Lens viewing angle, horizontal95.9 – 29.2°
Lens viewing angle, vertical50.6 – 16.4°
Lens viewing angle, diagonal114.7 – 33.5°
Supported graphics resolutions1280 x 720 (HD 720), 2560 x 1440, 640 x 480 (VGA), 1920 x 1080 (HD 1080), 640 x 360
Height99.9 mm
Diameter14.1 cm
ProducatorHIKVISION
Garantie36
