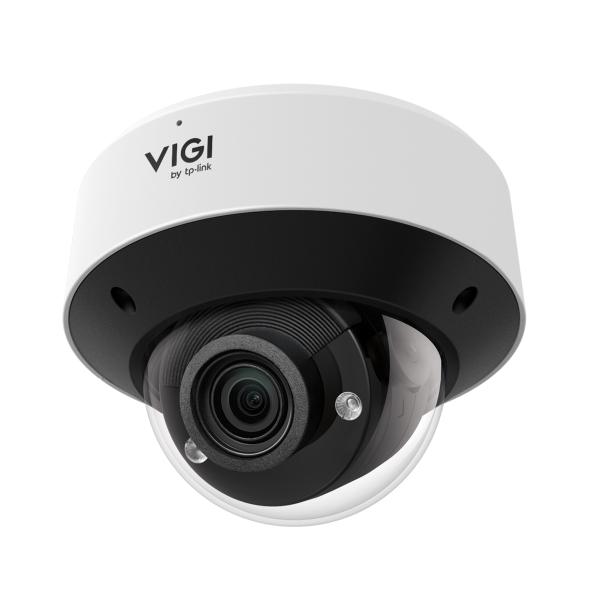

Camera IP Dome TP-Link VIGI InSight S245, 4MP, Lentila 2.7-13.5 mm (5X Optical Zoom), IR 60m, rezolutie video 2688 x 1520, +/H.265/H.264+/H.264

SKU: INSIGHT S245ZI

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

970,99 lei

12 in stock

12 in stock

13 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Warranty 1 year
  • Free 30-Day returns

Payment Methods:

Description

Camera IP Dome TP-Link VIGI InSight S245, 4MP, Lentila 2.7-13.5 mm (5X Optical Zoom), IR 60m, rezolutie video 2688 x 1520, +/H.265/H.264+/H.264

Specification

Overview

Format camerăDome
Obiectiv fixNo
InfraRed60m
Wi-FINo
Obiectiv varifocal2.7-13.5MM
Rezoluție camerăHD 4MP
TehnologieIP
Camera WirelessNo
Connectivity technologyWired
Password protectionYes
Ethernet LANYes
Storage relative humidity (H-H)0 – 95%
Number of microphones1
Auto focusYes
Web browserYes
Maximum memory card size512 GB
Motion sensorYes
Wide Dynamic Range (WDR)Yes
Protection featuresWaterproof
Reset buttonYes
Networking standardsIEEE 802.3af, IEEE 802.3at
Web-based managementYes
IP address filteringYes
Mounting typeCeiling
Tilt angle range0 – 75°
Audio output channels1.0 channels
HTTPS encryptionYes
Placement supportedOutdoor
Night visionYes
WeatherproofYes
Form factorDome
Camera pan controlYes
Camera tilt controlYes
Video motion detectionYes
DC output voltage12
Progressive scanYes
Built-in sirenYes
Day/night modeYes
Infrared (IR) cut-off filterYes
Remote viewingYes
Video recordingYes
Built-in microphoneYes
Built-in speaker(s)Yes
Sensor typeCMOS
Live viewYes
DC-in jackYes
Compatible memory cardsMicroSD (TransFlash)
Ethernet LAN (RJ-45) ports1
Product colourWhite
Operating relative humidity (H-H)0 – 95%
ManualYes
Housing materialMetal
Package typeBox
International Protection (IP) codeIP67
BluetoothNo
Cloud-managedYes
Operating temperature (T-T)-30 – 60 °C
Storage temperature (T-T)-40 – 60 °C
Power source typeDC, PoE
Audio system2-way
Power consumption (max)10.8 W
Optical zoom5x
Total megapixels4 MP
Weight775 g
Width129.9 mm
Depth129.9 mm
Number of cameras1
Maximum aperture number1.6
Human and vehicle targets classificationYes
Optical sensor size25.4 / 2.9 mm (1 / 2.9)
Minimum illumination0 lx
Back Light Compensation (BLC)Yes
Digital Wide Dynamic Range (DWDR)Yes
Video compression formatsH.264, H.264+, H.265, H.265+
Image quality adjustmentBrightness, Contrast, Mirror, Saturation, Sharpness
MirrorYes
Digest authenticationYes
IK codeIK10
Highlight Compensation (HLC)Yes
Dynamic range120 dB
Audio input channels1.0 channels
Maximum resolution2688 x 1520 pixels
Sample rate8 kHz
Bit rate range0 – 64 Kbit/s
LED typeIR/White
Alert notification typePush notification
FocusMotorized
Camera shutter speed1/3 to 1/10000
Supported graphics resolutions1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520
Audio formats supportedG.711 A-law
Bit rateMain Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264
Power consumption (Power over Ethernet (PoE))12 W
Maximum operating distance200 m
Lens viewing angle, horizontal29.6 – 102°
Lens viewing angle, vertical16.8 – 53.8°
Lens viewing angle, diagonal34.1 – 122.8°
Detect distance200 m
Observe distance84 m
Recognize distance40 m
Identify distance21 m
Detection distance200 m
Height102.5 mm
ProducatorTP-LINK
Garantie36
