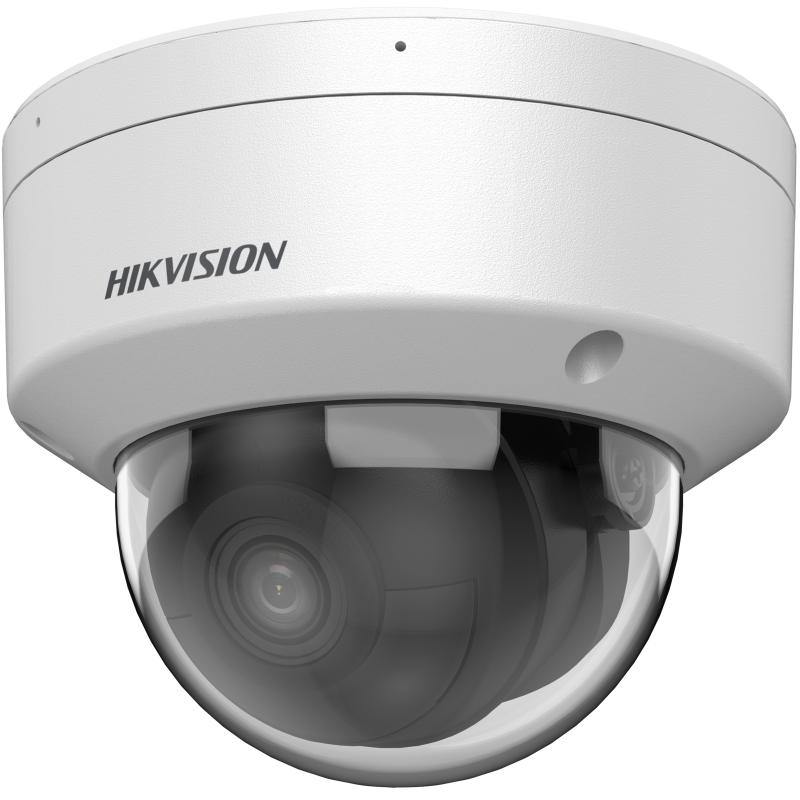

Camera de supraveghere IP Dome 4MP Hikvision DS-2CD2146G2H-I(2.8MM), lentila fixa 2.8mm, iluminare min: 0.001 Lux @ (F1.0, AGC ON), B/W: 0 Lux cu IR 30m, slot card de memorie: microSD/microSDHC/microSDXC maxim 512GB, alarma la evenimente: Motion detection (support alarm triggering by specified

SKU: DS-2CD2146G2H-I(2.8MM)

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

1.559,99 lei

Stoc furnizor. Pentru mai multe detalii va rugam sa ne contactati

Stoc furnizor. Pentru mai multe detalii va rugam sa ne contactati

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

17 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Warranty 1 year
  • Free 30-Day returns

Payment Methods:

Description

Camera de supraveghere IP Dome 4MP Hikvision DS-2CD2146G2H-I(2.8MM), lentila fixa 2.8mm, iluminare min: 0.001 Lux @ (F1.0, AGC ON), B/W: 0 Lux cu IR 30m, slot card de memorie: microSD/microSDHC/microSDXC maxim 512GB, alarma la evenimente: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception, Scene change detection, alimentare: 12 VDC ± 25%, 0.6 A, max. 7.2 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 8.5 W, protectie: IP67, dimensiuni: Ø121.5 mm × 97.6 mm, greutate: 550g, temperatura de functionare: -30 °C to 60 °C.

Specification

Overview

Format camerăDome
Obiectiv fix2.8mm
InfraRed30m
Obiectiv varifocalNo
Wi-FINo
Rezoluție camerăHD 4MP
TehnologieIP
Camera WirelessNo
Connectivity technologyWired
Password protectionYes
Card reader integratedYes
Protection featuresDust resistant, Water resistant
Ethernet LANYes
Storage relative humidity (H-H)0 – 95%
Maximum memory card size512 GB
Wide Dynamic Range (WDR)Yes
Reset buttonYes
Quality of Service (QoS) supportYes
Ethernet interface typeFast Ethernet
Web-based managementYes
IP address filteringYes
Languages supportMulti
Tilt angle range0 – 75°
Video streamingYes
Number of users32 user(s)
Networking standardsIEEE 802.1x, IEEE 802.3af
HTTPS encryptionYes
Placement supportedOutdoor
Terminal block portYes
Night visionYes
Number of lenses1
Night vision distance30 m
LED typeIR
Infra-red wavelength850 nm
Privacy maskingYes
Built-in HDDNo
Video motion detectionYes
Active tampering alarmYes
DC output voltage12
Number of sensors1
Privacy protectionYes
DC output current0.6 A
Form factorBullet
Progressive scanYes
Noise reduction technology3D noise reduction
Day/night modeYes
Mounting typeCeiling/wall
Infrared (IR) cut-off filterYes
Frame rate30 fps
Sensor typeCMOS
Noise reductionYes
Live viewYes
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
Ethernet LAN (RJ-45) ports1
Product colourWhite
Weight550 g
Operating relative humidity (H-H)0 – 95%
Housing materialAluminium
International Protection (IP) codeIP67
BluetoothNo
Package depth150 mm
Package weight800 g
Package width150 mm
Storage temperature (T-T)-30 – 60 °C
Power consumption (max)7.2 W
Operating temperature (T-T)-30 – 60 °C
Power source typeDC, PoE
Optical sensor size25.4 / 3 mm (1 / 3)
Package height141 mm
Total megapixels4 MP
Alarm input/outputYes
Alarm input channels1
Alarm output channels1
Number of cameras1
Human and vehicle targets classificationYes
Pan range0 – 355°
Minimum illumination0 lx
Back Light Compensation (BLC)Yes
Region of Interest (ROI) encodingYes
MirrorYes
Digest authenticationYes
Behavior analysisIntrusion detection, Line crossing detection
IK codeIK10
Fixed focal length2.8 mm
Highlight Compensation (HLC)Yes
Password reset via emailYes
HeartbeatYes
Lens mount interfaceM12
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
Signal-to-Noise Ratio (SNR)52 dB
User access levelAdministrator, Operator, User
Automatic Network Replenishment (ANR)Yes
Angle of rotation355°
Maximum resolution2688 x 1520 pixels
Number of languages33
Camera shutter speed1/3 – 1/100000 s
Video compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520
Intelligent Video Surveillance (IVS) system featuresFace detection
Number of Privacy masking areas4
Maximum aperture number1
Network access storage (NAS)Yes
Observe distance25 m
Recognize distance12 m
Identify distance6 m
Detect distance63 m
Number of simultaneous live view channels6 channels
Dynamic range130 dB
Lens viewing angle, horizontal100.2°
Lens viewing angle, vertical54.7°
Lens viewing angle, diagonal119.7°
Bit rate32 Kbps – 8192 Kbps
Client interoperabilityiVMS-4200, Hik-Connect, Hik-Central
Security algorithmsHTTPS, TLS
Pixel counterYes
Flash logYes
Audit logYes
Power consumption (Power over Ethernet (PoE))8.5 W
Height97.6 mm
Diameter12.2 cm
Compliance certificatesCB, CE, Low Voltage Directive (LVD), RoHS, UL
Browser supportedIE 10, IE 11, Chrome 57.0+, Firefox 52.0+
ProducatorHIKVISION
Garantie36
