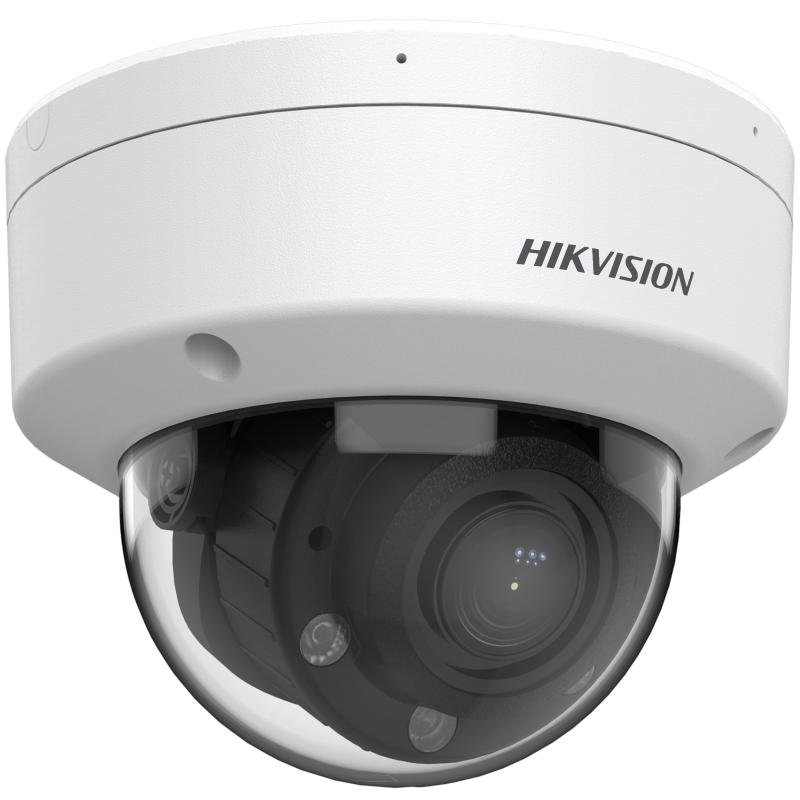

Camera de supraveghere Hikvision DS-2CD1743G2-LIZU(2.8-12MM);311325240

SKU: DS-2CD1743G2-LIZU(2.8-12MM)

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

2.087,00 lei

36 in stock

36 in stock

11 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Warranty 1 year
  • Free 30-Day returns

Payment Methods:

Description

Camera de supraveghere Hikvision DS-2CD1743G2-LIZU(2.8-12MM);311325240

Specification

Overview

Format camerăDome
Obiectiv fixNo
InfraRed30m
Obiectiv varifocal2.8-12mm
Rezoluție camerăHD 4MP
TehnologieIP
Camera WirelessNo
Connectivity technologyWired
Storage relative humidity (H-H)0 – 95%
Maximum memory card size512 GB
Wide Dynamic Range (WDR)Yes
Reset buttonYes
Ethernet interface typeFast Ethernet
Web-based managementYes
Mounting typeCeiling
Audio output channels1.0 channels
Video streamingYes
Number of users32 user(s)
Terminal block portYes
Night visionYes
Placement supportedIndoor & outdoor
Form factorDome
Camera pan controlYes
Camera tilt controlYes
Number of lenses1
Night vision distance30 m
Infra-red wavelength850 nm
Privacy maskingYes
Built-in HDDNo
Video motion detectionYes
Active tampering alarmYes
DC output voltage12
Number of sensors1
Privacy protectionYes
Built-in lightYes
Progressive scanYes
Noise reduction technology3D noise reduction
Day/night modeYes
Maximum resolution2560 x 1440 pixels
Infrared (IR) cut-off filterYes
Sensor typeCMOS
Noise reductionYes
Live viewYes
Operating relative humidity (H-H)0 – 95%
International Protection (IP) codeIP67
BluetoothNo
Package depth150 mm
Package weight740 g
Package width150 mm
Storage temperature (T-T)-30 – 60 °C
Operating temperature (T-T)-30 – 60 °C
Power source typeDC, PoE
Weight540 g
Optical sensor size25.4 / 3 mm (1 / 3)
Package height141 mm
Total megapixels4 MP
Maximum aperture number16
Power consumption (max)96 W
Alarm input/outputYes
Alarm input channels1
Alarm output channels1
Number of cameras1
Frame rate25 fps
Pan range0 – 355°
Minimum illumination0 lx
Back Light Compensation (BLC)Yes
Region of Interest (ROI) encodingYes
Video compression formatsH.264, H.264+, H.265, H.265+
MirrorYes
Digest authenticationYes
Highlight Compensation (HLC)Yes
Password reset via emailYes
HeartbeatYes
Digital watermarkYes
Dynamic range120 dB
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
Bit rate32 Kbps – 16 Mbps
Audio input channels1.0 channels
Signal-to-Noise Ratio (SNR)52 dB
User access levelAdministrator, Operator, User
Angle of rotation355°
IK codeIK08
Camera shutter speed1/3 – 1/100000 s
Video formats supportedH.264, H.264+, H.265, H.265+
Number of Privacy masking areas4
LED typeIR/White
FocusMotorized
Number of languages2
Supported graphics resolutions640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440
Audio formats supportedAAC-LC, G.711 A-law, G.711 μ-law, G.722.1, G.726, MP2L2, PCM
Bit rate range16 – 160 Kbit/s
Sample rates8 – 16 kHz
Number of simultaneous live view channels6 channels
Client interoperabilityiVMS-4200, Hik-Connect
Audit logYes
Height97.6 mm
Diameter12.2 cm
Protection featuresDust resistant, Vandal proof, Water resistant
Lens viewing angle, horizontal96.7 – 29.7°
Lens viewing angle, vertical51.7 – 16.7°
Lens viewing angle, diagonal114.3 – 34°
Tilt angle range0 – 70°
Focal length range2.8 – 12 mm
Detect distance (wide)64 m
Detect distance (tele)198 m
Observe distance (wide)25.4 m
Observe distance (tele)78.6 m
Recognize distance (wide)12.8 m
Recognize distance (tele)39.6 m
Identify distance (wide)6.4 m
Identify distance (tele)19.8 m
Supported video modes360p, 480p, 720p, 1080p, 1440p
Supported network protocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RCTP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Power consumption (Power over Ethernet (PoE))12 W
DC output current0.8 A
ProducatorHIKVISION
Garantie36
