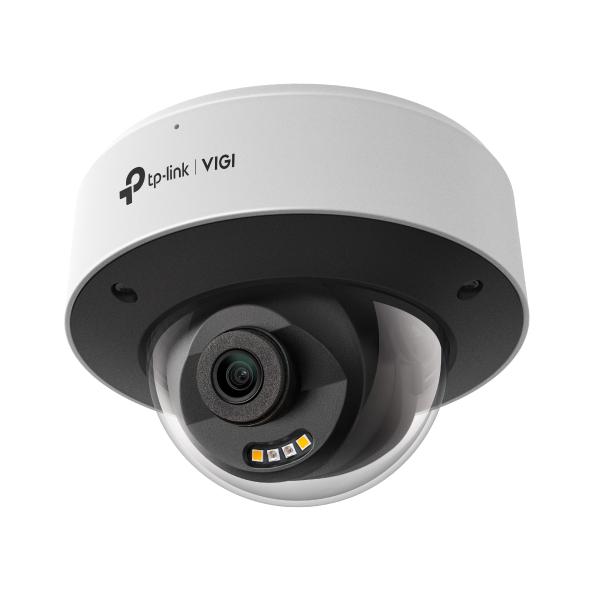

8MP Full-Color Dome Network Camera SPEC: 8MP, 2.8mm Fixed Lens, 1/2.7" Progressive Scan CMOS, H.265+/H.265/H.264+/H.264, IR/White LED: 30m, 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, IP67, 12V DC ± 5%, Max. 11 W, 5.5 mm Coaxial Power Plug, PoE: 802.3af/at, class 0, Max. 12.3 W, Built- in MIC/Speake

SKU: INSIGHT S285(2.8MM)

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

794,99 lei

14 in stock

14 in stock

17 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Warranty 1 year
  • Free 30-Day returns

Payment Methods:

Description

8MP Full-Color Dome Network Camera SPEC: 8MP, 2.8mm Fixed Lens, 1/2.7″ Progressive Scan CMOS, H.265+/H.265/H.264+/H.264, IR/White LED: 30m, 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, IP67, 12V DC ± 5%, Max. 11 W, 5.5 mm Coaxial Power Plug, PoE: 802.3af/at, class 0, Max. 12.3 W, Built- in MIC/Speake, micro-SD Slot pana la 512GB, FEATURE: Intrusion Detection, Line-Crossing Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection, People Detection, Vehicle Detection, Abnormal Sound Detection, Scene Change Detection

Specification

Overview

Format camerăDome
Obiectiv fix2.8mm
InfraRed30m
Obiectiv varifocalNo
Wi-FINo
Rezoluție camerăHD 8MP
TehnologieIP
Camera WirelessNo
Connectivity technologyWired
Password protectionYes
Ethernet LANYes
Storage relative humidity (H-H)0 – 95%
Number of microphones1
Maximum resolution3840 x 2160 pixels
Web browserYes
Maximum memory card size512 GB
Fixed focusYes
Motion sensorYes
Wide Dynamic Range (WDR)Yes
Protection featuresWaterproof
Reset buttonYes
Networking standardsIEEE 802.3af, IEEE 802.3at
Web-based managementYes
IP address filteringYes
Mounting typeCeiling
Tilt angle range0 – 75°
Audio output channels1.0 channels
HTTPS encryptionYes
Placement supportedOutdoor
Night visionYes
WeatherproofYes
Form factorDome
Video motion detectionYes
DC output voltage12
Progressive scanYes
Built-in sirenYes
Day/night modeYes
Infrared (IR) cut-off filterYes
Remote viewingYes
Video recordingYes
Built-in microphoneYes
Built-in speaker(s)Yes
Width122 mm
Sensor typeCMOS
Live viewYes
DC-in jackYes
Compatible memory cardsMicroSD (TransFlash)
Ethernet LAN (RJ-45) ports1
Product colourWhite
Operating relative humidity (H-H)0 – 95%
ManualYes
Housing materialMetal
Height89 mm
International Protection (IP) codeIP67
BluetoothNo
Weight620 g
Cloud-managedYes
Operating temperature (T-T)-30 – 60 °C
Storage temperature (T-T)-40 – 60 °C
Power source typeDC, PoE
Optical sensor size25.4 / 2.7 mm (1 / 2.7)
Audio system2-way
Depth122 mm
Power consumption (max)11 W
Number of cameras1
Maximum aperture number1.6
Human and vehicle targets classificationYes
Total megapixels8 MP
Minimum illumination0 lx
Back Light Compensation (BLC)Yes
Digital Wide Dynamic Range (DWDR)Yes
Video compression formatsH.264, H.264+, H.265, H.265+
Image quality adjustmentBrightness, Contrast, Mirror, Saturation, Sharpness
MirrorYes
Digest authenticationYes
IK codeIK10
Fixed focal length2.8 mm
Highlight Compensation (HLC)Yes
Dynamic range120 dB
Audio input channels1.0 channels
Identify distance8 m
Sample rate8 kHz
Bit rate range0 – 64 Kbit/s
LED typeIR/White
Lens viewing angle, horizontal110°
Alert notification typePush notification
Observe distance35 m
Recognize distance17 m
Camera shutter speed1/3 to 1/10000
Audio formats supportedG.711 A-law
Maximum operating distance85 m
Bit rateMain Stream: 256 Kbps to 8 Mbps, Sub-Stream: 64 Kbps to 512 Kbps
Lens viewing angle, vertical58.1°
Lens viewing angle, diagonal133.5°
Detect distance85 m
Detection distance85 m
Power consumption (Power over Ethernet (PoE))12.3 W
ProducatorTP-LINK
Garantie36
