HPE Networking Instant On Access Point Bundle with PSU Dual Radio Tri Band 2×2 Wi-Fi 6E (EU) AP32

Lifecycle

• Obsolete Date 31-12-2099

Specifications

• Certifications Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3
• Mounting Ceiling/Wall-mount clip
• Warranty Instant On 2-year warranty includes 24X7 phone support for the first 90 days and chat support for the entire warranty period. Community support is available for the life of the product.
• Connectivity, standard Ultra-fast 802.11ax
• Wi-Fi antenna Antennas: Dual omni-directional 2×2 MIMO Antenna Gain: 2.8 dBi in 2.4 GHz 4.5 dBi in 5 GHz and 6 GHz Maximum transmit power: 5 GHz and 6 GHz band: +21 dBm (+18 dBm per chain, 3 dB MIMO gain) 2.4 GHz band: +21 dBm (+18 dBm per chain, 3 dB MIMO gain)
• Radio coverage Dual-Radio, tri-band 802.11ax 2×2 6 GHz/5 GHz/2.4 GHz* MIMO Note: * Only two active bands are selectable.

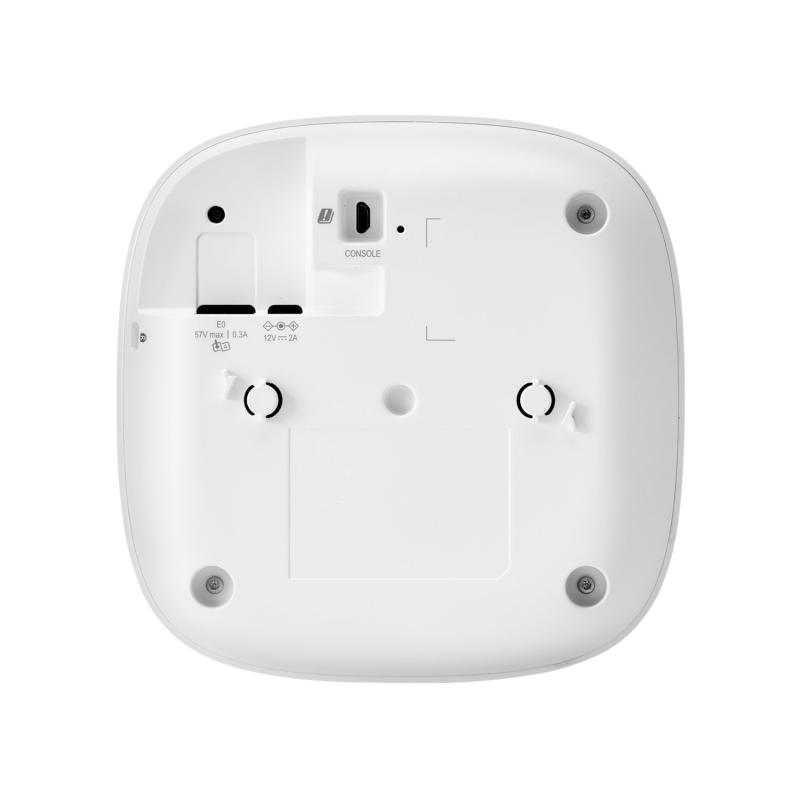

• Ports 1x 2.5 GbE Base-T uplink port DC power connector LED status indicators Reset/LED control button Kensington security slot
• Input voltage PoE: 802.3at (class 4) DC power (12V) Note: Power sources are sold separately unless you purchase the bundle SKU
• Power consumption Max power consumption: 12.9W (PoE) 11.0W (DC)

Quickspecs

• QuickSpecs
• QuickSpecs
• QuickSpecs (PDF)
• QuickSpecs (HTML)

Overview

The HPE Networking Instant On Access Point AP32 is a Wi-Fi CERTIFIED 6E™ wireless access point built to bring future-ready connectivity to small and medium businesses. The AP32 supports the new 6E wireless protocol that broadcasts on the 6 GHz band, which is reserved for Wi-Fi 6E-enabled devices, and offers higher capacity and capability for the devices. This higher capacity needs a strong backhaul, so the AP32 comes with a 2.5 GbE uplink port and PoE to make connectivity and power easy. With a 2×2 antenna array supporting 2 spatial streams, the AP32 provides robust connectivity for up to 75 devices and 2.8 Gbps of wireless throughput. In the HPE Networking Instant On mobile app, choose to broadcast the 5 GHz and 6 GHz bands to achieve faster throughput speed, or switch to 2.4 GHz and 6 GHz for impressive range for modern laptops or smartphones.

What’s new

• Wi-Fi CERTIFIED 6E™ support for up to 75 user devices.
• 2.5 Gigabit Ethernet uplink port that relieves bottlenecks brought by bandwidth-intense applications.
• 6 GHz band dedicated to Wi-Fi 6E-enabled devices with up to 2.4 Gbps wireless throughput.
• The modern minimal design blends the HPE Networking Instant On AP32 into any environment. Enable quiet mode to disable lights for less distraction.
• Keep your network protected with the HPE Networking Instant On Instant On mobile app or web portal, cloud-connected so you can manage or troubleshoot problems anywhere in the world.

Features

Use the HPE Networking Instant On mobile app or web portal to see where clients on your network are going with the application's insight.

Block certain types of traffic in the mobile app or web portal to keep your network safe and employees productive.

This Tri-band, dual radio access point offers different broadcasting configurations: 6 GHz and 5 GHz for impressive throughput, 2.4 GHz and 6 GHz to support IoT and the most recent wireless devices, and 2.4 GHz and 5 GHz for businesses not yet ready to use the latest wireless standards.

Wi-Fi 6E 6 GHz Band to Fast-Track your Devices

HPE Networking Instant On Access Point AP32 is ready to elevate your growing network needs with Wi-Fi 6E.

Easily manage and update the HPE Networking Instant On AP32 band setting in the HPE Networking Instant On mobile app from anywhere.

802.11ax Wi-Fi Certified 6E

HPE Networking Instant On AP32 access points feature Orthogonal Frequency-Division Multiple Access (OFDMA), allowing multiple Wi-Fi 6 capable clients to be handled simultaneously per channel. This improves efficiency by boosting overall capacity, reducing latency, and improving end-user experience.

Target Wake Time (TWT): Ideal for IoT devices that communicate infrequently, TWT establishes a schedule for when clients need to communicate with an AP. This reduces power consumption and can extend the battery life of clients.

Safeguard your Network with WPA-Enterprise Features

Multiple Input, Multiple Output (MIMO): Allows the access point to serve multiple clients (Wi-Fi 5 and Wi-Fi 6) simultaneously.

HPE Networking Instant On AP32 access points come with top-level security features, always on, out of the box, such as WPA2/WPA3 and Enhanced Open support for protecting your wireless network.

Compatible products

• HPE Aruba Networking Foundational Care 3Y NBD Exch Instant ON Access Point SVC
