HPE Aruba Networking AP-514 (RW) Dual Radio 4×4/2×2 802.11ax External Antennas Unified Campus AP

Lifecycle

• Obsolete Date 01-01-2100

Specifications

• Weight 28.5 oz

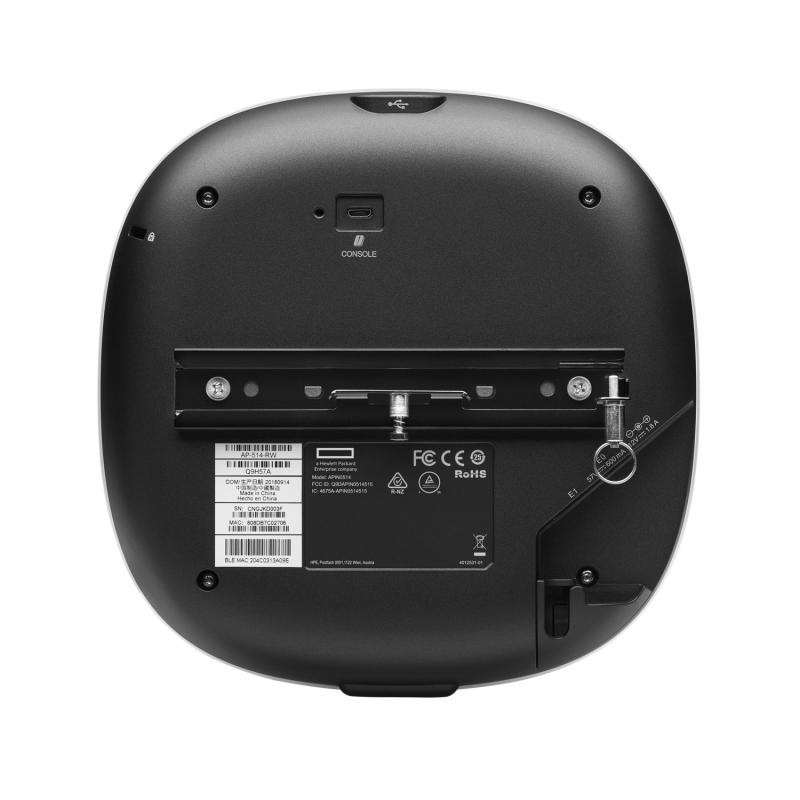

• Ports E0: HPE Smart Rate port (RJ-45, maximum negotiated speed 2.5 Gbps) E1: 10/100/1000BASE-T Ethernet network interface (RJ-45) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot
• Warranty Limited lifetime warranty. See the warranty duration.
• Certifications UL2043 plenum rating Bluetooth SIG Wi‑Fi Alliance®: Wi‑Fi CERTIFIED® a, b, g, n, ac, ax WPA, WPA2 and WPA3, Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband Wi-Fi CERTIFIED Location
• Regulatory FCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU UL/IEC/EN 62368-1 EN 60601-1-1, EN60601-1-2 Railway Certs (AP-515 only): EN 50155:2017-Railway Applications EN 50121-1:2017-Railway EMC EN 50121-3-2-Railway EMC EN 50121-4:2016-Railway Immunity IEC 61373 ed2:2008-Railway Shock and Vibration For more country-specific regulatory information and approvals, contact your HPE representative.
• Product dimensions (imperial) 1.8 x 7.9 x 7.9 in
• Product dimensions (metric) 46 x 200 x 200 mm
• IoT support Bluetooth 5 and Zigbee (802.15.4) radio (2.4 GHz), USB 2.0
• Location services 802.11 FTM support
• MACsec support No
• Radio configuration options 2.4 GHz, 5 GHz
• Max bandwidths and peak data rate per band 20/40 (2.4 GHz), 20/40/80/160 (5 GHz), and maximum peak data rate 2.69 Gbps
• Ultra tri-band (UTB) filtering No
• Wi-Fi generation Wi-Fi 6 (802.11ax)
• Wi-Fi radios 2×2:2 (2.4 GHz), 4×4:4 (5 GHz)
• Wired network interface 1 x 2.5GbE, 1 x 1GbE
• AP management On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service
• AP operating system support HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.4.0.0 (with some restrictions). For unrestricted operation, use 8.6.0.0 or later.
• Cellular support USB LTE modem (sold separately)
• Deployment Indoor
• Integrated sensor No
• Weight 810 g

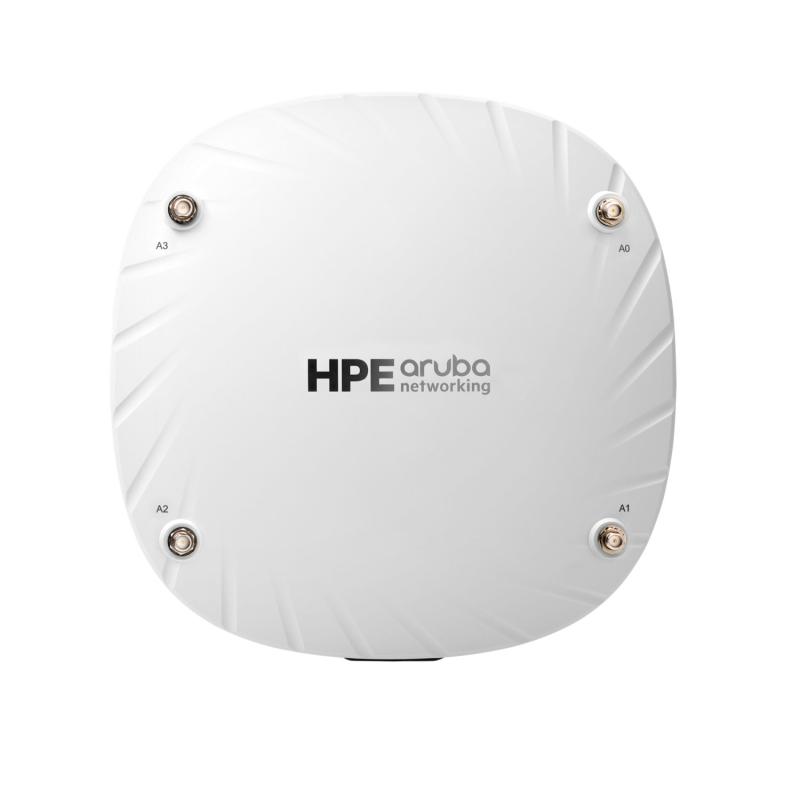

• Wi-Fi antenna Four RP-SMA connectors for external dual-band antennas.

Quickspecs

• QuickSpecs (PDF)
• QuickSpecs (HTML)
• QuickSpecs
• QuickSpecs

Overview

The HPE Aruba Networking 510 Series Campus Access Points deliver Wi-Fi 6 coverage ideal for office spaces, training and meeting facilities, and hospitals. With 2.69 Gbps maximum combined data rate, multi-gigabit Ethernet for fast wired connectivity, and built-in Internet of Things (IoT) radio, the 510 series delivers reliable, high-performance Wi‑Fi CERTIFIED® for medium density campus environments. The 510 series can be deployed using zero touch provisioning (ZTP) for ease of implementation at remote locations. It is Wi-Fi and supports 802.11ax features: OFDMA for multi-user efficiency, target wake time (TWT) to extend the battery life of connected IoT devices, and WPA3 and Enhanced Open for greater password and guest security. The 510 series includes a limited lifetime warranty.

What’s new

• It is offered in optional eco-friendly 10-packs
• Dynamic segmentation and policy enforcement firewalls (PEF) automatically enforce consistent policies across wired and wireless networks, enhancing user and device security
• Wi-Fi 6 AP provides up to 2.69 Gbps maximum combined data rate
• The 510 series supports OFDMA for enhanced multi-user efficiency, and WPA3 and Enhanced Open for greater security
• IoT-ready with Bluetooth 5 and Zigbee support and fast wired connections with 2.5 Gbps Ethernet and 1 Gbps Ethernet ports
• It has client and RF optimization to match clients with the optimal AP and reduce coverage gaps

Features

It offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open (OWE), and user and IoT access policy enforcement firewalls.

HPE Aruba Networking 510 Series Campus Access Points offer enhanced security with dynamic segmentation to remove the time-consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic protected and separated.

Simple and Secure Access
Wi-Fi 6 Performance Ideal for Campus Deployment

The HPE Aruba Networking 510 Series Campus Access Points deliver a maximum combined data rate of 2.69 Gbps with up to 4 spatial streams (4SS) and 160 MHz channel bandwidth (VHT160).

The 510 series supports Wi-Fi 6 features such as OFDMA, MU-MIMO, and target wait time (TWT) to drive improved efficiency. It handles multiple Wi-Fi 6 capable clients on each channel simultaneously, regardless of device or traffic type.

Enhanced wireless experience with HPE Aruba Networking ClientMatch technology removes sticky client issues by steering a client to the AP where it receives the strong radio signal.

It supports fast wired connections with 2.5 Gbps Ethernet and 1 Gbps Ethernet ports.

For enhanced device assurance, the APs include an installed trusted platform module (TPM) for protected storage of credentials and keys, and boot code.

HPE Aruba Networking Central client insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.

The target wake time (TWT) improves battery life of IoT devices.

The 510 series includes an integrated Bluetooth 5 and 802.15.4 radio (for Zigbee support) to simplify deploying and managing IoT-based location services, asset tracking services, security solutions and IoT sensors.

HPE Aruba Networking 510 Series Campus Access Points can be managed with HPE Aruba Networking Central, an AI-powered solution that simplifies IT operations, improves agility, and reduces costs by unifying management of campus, branch, remote, data center, and IoT networks from one dashboard.

Cloud Management and Ready for IoT

WPA3 and Enhanced Open (OWE) security increase enterprise-level security by providing stronger guest access protections without increasing complexity.

Compatible products

• HPE Aruba Networking AP-POE-AFGE 1-Port GbE 802.3af 15.4W Midspan Injector
• HPE Aruba Networking AP-MNT-D Campus AP Type D Solid Surface Mount Bracket Kit
• HPE Aruba Networking AP-MNT-MP10-D Campus AP 10-Pack Solid Surface Mount Bracket Kit
• HPE ANW AP-ANT-311 ANTENNA
• HPE Aruba Networking AP-CBL-SERU Micro-USB TTL3.3V to USB2.0 AP Console Adapter Cable
• HPE Aruba Networking AP-MNT-C Campus AP Type C Suspended Ceiling Rail 9/16 Profile Mnt Bracket Kit
• HPE Aruba Networking AP-MNT-E Campus AP Type E Wall-Box Mount Bracket Kit
• HPE ANW AP-ANT-312 ANTENNA
• HPE Aruba Networking AP-MNT-A Campus AP Type A Suspended Ceiling Rail Flat 9/16 Mount Bracket Kit
• HPE Aruba Networking AP-MNT-MP10-U
• HPE Aruba Networking AP-POE-ATSR 1-Port Smart Rate 802.3at 30W Midspan Injector
• HPE Aruba Networking AP-AC2-12B 12V/48W AC/DC Desktop Style Power Adapter with 2.1/5.5mm Connector
• HPE ANW AP-MNT-U CAMPUS TYPE U BRKT KIT
• HPE Aruba Networking AP-MNT-B Campus AP Type B Suspended Ceiling Rail Flat 15/16 Mount Bracket Kit
• HPE ANW AP-ANT-348 ANTENNA
• AP-MOD-SERU CONSOLE ADAPTER MODULE
