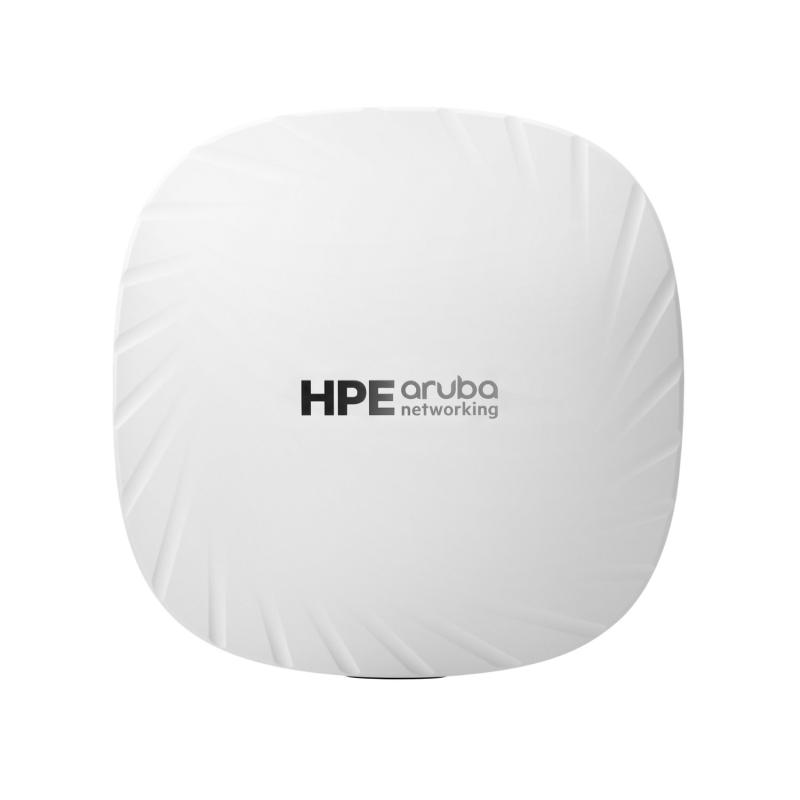

HPE Aruba Networking AP-505 (RW) Dual Radio 2×2 802.11ax Internal Antennas Unified Campus AP

Lifecycle

• Obsolete Date 31-12-2099
• End of support date 31-12-2104

Specifications

• Wi-Fi radios Dual 2×2
• Warranty Limited lifetime warranty. See the warranty duration.

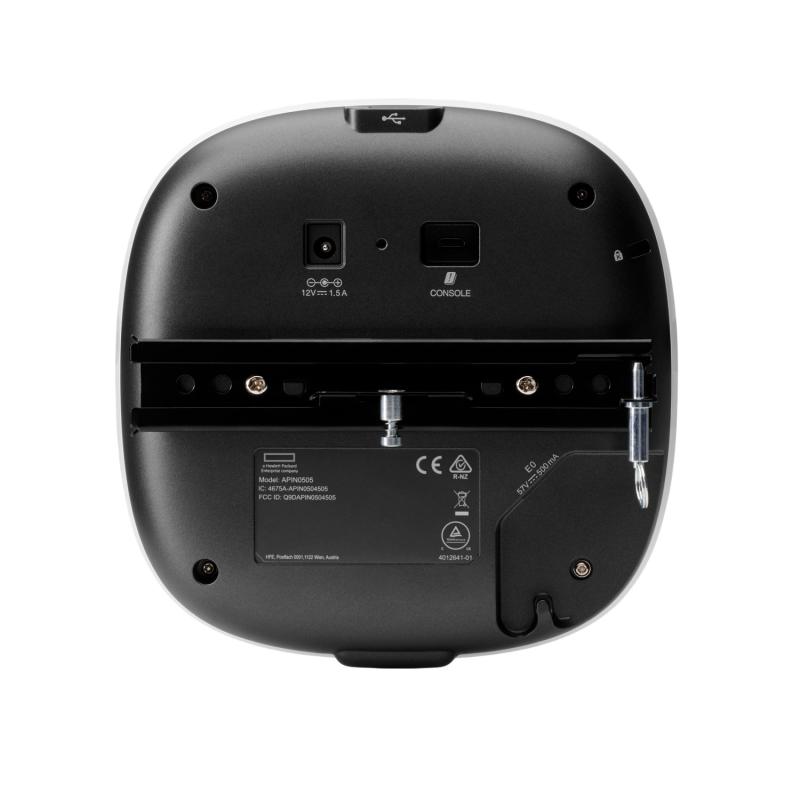

• Ports E0: Ethernet wired network port (RJ-45) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot.
• Weight 1.1 lb
• Weight 500 g
• Wi-Fi antenna Two integrated dual-band downtilt omnidirectional antennas for 2×2 MIMO with peak antenna gain of 4.9 dBi in 2.4 GHz and 5.7 dBi in 5 GHz.
• Product dimensions (imperial) 1.5 x 6.3 x 6.3 in
• Product dimensions (metric) 37 x 160 x 161 mm
• Certifications UL2043 plenum rating Wi‑Fi Alliance®: Wi-Fi CERTIFIED® a, b, g, n, ac Wi-Fi CERTIFIED 6 (ax) WPA, WPA2 and WPA3-Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, W-Fi Agile Multiband Wi-Fi CERTIFIED Location Bluetooth SIG Ethernet Alliance (PoE, PD device, Class 4)
• Regulatory FCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU UL/IEC/EN 62368-1 EN 60601-1-1, EN60601-1-2 Railway Certs (AP-505 only): EN 50155:2017 —Railway Applications EN 50121-1:2017 —Railway EMC EN 50121-3-2 —Railway EMC EN 50121-4:2016 —Railway Immunity IEC 61373 ed2:2008 —Railway Shock and Vibration For more country-specific regulatory information and approvals, contact your HPE representative.
• Wired network interface 1 x 1GbE
• AP management On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service
• AP operating system support HPE Aruba Networking Wireless Operating System 8.6.0.0 or later; HPE Aruba Networking Instant OS 8.6.0.0 or later; HPE Aruba Networking Wireless Operating System 10.0.0.0 or later
• Cellular support USB LTE modem (sold separately)
• Deployment Indoor
• Integrated sensor No
• IoT support IEEE 802.15.4/Zigbee or Bluetooth 5, USB 2.0 Type A
• Location services 802.11 FTM support
• MACsec support No
• Radio configuration options 2.4 GHz and 5 GHz
• Max bandwidths and peak data rate per band 20/40 (2.4 GHz), 20/40/80 (5 GHz), maximum peak data rate 1.49 Gbps
• Ultra tri-band (UTB) filtering No
• Wi-Fi generation Wi-Fi 6 (802.11ax)

Quickspecs

• QuickSpecs (HTML)
• QuickSpecs
• QuickSpecs (PDF)
• QuickSpecs

Overview

HPE Aruba Networking 500 Series Campus Access Points deliver cost-effective Wi-Fi 6 coverage for indoor environments such as mid-sized offices, schools, and retail spaces where fewer people are on the network at the same time. With a 1.49 Gbps maximum combined data rate, the 500 series delivers reliable Wi-Fi for medium-density environments and is supported by HPE Aruba Networking Central, AI-powered management that simplifies and improves IT operations across branch, remote office, campus, data center, and IoT networks with a single point of visibility and control. The 500 series is Wi-Fi CERTIFIED® and supports Wi-Fi 6 (802.11ax) features: OFDMA for multi-user efficiency, target wake time (TWT) to extend the battery life of connected Internet of Things (IoT) devices, and WPA3 and Enhanced Open (OWE) for greater password and guest security. The 500 series includes a limited lifetime warranty.

What’s new

• Available in optional eco-friendly 10-packs
• Entry-level Wi-Fi 6 access points provide up to 1.49 Gbps maximum combined data rate
• Support for orthogonal frequency-division multiple access (OFDMA) for enhanced multi-user efficiency, and WPA3 and Enhanced Open (OWE) for greater security
• IoT-ready with built-in Bluetooth 5 and Zigbee support
• Dynamic segmentation and policy enforcement firewalls (PEFs) automatically enforce consistent policies across wired and wireless networks, enhancing user and device security
• Built-in technology that resolves sticky client issues and improves the performance of mobile Wi-Fi clients

Features

Enhanced wireless experience with HPE Aruba Networking ClientMatch technology that removes sticky client issues by steering a client to the AP where it receives the best radio signal.

Wi-Fi 6 Performance

HPE Aruba Networking 500 Series Campus Access Points deliver a maximum combined data rate of 1.49 Gbps with 2 spatial streams to meet the needs of low and medium-density environments.

Wi-Fi CERTIFIED® with support for Wi-Fi 6 features such as OFDMA, bidirectional MU-MIMO, and target wait time (TWT) to drive improved efficiency. It handles multiple Wi-Fi 6 capable clients on each channel simultaneously, regardless of device or traffic type.

It offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open (OWE), and user and IoT access policy enforcement firewalls (PEF).

WPA3 and Enhanced Open security increases enterprise-level security by providing stronger guest access protections without increasing complexity.

HPE Aruba Networking 500 Series Campus Access Points offer enhanced security with dynamic segmentation to remove the time-consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic protected and separated.

Simple and Secure Access

Supports Bluetooth 5 and Zigbee wireless protocols through an integrated IoT radio, and third-party expansion with an integrated USB port.

HPE Aruba Networking 500 Series Campus Access Points can managed with HPE Aruba Networking Central, an AI-powered solution that simplifies IT operations, improves agility, and reduces costs by unifying management of campus, branch, remote, data center, and IoT networks from one dashboard.

Cloud Management and Ready for IoT

HPE Aruba Networking Central Client Insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.

For enhanced device assurance, the APs include an installed trusted platform module (TPM) for protected storage of credentials and keys, and boot code.
