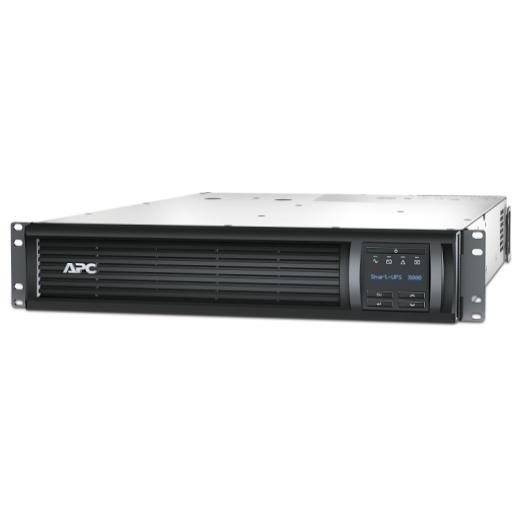

UPS APC Smart-UPS SMT line-interactive / sinusoidala 750VA / 500W 4conectori C13 rackabil 2U, baterie APCRBC123, optional extinderegarantie cu 1/3 ani (WBEXTWAR1YR-SP-02/WBEXTWAR3YR-SP-02)cu smart conect,3 ani garantie echipament si 2 ani garantie baterie

SKU: SMT750RMI2UC

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Original price was: 4.220,99 lei.Current price is: 3.215,99 lei.

37 in stock

37 in stock

16 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Warranty 1 year
  • Free 30-Day returns

Payment Methods:

Description

APC Smart-UPS 750VA, Rack Mount, LCD 230V with SmartConnect Port

Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Includes: Documentation CD, Installation guide, Rack mounting support rails, USB cable

Output power capacity

500 Watts / 750VA
Rack Height

2U
Output Connections

(2) IEC Jumpers (Battery Backup)
(4) IEC 320 C13 (Battery Backup)
Nominal Output Voltage

230V
Nominal Input Voltage

230V
Input Connections

IEC 320 C14

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion

Less than 5 %
Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages

220, 240
Topology

Line interactive
Waveform type

Sine wave
Transfer Time

6 ms typical : 10 ms maximum

Specification

Overview

CuloareNegru
RackableYes
USB PortYes
Quick installation guideYes
Operating altitude0 – 3000 m
Storage relative humidity (H-H)0 – 95%
Rack mount kitYes
Surge protectionYes
Audible alarm(s)Yes
Tip UPS:Line Interactive
Capacitate putere UPS500W
Capacitate Rack:2U
Ecran LCD:Da
Port USBDa
UPS topologyLine-Interactive
AC outlet typesC13 coupler
Power plugC14 coupler
Serial interfaceYes
Hot-swap batteryYes
Automatic battery testYes
Cold startYes
Non-operating altitude0 – 15000 m
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Automatic Voltage Regulation (AVR)Yes
Rack capacity2U
Input operation voltage (min)151 V
Input operation voltage (max)302 V
Auto-restartYes
Number of output IEC jumpers2
SmartSlotYes
Sustainability certificatesGreen Premium
Output power capacity0.75 kVA
Output power500 W
Serial interface typeRJ-45
Form factorRackmount
WaveformPure sine
AC outlets quantity4 AC outlet(s)
Surge energy rating459 J
Hold time (max)2 ms
Efficiency97.7%
Battery capacity168 VAh
Typical backup time at full load5.5 min
Typical backup time at half load16 min
Total carbon footprint (kg of CO2e)821.3
Protectie supratensiuneDa
UPS-ManagementNo
DisplayDa
Operating temperature (T-T)0 – 40 °C
Software CDYes
Battery recharge time3 h
Battery technologySealed Lead Acid (VRLA)
Operating relative humidity (H-H)0 – 95%
Height89 mm
Harmonized System (HS) code85078000
Battery life (max)5 year(s)
Storage temperature (T-T)-15 – 45 °C
Cables includedRS-232, USB cable
Width432 mm
Products per pallet16 pc(s)
LED indicatorsBattery replacement
Weight17.3 kg
Noise level42 dB
CertificationCE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, TUV, UL 1778, VDE, REACH, PEP, EOLI
Package width546 mm
Package depth584 mm
Package height241 mm
Package weight21.2 kg
Depth40.6 mm
Tip:Line-interactive
Atentionari Baterie slabaDa
Protectie supraincarcareDa
Protectie la descarcareDa
Numar baterii1
Atentionari Mod baterieDa
IEC C134
Montare in Rack2U
BaterieMaintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
Timp incarcare3 ore
Putere750 VA
Incarcare500 W
Timp mediu de functionareFull load: 5 minHalf load: 16 min
Greutate17.27 Kg
InterfataUSBRJ-45 SerialSmart Connect
Dimensiuni432 x 409 x 86 mm
ProducatorAPC
Garantie36
