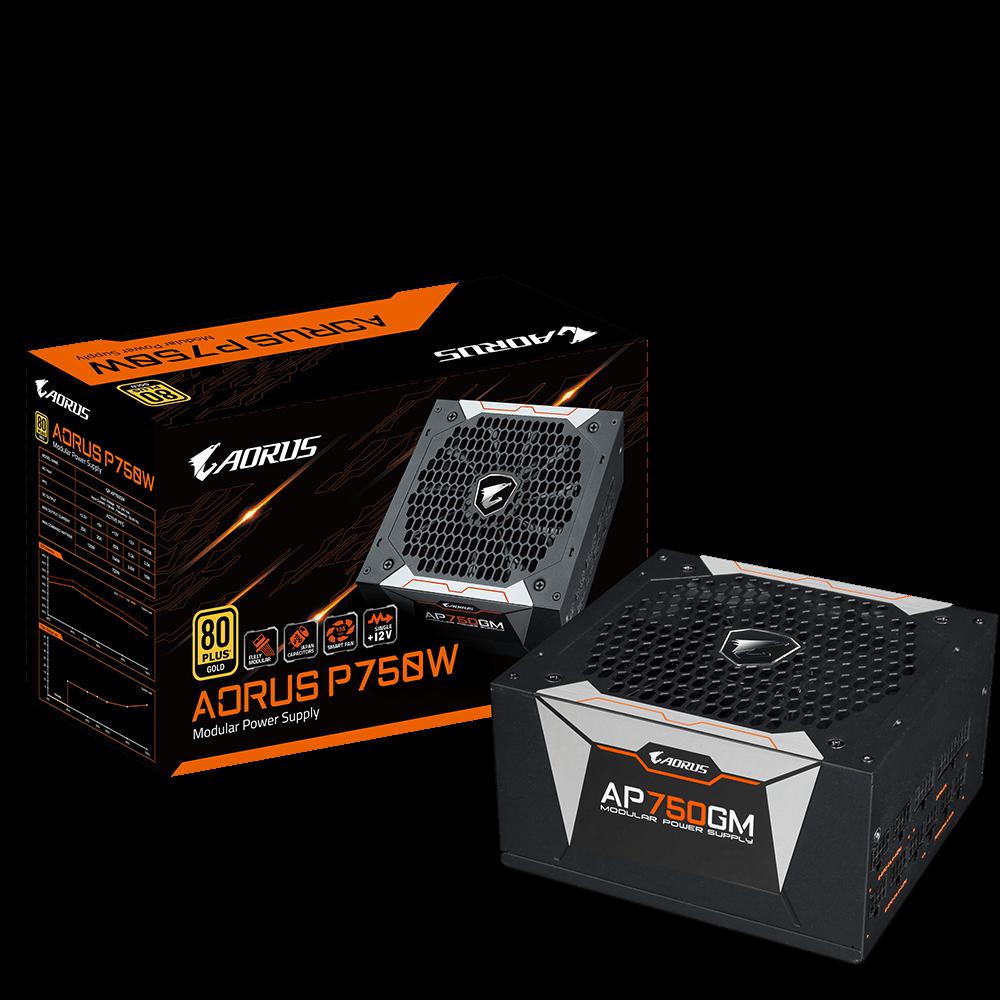

Sursa GIGABYTE GP-AP750GM, 80+ Gold, 750W - Image 1

Sursa GIGABYTE GP-AP750GM, 80+ Gold, 750W - Image 3

Click to enlarge

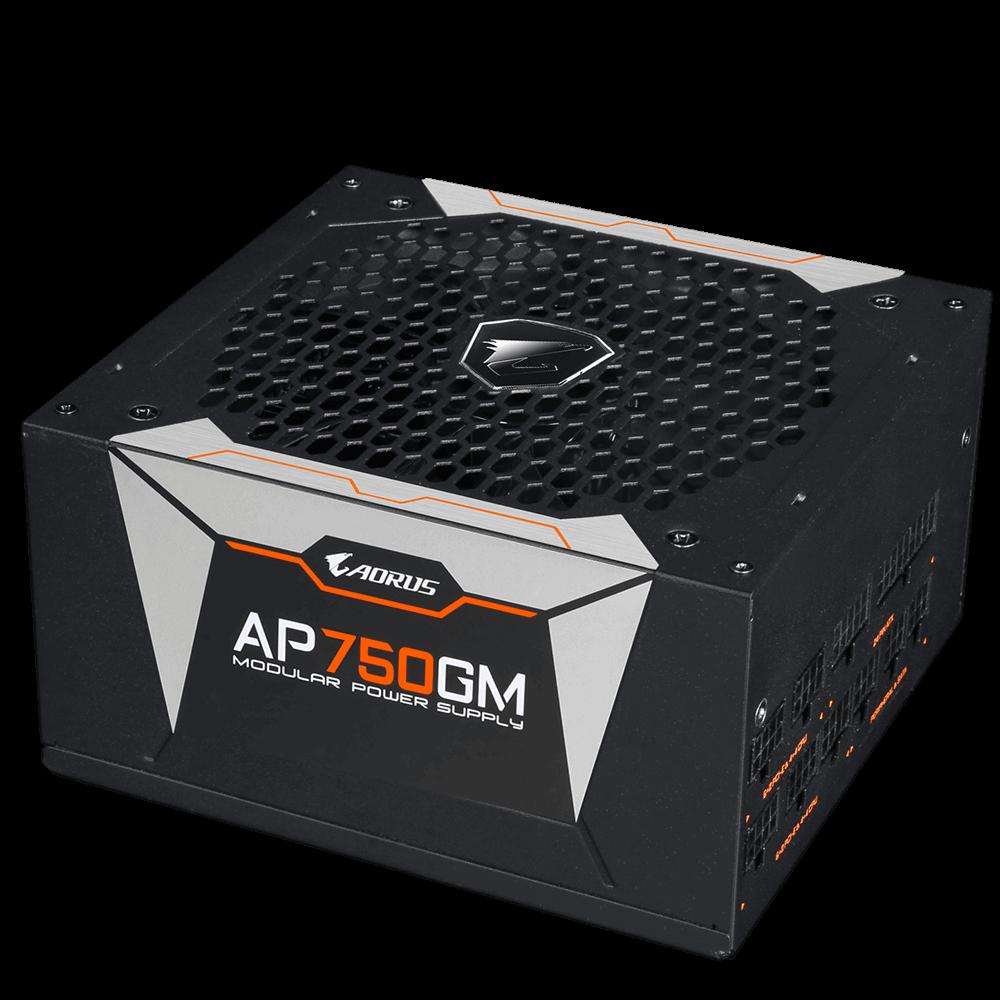

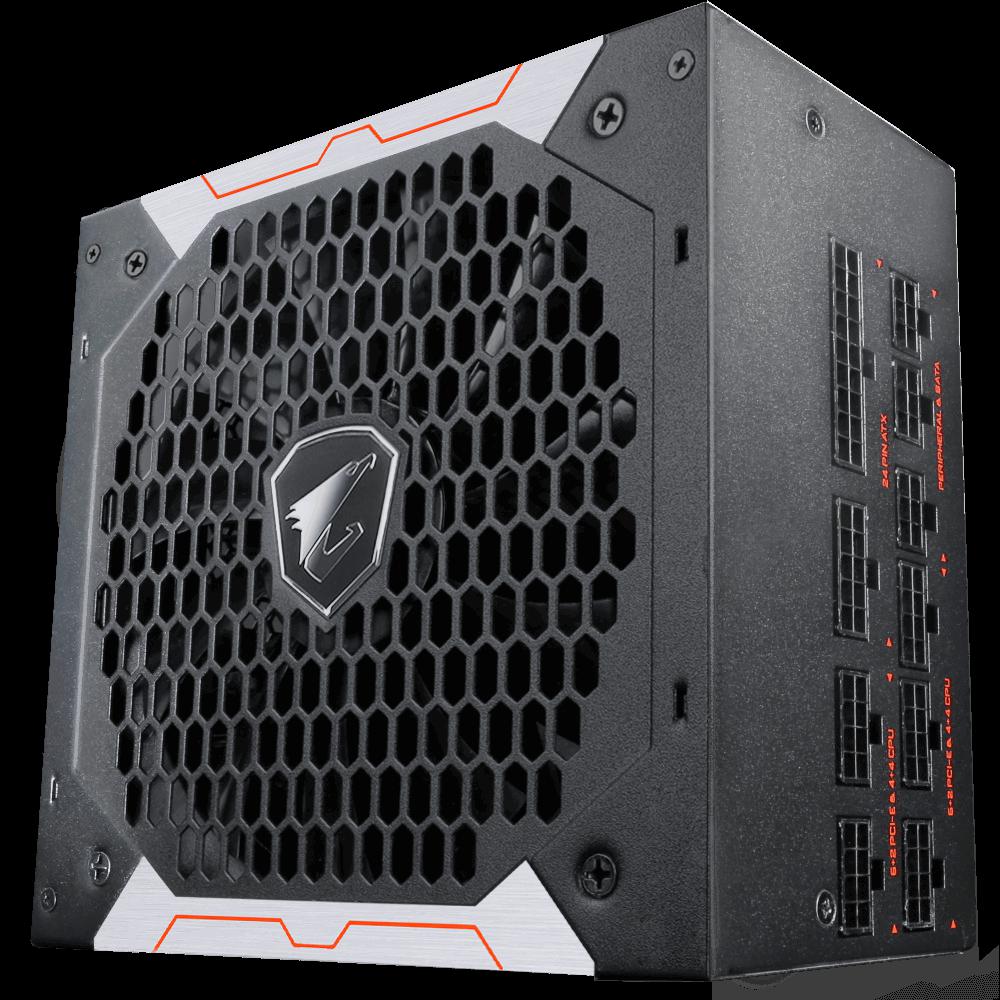

Sursa GIGABYTE GP-AP750GM, 80+ Gold, 750W

Name: Sursa GIGABYTE GP-AP750GM, 80+ Gold, 750W
Brand: GIGABYTE
SKU: GP-AP750GM-EU
Availability: OutOfStock

SKU: GP-AP750GM-EU

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

741,98 lei

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

I have read and accept the privacy policy

Compare

15 People watching this product now!

Pick up from the Woodmart Store

To pick up today

Free

Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

Warranty 1 year

More details

Free 30-Day returns

More details

Payment Methods:

Description

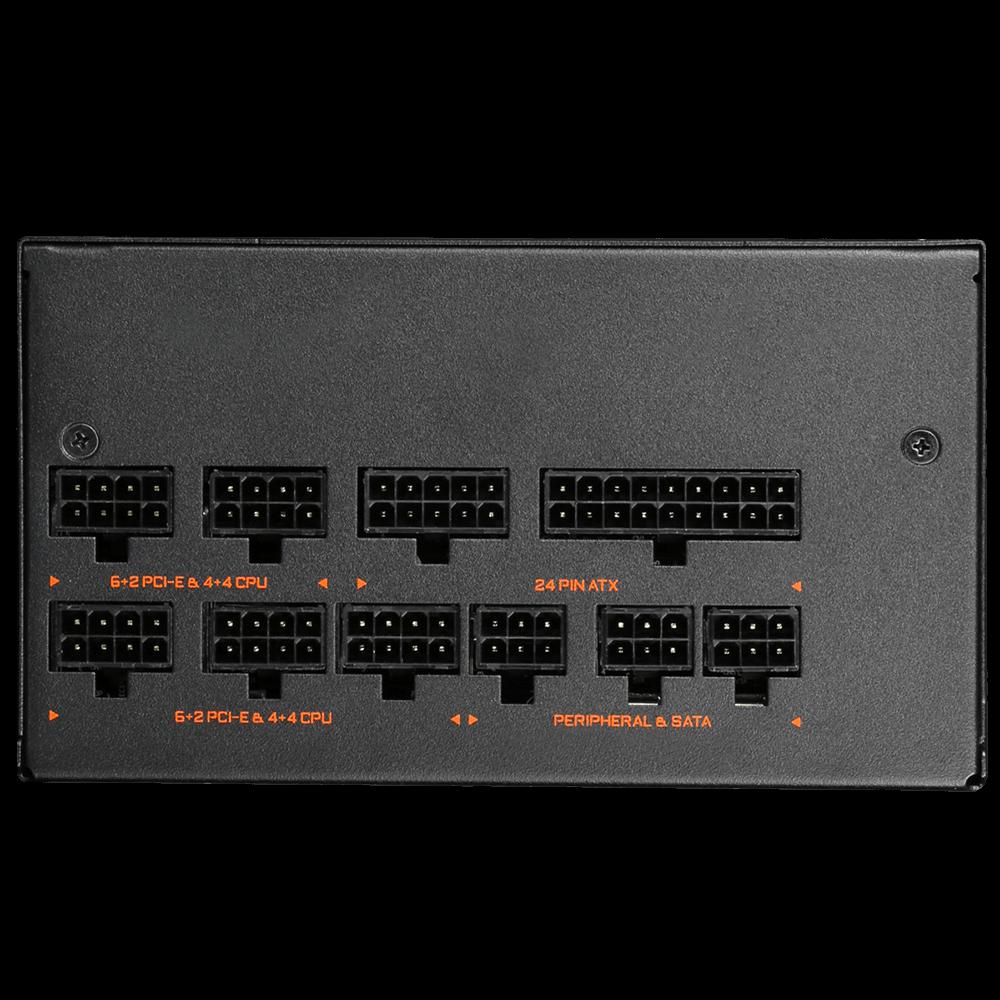

Toate cablurile au un design modular. Instaleaza doar cablurile de care ai nevoie pentru a reduce aglomerarea, cu scopul de a mari fluxul de aer, ceea ce va imbunatati performanta termica a carcasei.
Toate condensatoarele sunt japoneze, de inalta calitate, pentru a produce performante eficiente si pentru a asigura fiabilitatea mai lunga.

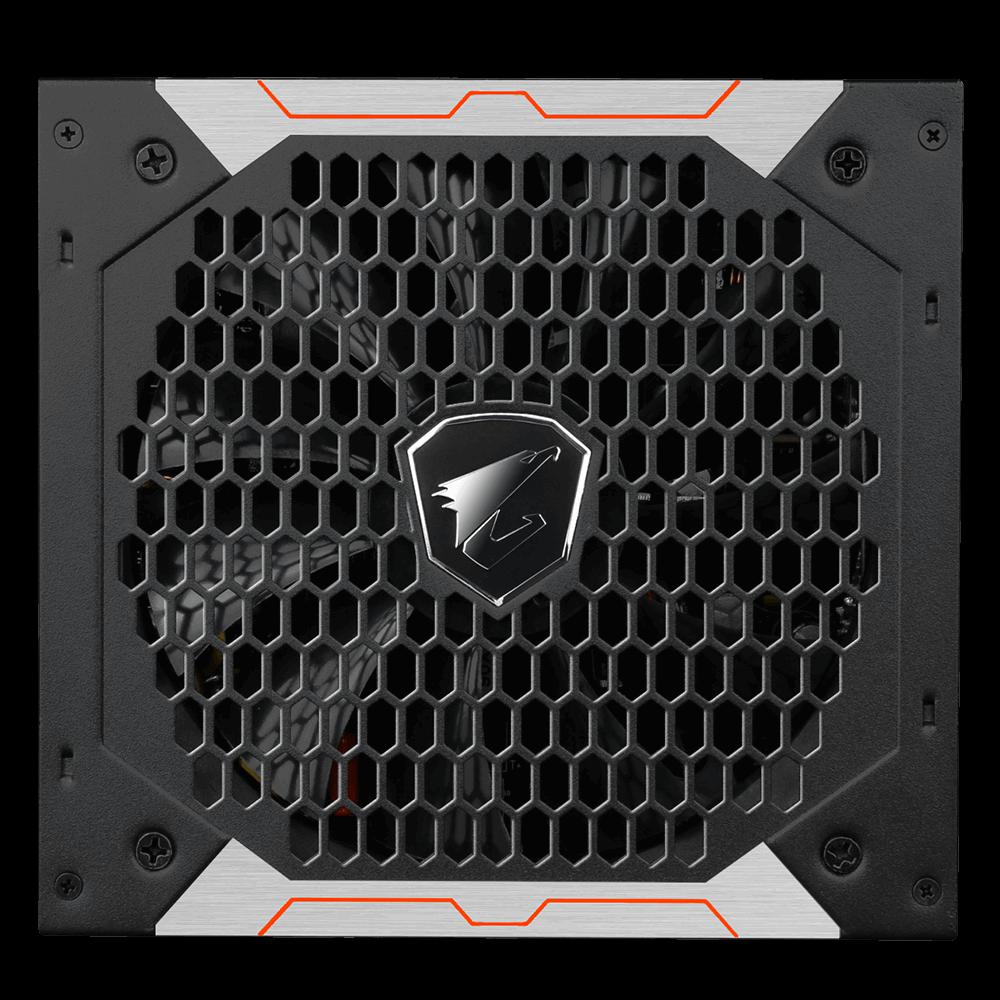

Viteza ventilatorului se va regla in functie de sarcina sistemului. Si ventilatorul se va opri atunci cand sistemul este inactiv sau sub sarcina mica (sub 20% incarcare). Structura cu 2 bile de rulment asigura o durata de viata mai lunga.

Specification

Overview

PSU Type	ATX
Number of fans	1 fan(s)
Purpose	PC
EPS power connector (8-pin)	Yes
Mean time between failures (MTBF)	100000 h
Conectivitate:	Full – Modular
Iluminare RGB	Nu
Certificare 80 Plus	80 PLUS Gold
Input current	10 A
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	6
CPU power connector (4+4 pin)	Yes
ATX power connector (20+4 pin)	Yes
PCI Express connector	Yes
Power supply unit (PSU) form factor	ATX
Fan location	Top
Total power	750 W
Combined power (+5Vsb)	15 W
Max output current (+5Vsb)	3 A
Cabling type	Fully-Modular
Power Factor Correction (PFC) type	Active
Max output current (+3.3V)	20 A
Max output current (+5V)	20 A
Floppy disk drive connector	Yes
80 PLUS certification	80 PLUS Gold
Efficiency	90%
Combined power (+12V)	744 W
Max output current (+12V)	62 A
Fan diameter	13.5 cm
Power factor	0.9
Hold time	16 ms
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
ATX version	2.31
Combined power (+3.3V)	120 W
Combined power (+5V)	120 W
PCI Express power connectors (6+2 pin)	6
Peripheral (Molex) power connectors (4-pin)	6
Power Good signal delay range	100 – 150 ms
Motherboard power cable length	65 cm
SATA power cable length	450,550,650,750 mm
Floppy drive power connector	2
PSU-Power	750 W
PFC	Active
Product colour	Black
Width	150 mm
Harmonized System (HS) code	84733020
Height	86 mm
On/off switch	Yes
AC input voltage	100 – 240 V
Depth	160 mm
Producator	GIGABYTE
Garantie	120
