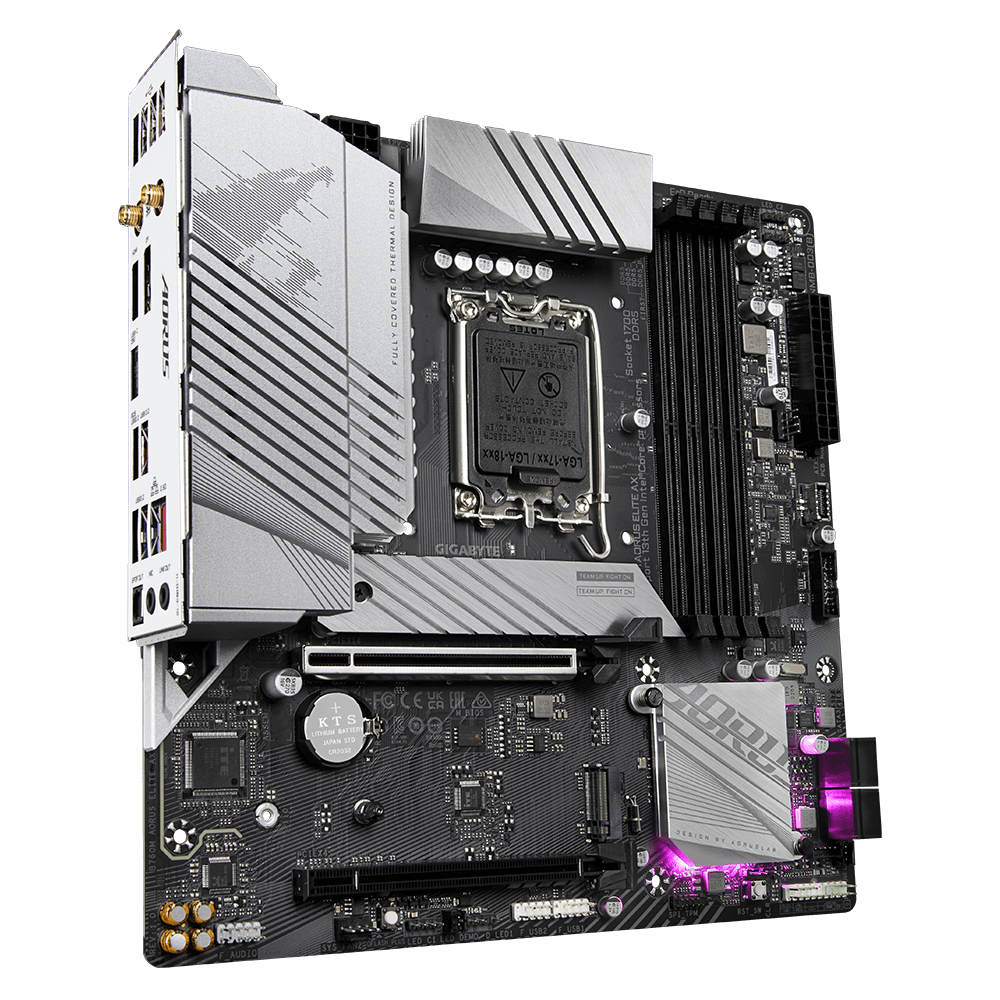

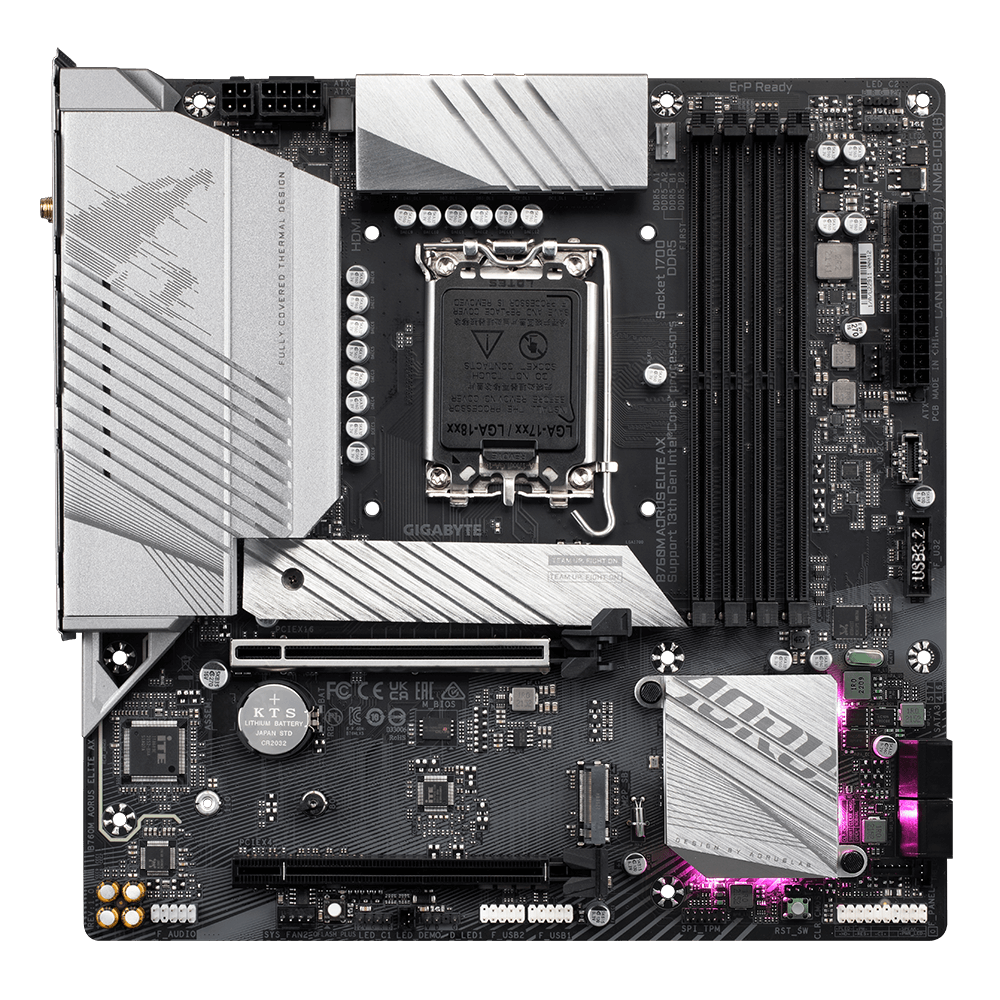

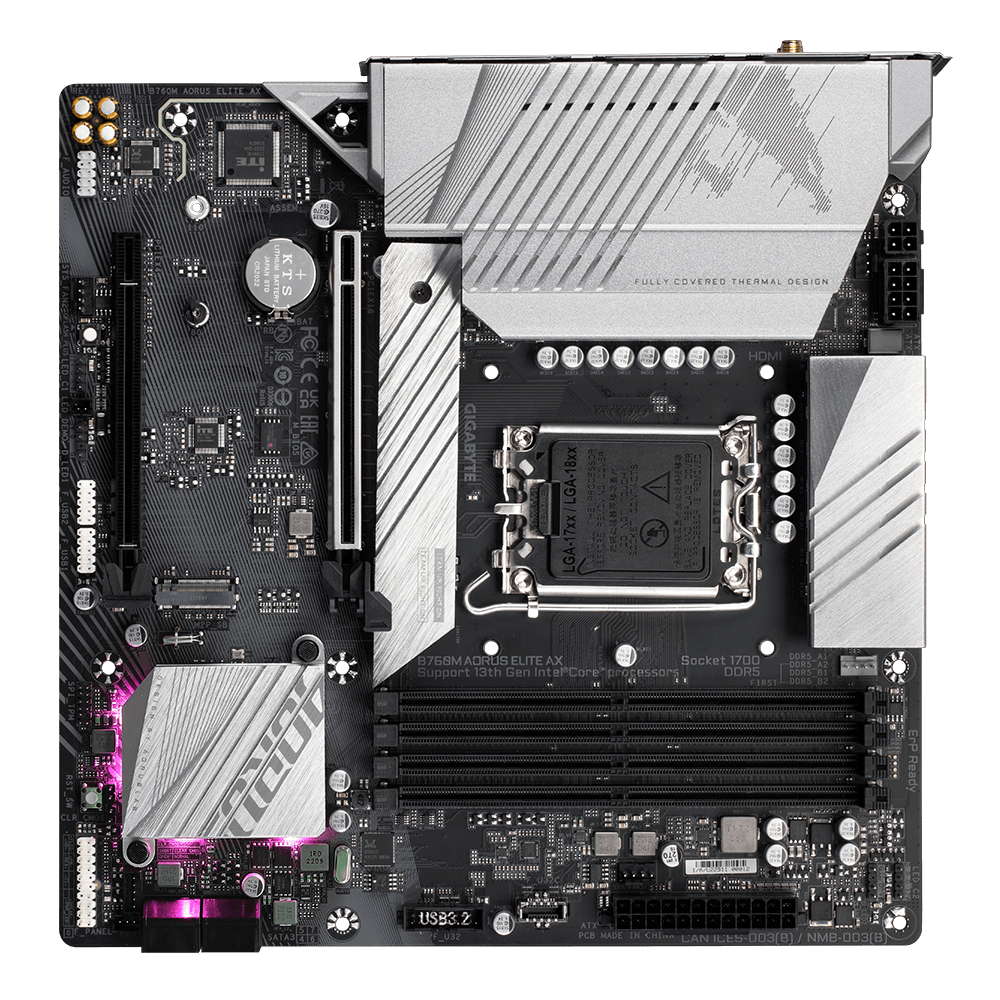

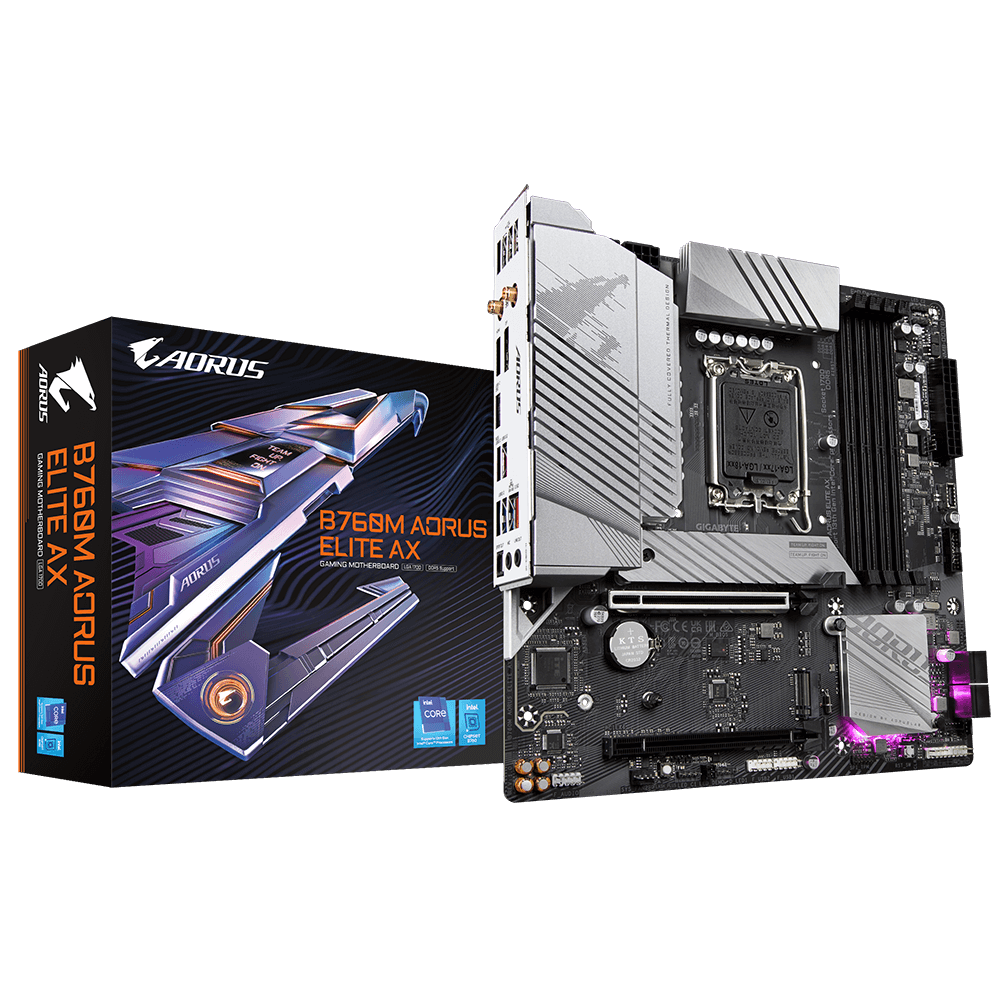

Placa de baza Gigabyte B760M AORUS ELITE AX, Socket 1700, DDR5, Micro-ATX

SKU: B760M A ELITE AX

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

1.211,98 lei

Out of stock

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

10 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Warranty 1 year
  • Free 30-Day returns

Payment Methods:

Description

Placa de baza Gigabyte B760M AORUS ELITE AX LGA1700, 4x sloturi RAM DDR5, max. 128GB, frecventa maxima suportata 7600MHz, 1x DisplayPort, 1x HDMI, 2x PCIe x16, 2x M.2, 4x conectori SATA 6GB/s, 1x LAN 1Gbps, WIFI 2.4Gbps, Bluetooth 5.3, microATX

Specification

Overview

PCI
Serial-or-ParalelNo/No
Video-ConnectionHDMI/DP
Wi-FIYes
Onboard-CPUNo
RAID supportYes
Component forPC
Windows operating systems supportedWindows 10, Windows 11
Processor manufacturerIntel
Top Wi-Fi standardWi-Fi 6E (802.11ax)
WLAN controller modelIntel Wi-Fi 6E AX211
Ethernet LANYes
HDMI ports quantity1
USB 3.2 Gen 2x2 Type-C ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
USB 2.0 ports quantity4
Audio output channels7.1 channels
PCI Express x16 (Gen 4.x) slots1
Supported storage drive typesHDD & SSD
Number of M.2 (M) slots2
HDCPYes
DisplayPorts quantity1
VGA (D-Sub) ports quantity
DVI-D ports quantity
DirectX version12.0
Parallel processing technology supportCrossFireX
Model ChipsetB760
GamingNu
Soclu ProcesorSocket 1700
Tip Memorie:DDR5
Numar sloturi memorie4
Memorie maxima128 GB
Tip slot interfata graficaPCIe 4.0 x16
Chipset audio integratRealtek
Canale audio7.1
WirelessDa
USB Type-CDa
HDMIDa
ThunderboltNu
Sloturi M.22
RJ-45 LAN1
Number of memory slots4
Memory slots typeDIMM
Unbuffered memoryYes
Supported storage drive interfacesM.2, SATA III
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors4
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
EPS power connector (8-pin)Yes
Motherboard form factormicro ATX
BIOS typeUEFI AMI
BIOS memory size256 Mbit
Clear CMOS jumperYes
Supported memory typesDDR5-SDRAM
Maximum internal memory256 GB
Number of HDDs supported4
RAID levels0, 1, 5, 10
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Front panel connectorYes
TPM connectorYes
RGB LED pin headerYes
WiFi-AP antenna jack2
Motherboard chipset familyIntel
PC health monitoringFan, Temperature, Voltage, Water cooling
2nd M.2 largest key size22110
2nd M.2 highest PCI Express generation4.0
ACPI version5.0
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7
Lithium weight per battery0.07 g
Processor socketLGA 1700
Supported processor socketsLGA 1700
Maximum internal memory supported by processor192 GB
Maximum resolution4096 x 2304 pixels
Total number of SATA connectors4
Thunderbolt headers2
ECC сompatibilityNon-ECC
Number of storage drives supported6
S/PDIF out connectorYes
Supported memory module capacities1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Motherboard chipsetIntel B760 Express
Bundled softwareNorton Internet Security
Peripheral (Molex) power connectors (4-pin)1
Number of chassis fan connectors3
1st M.2 largest key size2280
1st M.2 highest PCI Express generation4.0
Supported memory clock speeds4000,4800,5300,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800 MHz
Ethernet interface type2.5 Gigabit Ethernet, 5 Gigabit Ethernet
Microphone inYes
Headphone outputs1
BluetoothYes
Product colourBlack
Batteries includedYes
Bluetooth version5.3
Ethernet LAN (RJ-45) ports1
Height35 mm
Cables includedSATA
Width244 mm
Country of originChina
Package height68 mm
Power source typeATX
Battery weight3 g
Number of battery cells1
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032
Products per shipping (inner) case1 pc(s)
Package width270 mm
Package depth268 mm
Package weight1.77 kg
Depth24.4 mm
FormatMicro-ATX
ProducatorGIGABYTE
Garantie36
